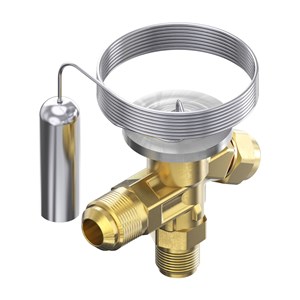

"Danfoss TX Valve TS2 R404A (MOP50)"
Item Number:
068Z3408
| Max Operating Pressure : | 34.0 Bar |
|---|---|
| Product Group : | Expansion Valves - Danfoss |
| Refrigerant : | R404A, R507A |
General Information
| Approval : | EAC, LLC CDC TYSK |
|---|---|
| Model Number : | 068Z3408 |
| Product Group : | Expansion Valves - Danfoss |
| Type : | T 2 |
Additional Info
| Family : | T2 |
|---|
Connections
| Inlet Connection Size : | 3/8 in |
|---|---|
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/2 in |
| Outlet Type : | Flare |
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702422125150 |
| Gross Weight : | 0.314 kg |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Brass |
Measurements
| Capillary Tube Length : | 59.0 in, 1500 mm |
|---|---|
| Net Weight : | 0.28 kg |
| Weight : | 0.28 kg |
Pressure
| Max Operating Pressure : | 34.0 Bar |
|---|---|
| Pressure Equalization : | Internal |
Refrigerant
| Refrigerant : | R404A, R507A |
|---|
Temperature
| Max Temperature : | -15 °C |
|---|---|
| Min Temperature : | -40 °C |
| Static Superheat : | 4 °C |
| Superheat Setting : | Adjustable |
| Temperature Range : | -40--15 °C |
Valves
| Direction : | Angleway |
|---|---|
| Flow Direction : | Single-flow |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 2 |
| MOP : | -10 °C |
| MOPD : | 34 Bar |
Product information
Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.
- Large temperature range
- Equally applicable to freezing, refrigeration and air conditioning applications.
- Interchangeable orifice assembly
- easy storage
- easy capacity matching
- better service.
- easy cleaning and replacement of filter
- Rated capacities from 1 to 20.5 kW / 0.3 to 5.8 TR for R407C
- Can be supplied with MOP (Max. Operating Pressure).
- Protects the compressor motor against excessive evaporating pressure during normal operation
- Stainless steel bulb and Danfoss patented bulb strap
- Fast and easy to install
- Good temperature transfer from pipe to bulb
- Design protected
