Description

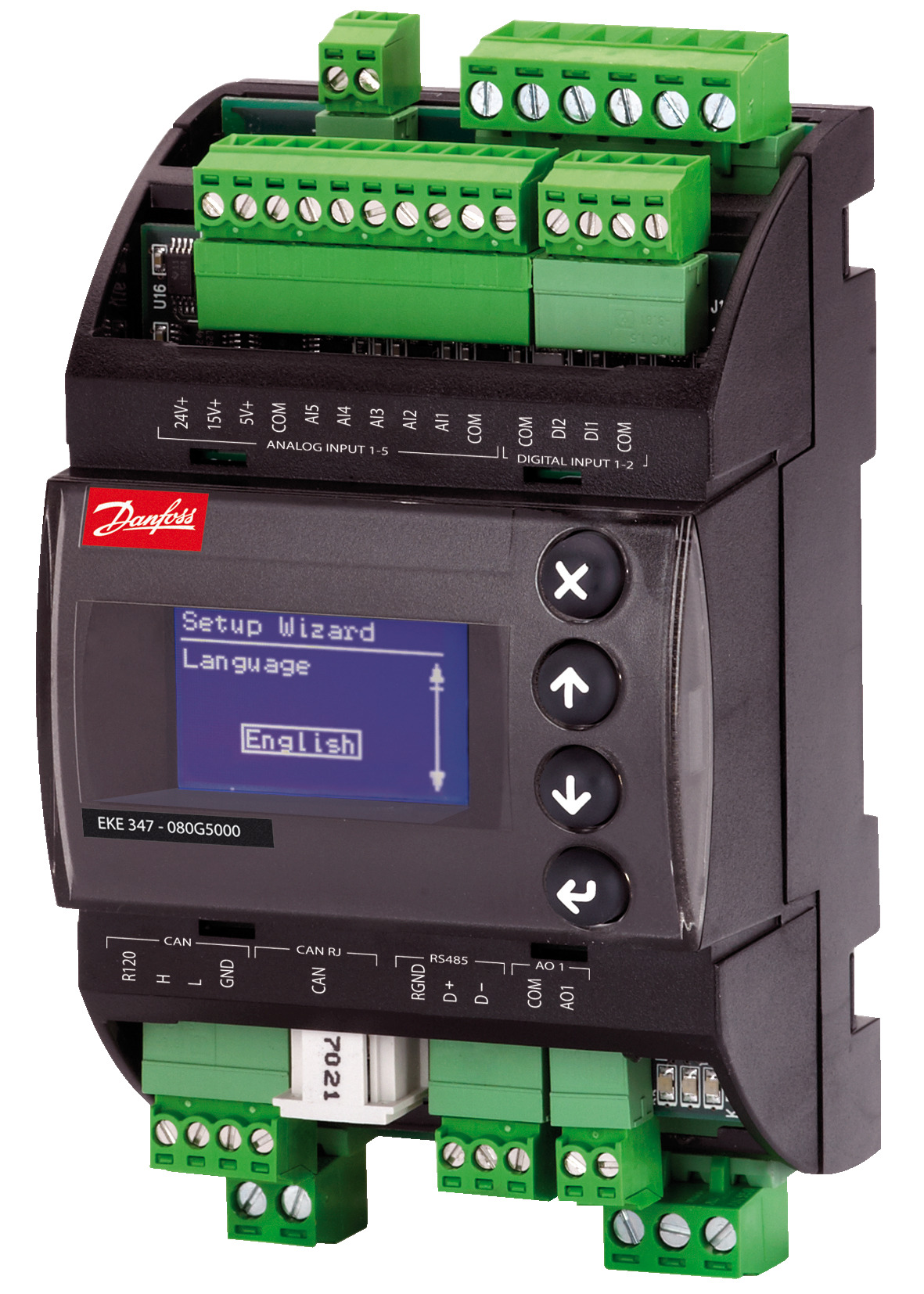

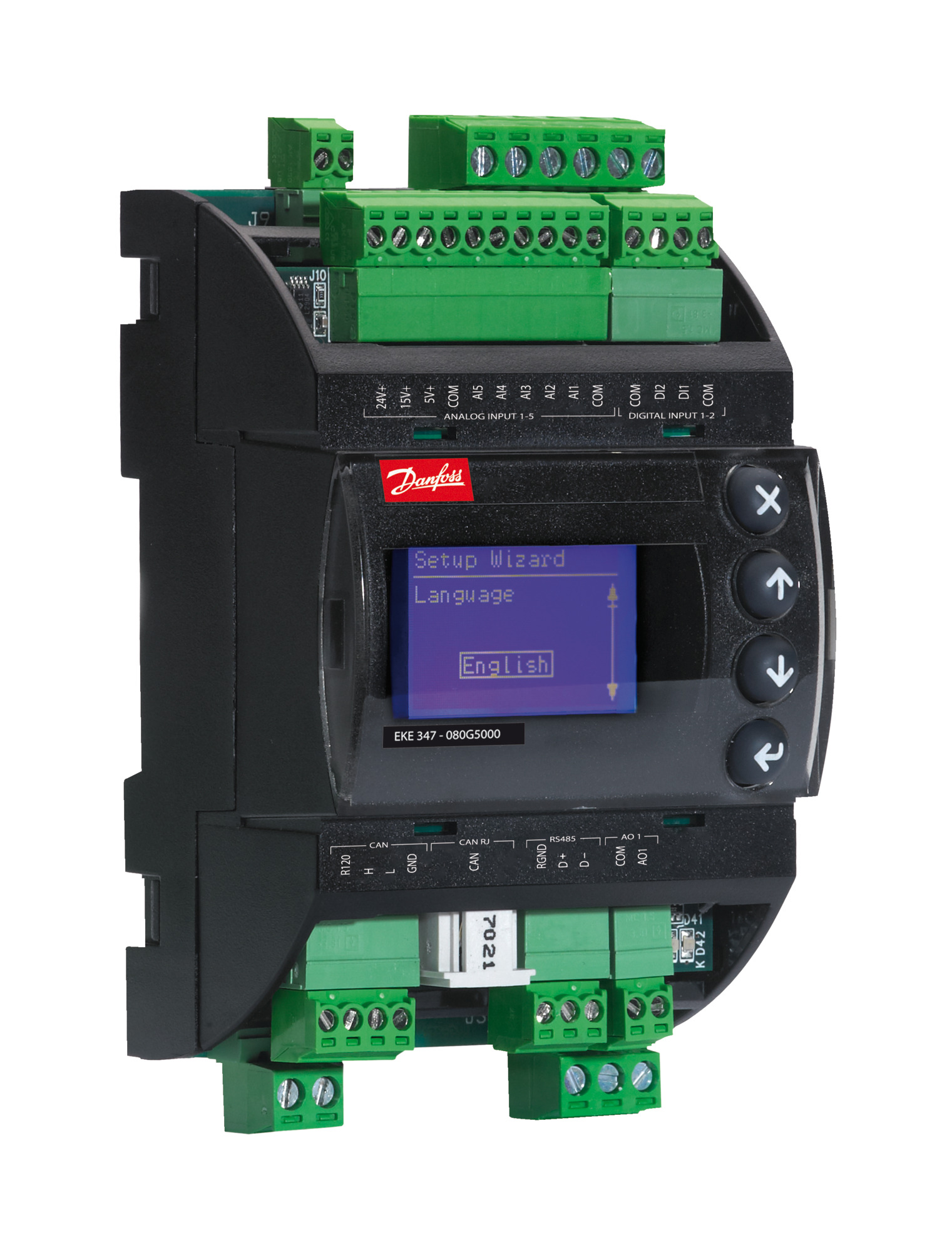

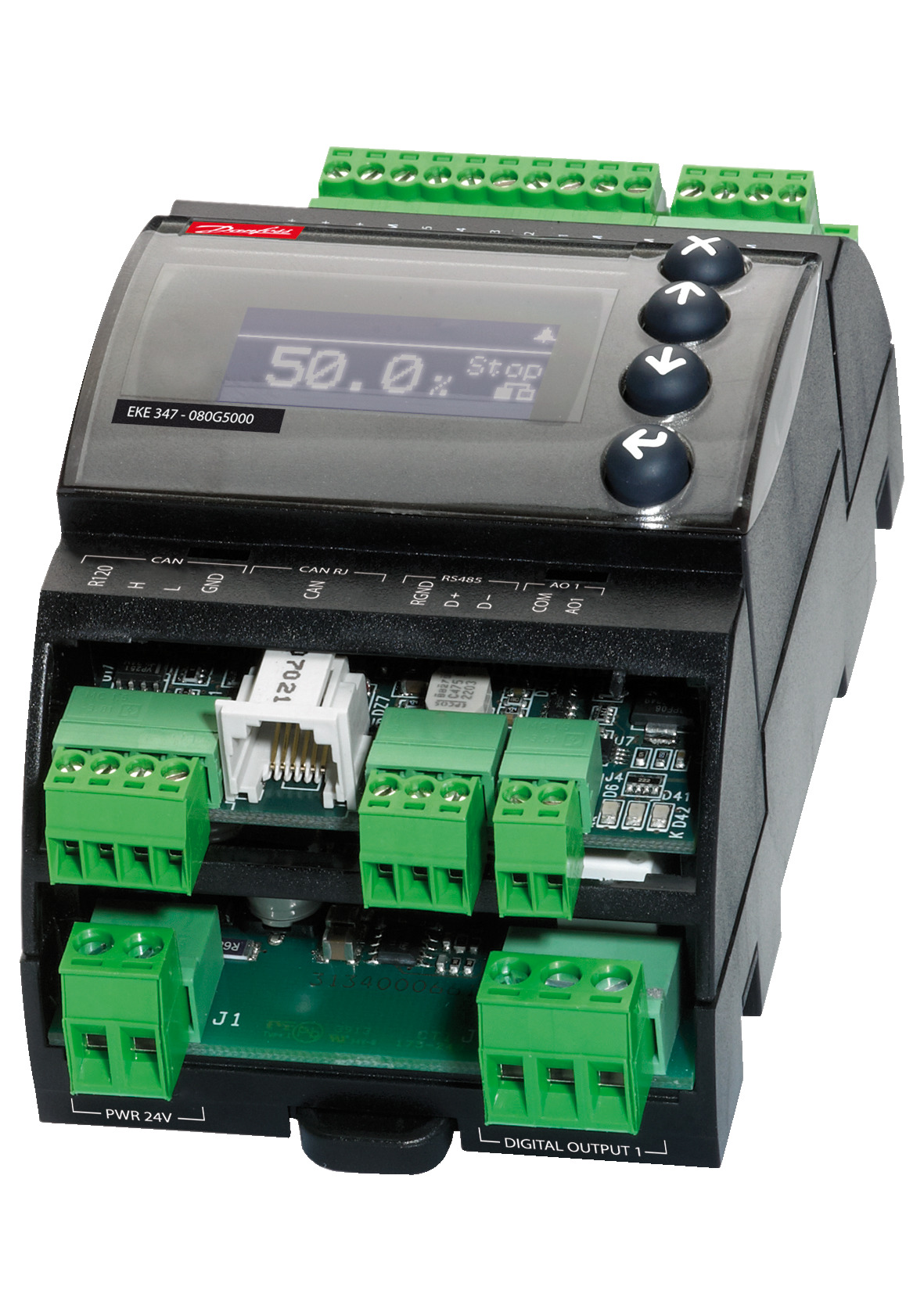

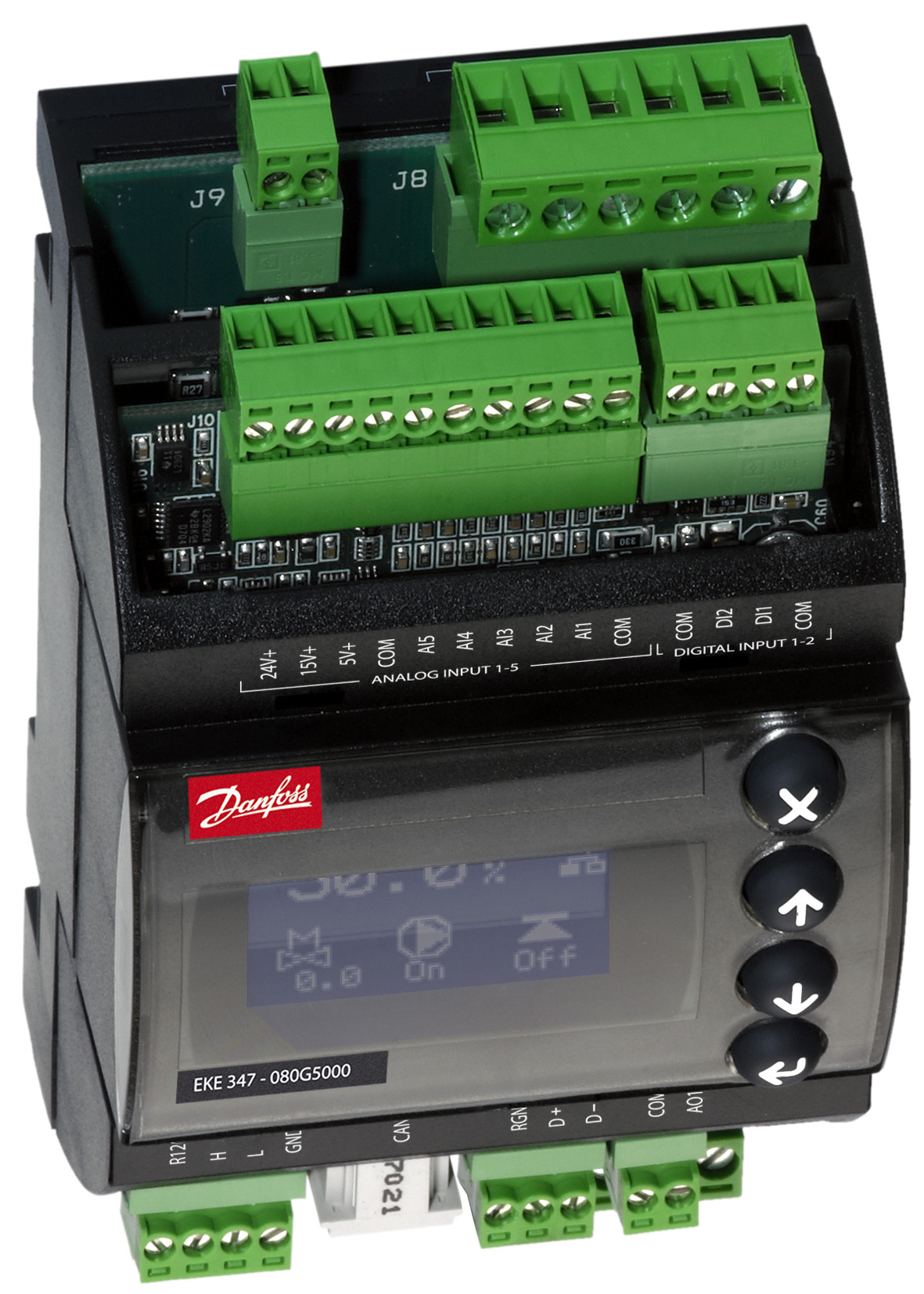

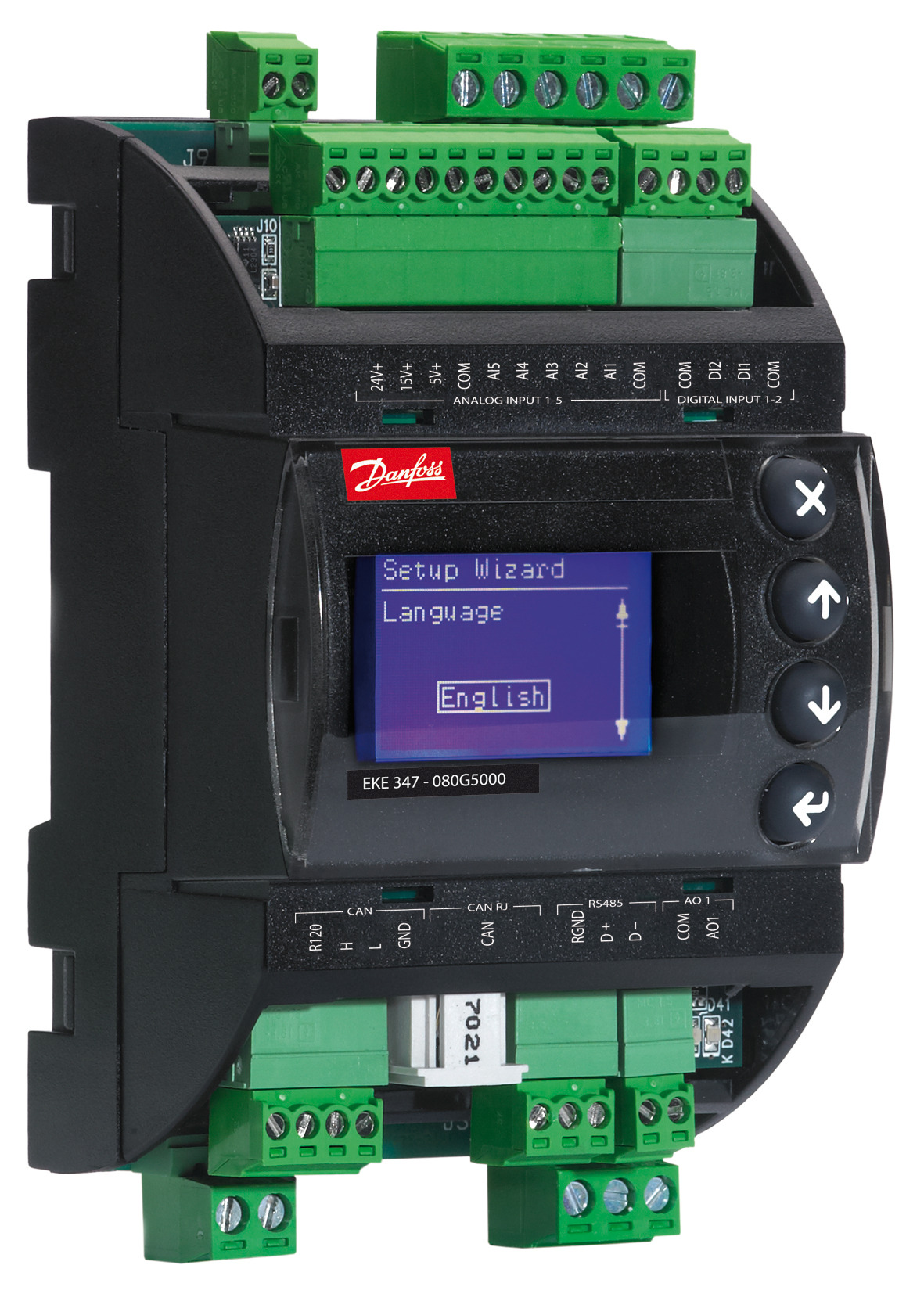

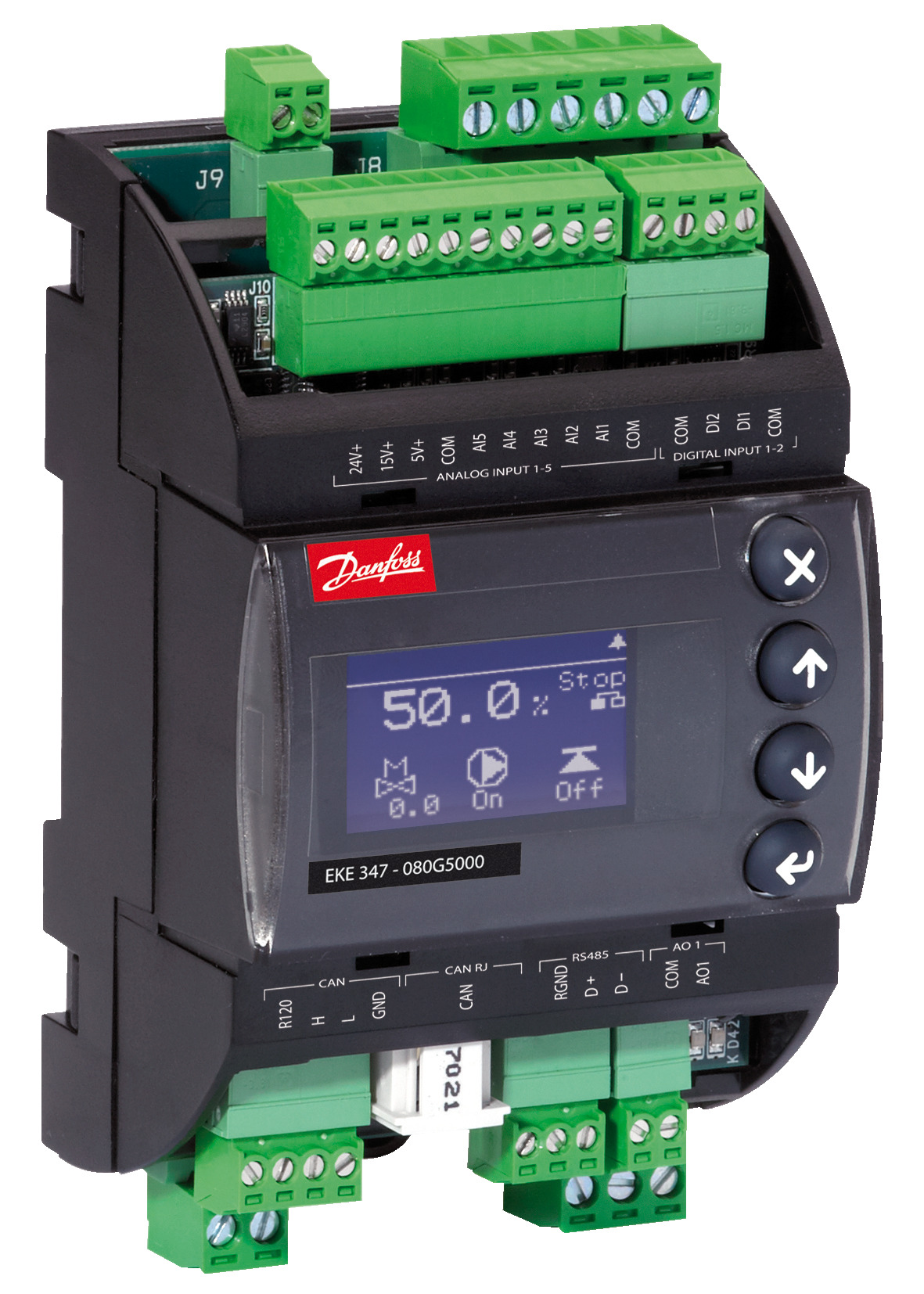

EKE 347 Liquid level controller
Danfoss EKC347
Product number:
080G5000
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Additional Info : | 3 SPDT relays, 1 SolidState |
|---|
Display
| Display On Front : | Yes | Display Option : | MMIGRS2 |
|---|
Electrical
| Frequency : | 50/60 Hz |
|---|
Features
| Product Features : | Bus communication, LCD display built in, Multi-language user interface, Quick setup, Remote display option, SPDT relays |
|---|
Inputs/Outputs
| Digital Inputs (DI) : | 2 pc | Digital Outputs (DO) : | 3 pc |
|---|
Logistical Information
| Commodity Code : | 85371010 | Country Of Origin : | SVK |
|---|---|---|---|
| EAN : | 5702428877077 | Gross Weight : | 0.378 kg |

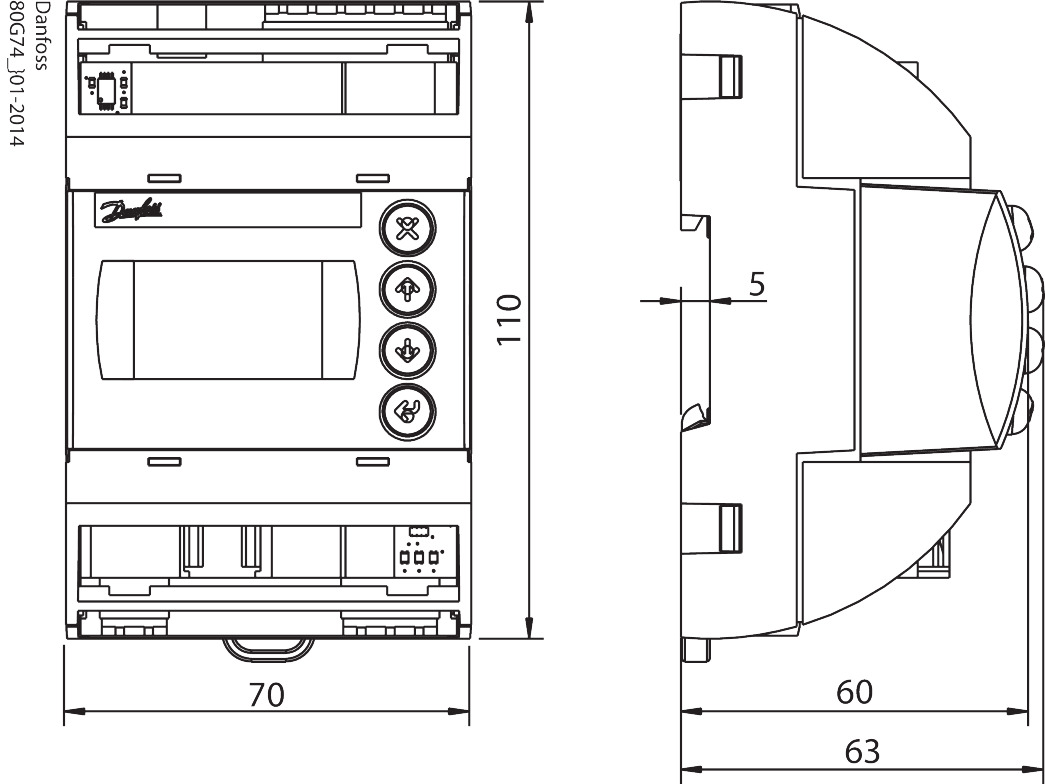

Measurements
| Weight : | 0.19 kg |
|---|
Mounting
| Mounting Details : | DIN rail |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK, UKCA, UL |
|---|
Valves
| Valve Output Type : | AKV; AKVA; ICM (+ICAD) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| liquid-level-controller-type-eke-347-ast-an15858642042401-000401.pdf | Installation Manual | 7.68 MB | |
| brochure-danfoss-eke-347-liquid-level-controller-sales-brochure-en-ast-ad154286421081en-000201.pdf | Brochures | 698.02 KB | |
| liquid-level-controller-type-eke-347-ast-ai190286434038en-000502.pdf | Technical Literature | 23.52 MB | |
| manufacturer-s-declaration-danfoss-md-080r1247-00-ast-id399448221302-0101.pdf | Conformity Declaration | 387.17 KB | |
| manufacturer-s-declaration-danfoss-md-080r1248-00-ast-id399447853301-0101.pdf | Conformity Declaration | 321.38 KB | |
| eu-declaration-danfoss-eu-080r4000-02-ast-id365935425464-0101.pdf | Conformity Declaration | 1.63 MB | |
| manufacturer-s-declaration-danfoss-md-080r4002-01-ast-id365946728642-0101.pdf | Conformity Declaration | 407.48 KB |
