Description

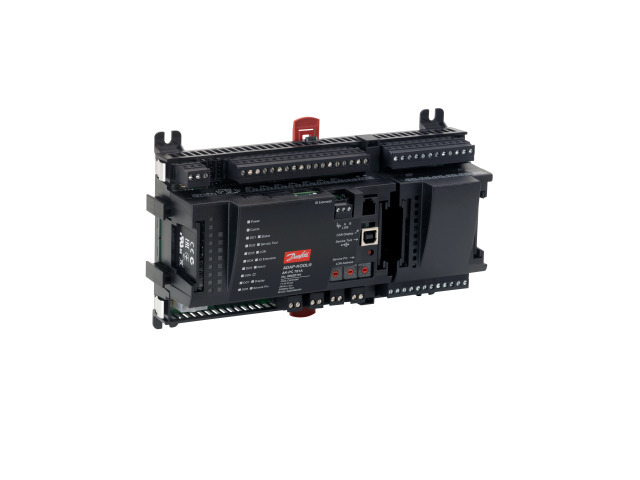

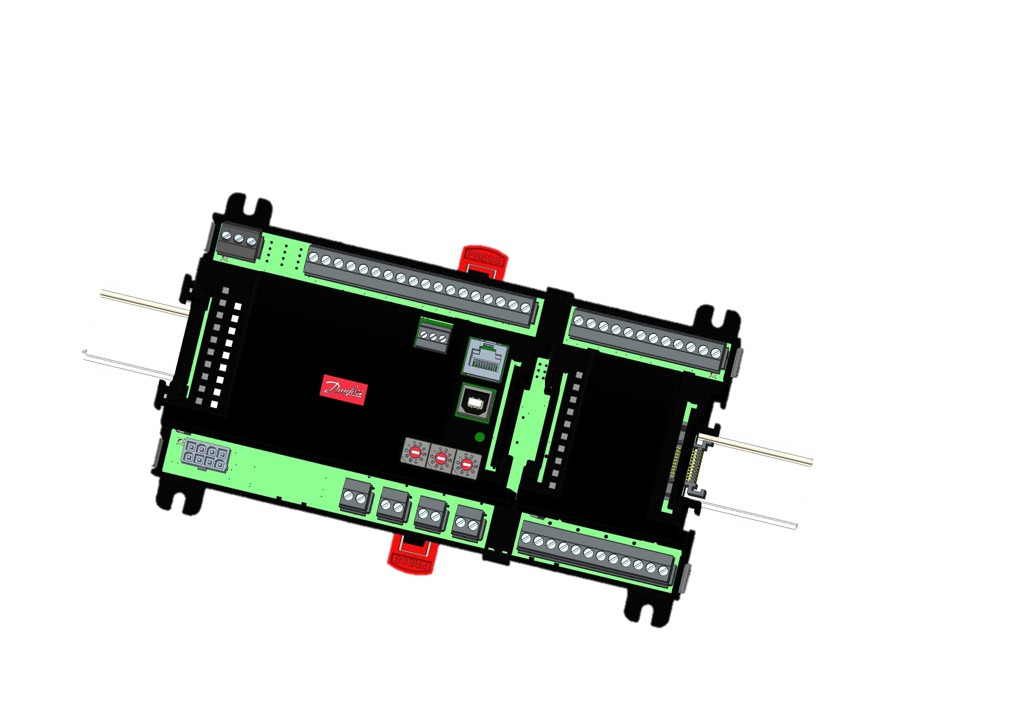

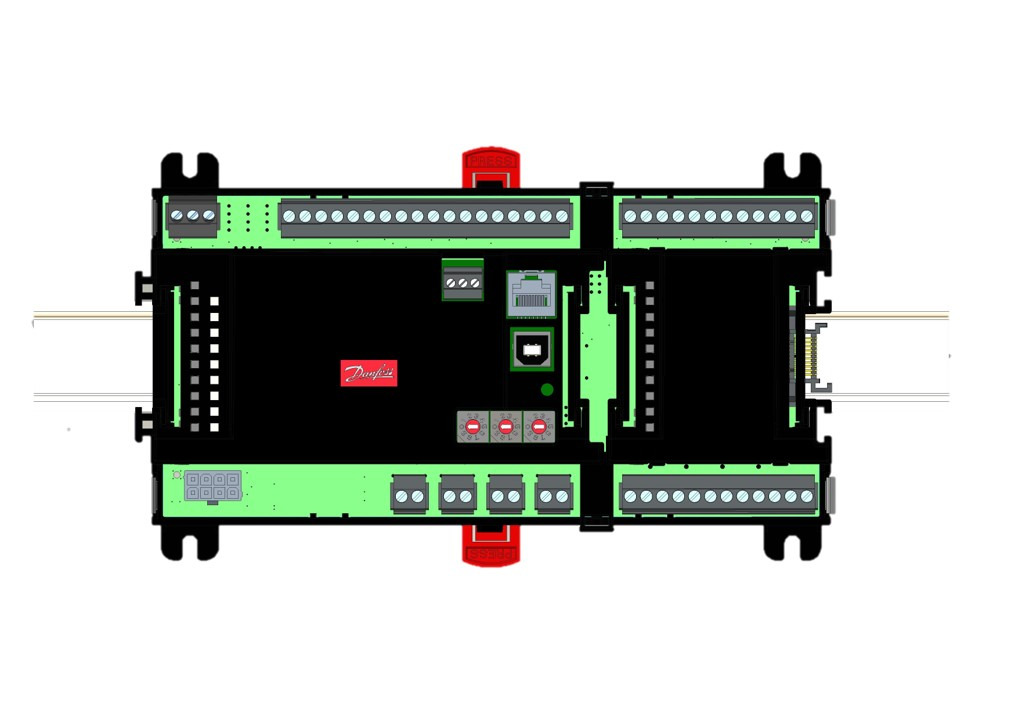

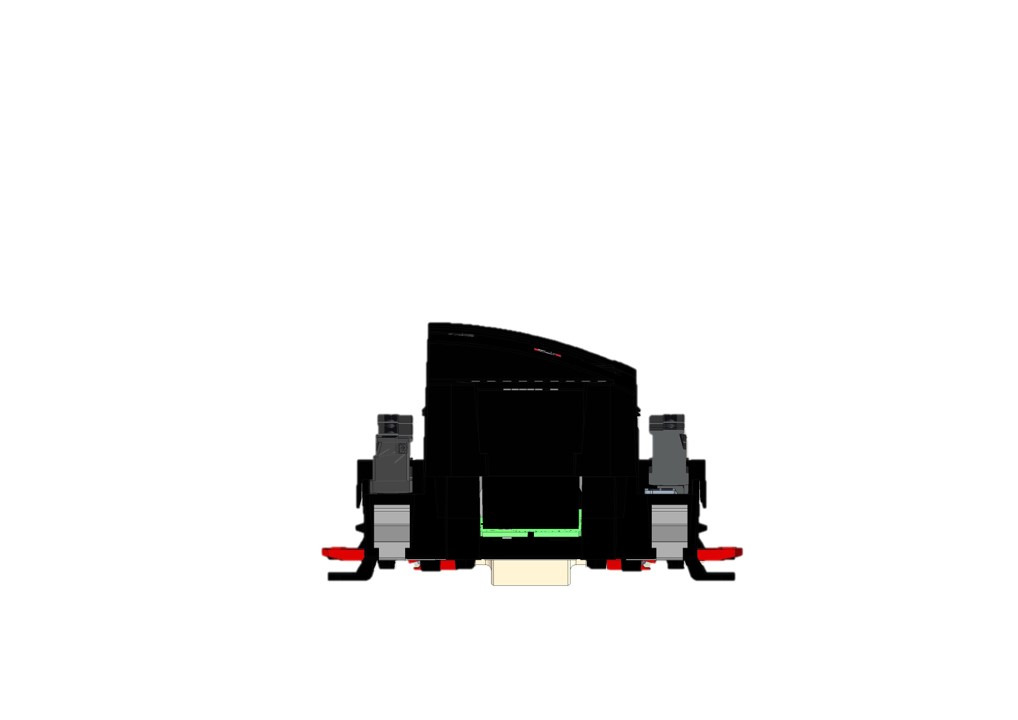

AK-PC 781A, Pack Controller
AK-PC 781A Pack Controller
Product number:
080Z0191
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Additional Info : | Transcri.,Speed,CO2,HP,Oil,HR | Family : | AK-PC |
|---|
Alarm
| Additional Alarm Inputs Max : | 10 pcs |
|---|
Condenser
| Condenser Control Type : | Pressure/ Temperature |
|---|
Display
| Display On Front : | No | Display Option : | EKA 163B; EKA 164B; EKA 166; MMIGRS2 |
|---|
Electrical
| Frequency : | 50/60 Hz | IP Class : | IP10 |
|---|---|---|---|
| Voltage : | 24 V |
Energy Efficiency/Performance
| Energy Consumption : | 8 VA |
|---|
Fan
| Fan Capacity Control : | Step/ Speed | Fan Control Mode : | PI |
|---|
Features
| Product Features : | CO2 compliant, Condenser error monitoring, External comm. included, Floating condenser pressure, Heat recovery function, Load shedding, Night setback, P0 optimization, Pump control, Three way valve control |
|---|
General Information
| Controller Type : | Pack Controller | Function : | Pack w. Heat Reclaim |
|---|---|---|---|
| Model Number : | 080Z0191 |
Inputs/Outputs
| Additional Analog Inputs Max : | 5 pcs | Additional Pressure Switches Inputs Max : | 5 pcs |
|---|---|---|---|
| Additional Thermostats Inputs Max : | 5 pcs | Capacity Control Input : | Pressure/ Temperature |
| Capacity Control Mode : | PI | Digital Outputs (DO) : | 8 pc |
| I/O Connectors Max : | 120 pcs | Max Number of Compressors : | 10 pcs |
| Max Number of Extension Modules : | 11 pcs | Max Number of Fans : | 8 pcs |
Logistical Information
| Commodity Code : | 85371010 | Country Of Origin : | SVK |
|---|---|---|---|
| EAN : | 5702428930550 | Gross Weight : | 0.95 kg |
Measurements
| Net Weight : | 0.65 kg | Weight : | 0.65 kg |
|---|
Standards
| Approval : | C-TICK, CE, EAC, LLC CDC TYSK, cURus |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eu-uk-declaration-danfoss-eu-uk-080r1206-05-ast-id365935400444-0301.pdf | Conformity Declaration | 686.39 KB | |
| manufacturer-s-declaration-danfoss-md-080r1237-01-ast-id399450575313-0201.pdf | Conformity Declaration | 502.79 KB | |
| manufacturer-s-declaration-danfoss-md-uk-080r1228-04-ast-id365946724639-0301.pdf | Conformity Declaration | 434.79 KB | |
| brochure-overview-brochure-pack-controllers-en-ast-ad000086434187en-000305.pdf | Brochures | 2.66 MB | |
| manufacturer-s-declaration-danfoss-md-080r1221-02-ast-id365946723638-0201.pdf | Conformity Declaration | 464.63 KB |
