Description

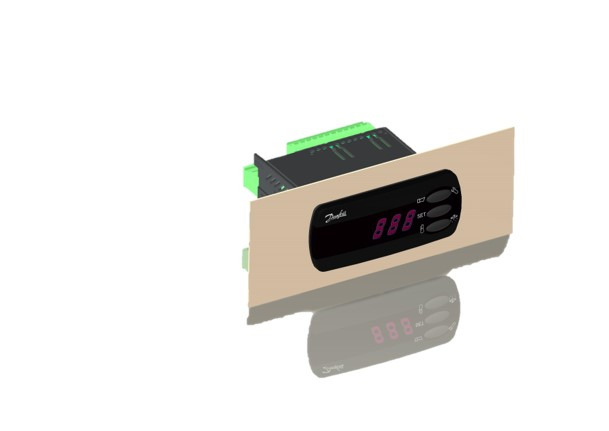

AK-CC 250A Ref.Controller,Pt/PTC,M-Pack
AK-CC 250,Ref. Contr, M-Pack
Product number:
084B8528
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Additional Info : | Multipurpose,Datacom. built-in |
|---|
Display
| Display On Front : | Yes |
|---|
Electrical
| Frequency : | 50/60 Hz | Voltage : | 230 V |
|---|
General Information
| Controller Type : | Refrig. Controller (Temp) | Function : | Temp, Multi appli., 4 relays |
|---|---|---|---|
| Model Number : | 084B8528 |
Inputs/Outputs
| Max Number of Compressors : | 2 pcs | Max Number of Evaporators : | 1 pcs |
|---|
Logistical Information
| Commodity Code : | 85371010 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428433877 | Gross Weight : | 0.25 kg |
Measurements
| Weight : | 0.22 kg |
|---|
Standards
| Approval : | C-TICK, CE, Intertek Semco, cURus |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-080r1237-01-ast-id399450575313-0201.pdf | Conformity Declaration | 502.79 KB | |
| eu-uk-declaration-danfoss-eu-uk-084r0835-ab-ast-id365935428466-0301.pdf | Conformity Declaration | 771.74 KB | |
| manufacturer-s-declaration-danfoss-md-uk-080r1228-04-ast-id365946724639-0301.pdf | Conformity Declaration | 434.79 KB | |
| instructions-akcc-250a-ast-an112486427656en-000301.pdf | Installation Manual | 973.27 KB | |
| manufacturer-s-declaration-danfoss-md-080r1221-02-ast-id365946723638-0201.pdf | Conformity Declaration | 464.63 KB | |
| manufacturer-s-declaration-danfoss-md-084r0812-01-ast-id365946729643-0101.pdf | Conformity Declaration | 316.63 KB |

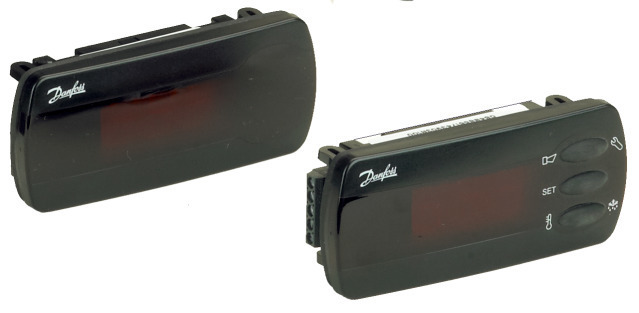

Accessory
Product Number: 084B8563
Manufacturer Code: 084B8563
