Description

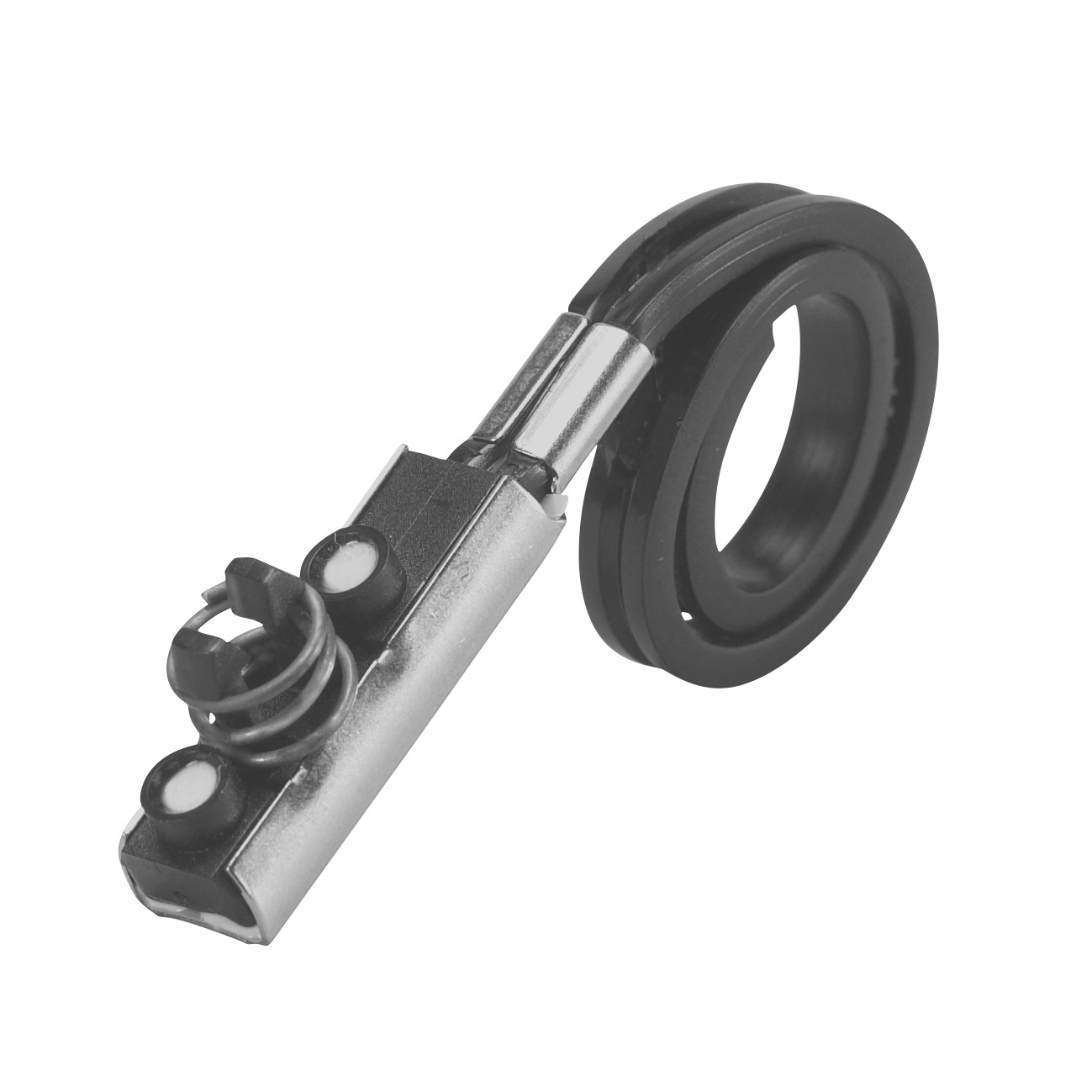

Sensor AKS 11 3.5m
AKS11 Temp Probe with Connecter 3.5m
Product number:
084N0003
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Family : | AKS |
|---|
Cable
| Cable Length : | 3.50 m, 137.80 in | Cable Temperature Range : | -40-100 °C |
|---|
Connections
| Connection Type : | 2 wire |
|---|
Electrical
| Electric Connection : | Cable | IP Class : | IP67 |
|---|
General Information
| Measuring Range : | -40-100 °C | Model Number : | 084N0003 |
|---|---|---|---|
| Type : | AKS 11 |
Logistical Information
| Commodity Code : | 90251900 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702422000532 | Gross Weight : | 0.078 kg |
Measurements
| Net Weight : | 0.08 kg | Weight : | 0.07 kg |
|---|
Sensors
| Sensor Element Resistance : | 1000 Ohm | Sensor Element Tolerance : | Class B |
|---|---|---|---|
| Sensor Element Type : | Pt |
Temperature
| Max Ambient Temperature : | 100 °C | Max Sensor Temperature : | 100 °C |
|---|---|---|---|
| Min Sensor Temperature : | -50 °C | Temperature Range : | -50-100 °C |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| instruction-for-aks-11-ast-an00008641265900-000401.pdf | Installation Manual | 211.1 KB | |
| aks-11-temperature-sensor-ast-ai305635900825en-000601.pdf | Technical Literature | 218.11 KB | |
| manufacturer-s-declaration-danfoss-md-084r1022-01-ast-id365946733646-0101.pdf | Conformity Declaration | 400.12 KB | |
| manufacturer-s-declaration-danfoss-md-097r0004-01-ast-id365946731644-0101.pdf | Conformity Declaration | 427.1 KB |
