Description

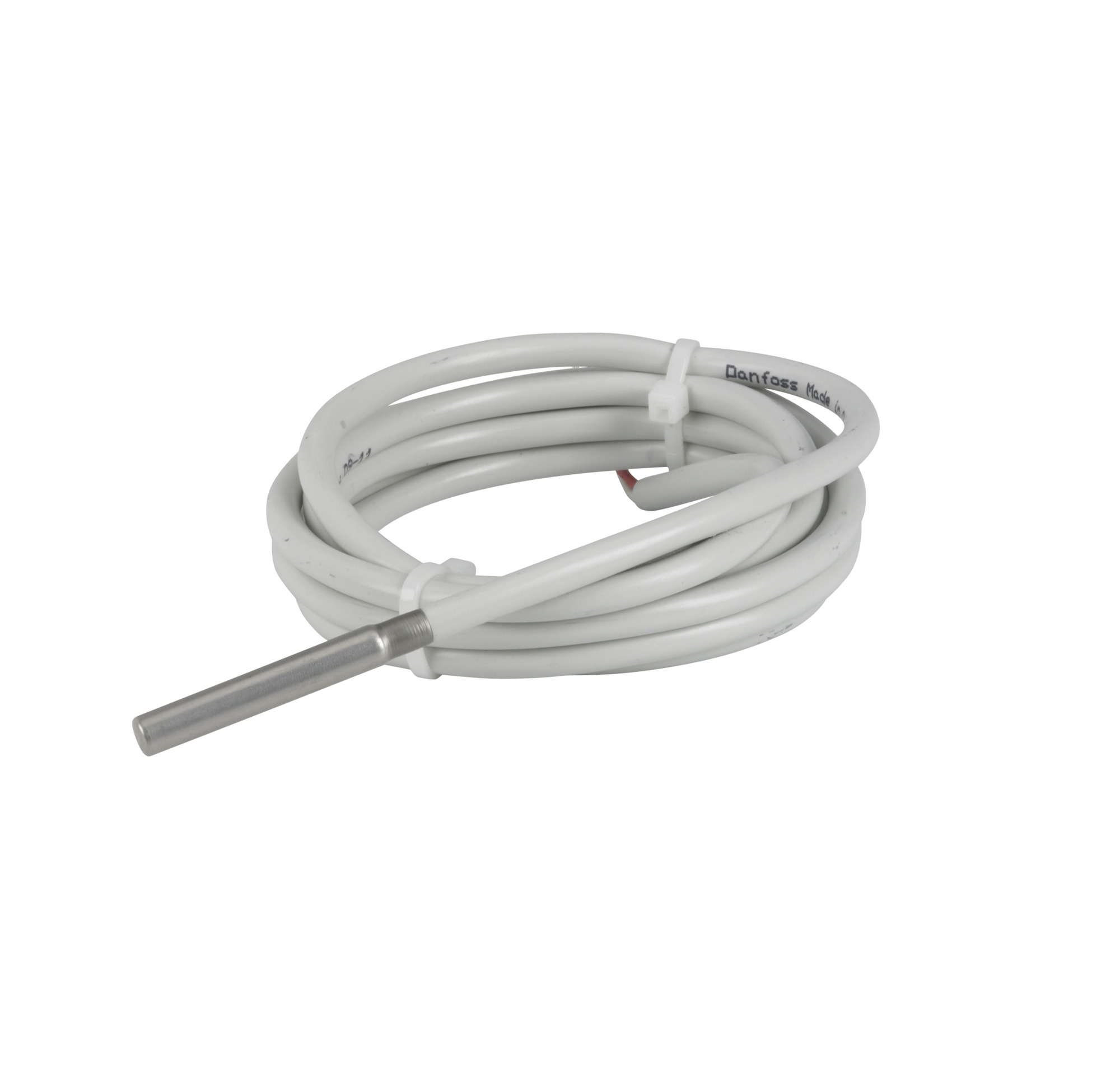

Sensor AKS 12 1.5m PT1000
Temperature sensor, AKS 12, 1.50 m, Pt, 1000 Ohm
Product number:
084N0036
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Family : | AKS |
|---|
Cable
| Cable Length : | 1.50 m, 59.06 in | Cable Temperature Range : | -40-100 °C |
|---|
Electrical
| Electric Connection : | Cable | IP Class : | IP67 |
|---|
General Information
| Measuring Range : | -40-80 °C | Model Number : | 084N0036 |
|---|---|---|---|
| Type : | AKS 12 |
Logistical Information
| Commodity Code : | 90251900 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702423134342 | Gross Weight : | 0.052 kg |
Measurements
| Weight : | 0.05 kg |
|---|
Sensors
| Protection Tube Diameter : | 0.23 in, 5.8 mm | Protection Tube Length : | 1.58 in, 40.0 mm |
|---|---|---|---|
| Protection Tube Material : | Stainless Steel | Sensor Element Resistance : | 1000 Ohm |
| Sensor Element Tolerance : | Class B | Sensor Element Type : | Pt |
| Sensor Insert : | Fixed |
Temperature
| Max Ambient Temperature : | 100 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| aks-12-temperature-sensor-ast-ai201986428431en-000301.pdf | Technical Literature | 196.04 KB | |
| manufacturer-s-declaration-danfoss-md-084r1022-01-ast-id365946733646-0101.pdf | Conformity Declaration | 400.12 KB | |
| manufacturer-s-declaration-danfoss-md-097r0004-01-ast-id365946731644-0101.pdf | Conformity Declaration | 427.1 KB |
