Description
AKS 21 A -70 TIL 160 GR.C

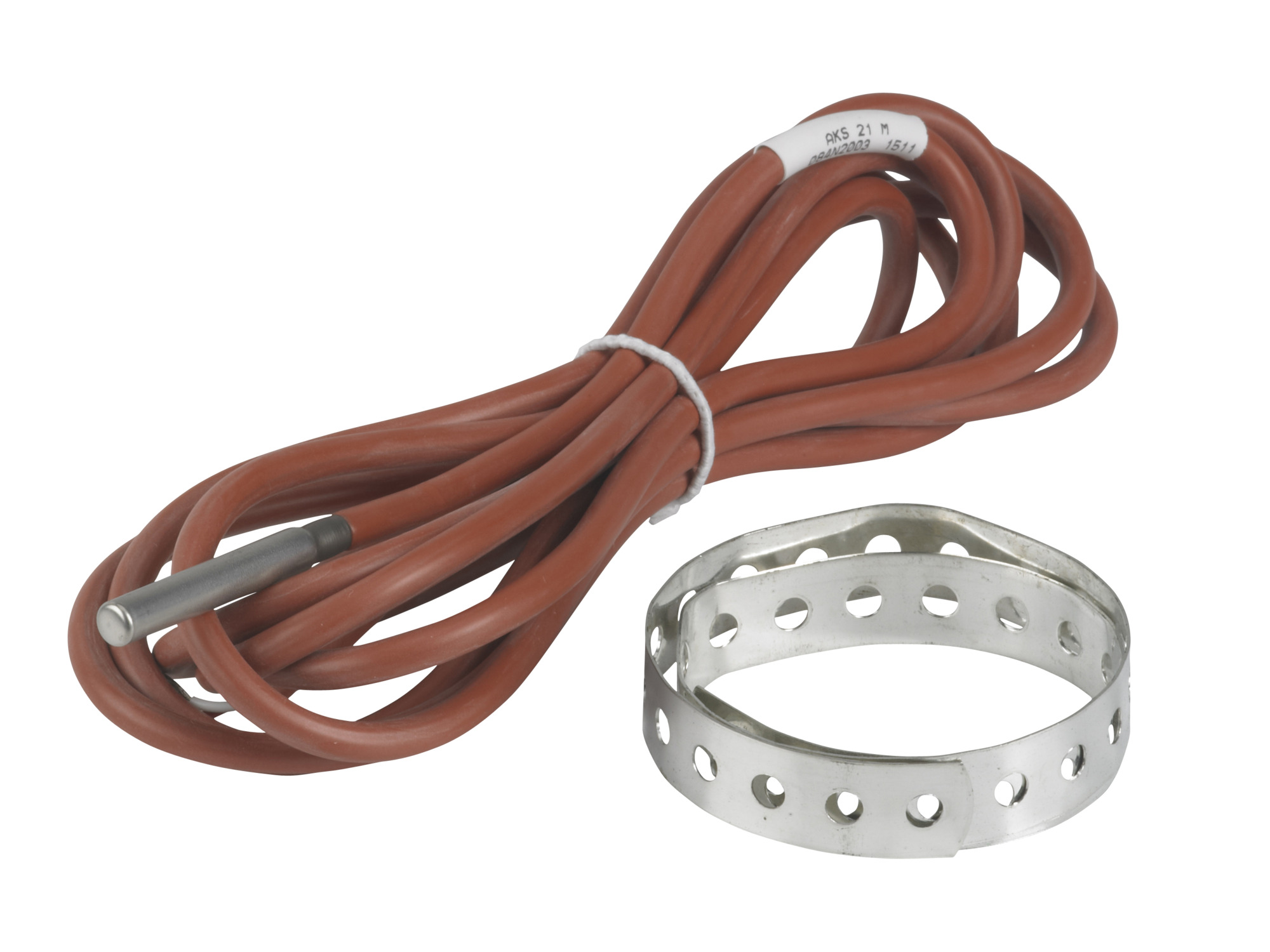

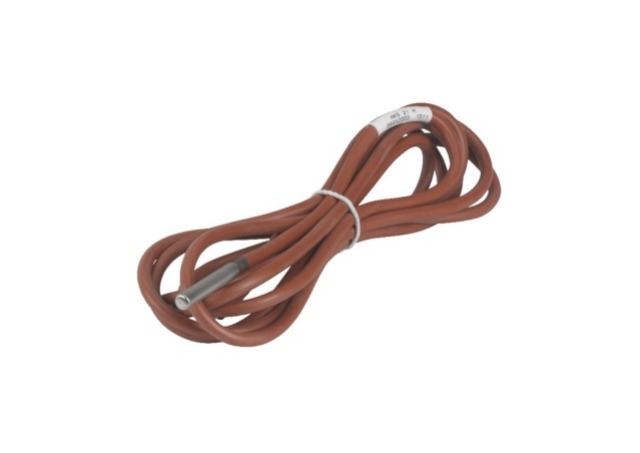

Sensor AKS 21 A 2.5m
Product number:
084N2007
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Family : | AKS |
|---|
Cable
| Cable Length : | 2.50 m, 98.43 in | Cable Temperature Range : | -60-200 °C |
|---|
Electrical
| Electric Connection : | Cable | IP Class : | IP67 |
|---|
General Information
| Measuring Range : | -60-200 °C | Model Number : | 084N2007 |
|---|---|---|---|
| Type : | AKS 21 A |
Logistical Information
| Commodity Code : | 90251900 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702422053705 | Gross Weight : | 0.11 kg |
Measurements
| Net Weight : | 0.11 kg | Weight : | 0.09 kg |
|---|
Sensors

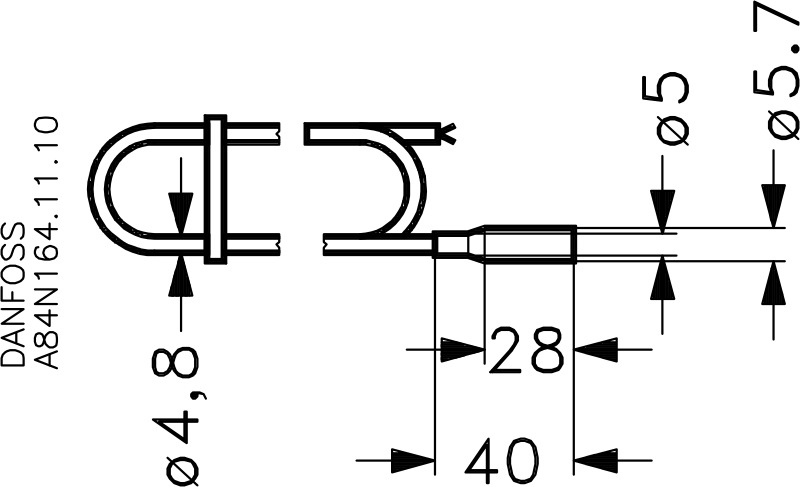

| Protection Tube Diameter : | 0.23 in, 5.8 mm | Protection Tube Length : | 1.58 in, 40.0 mm |
|---|---|---|---|
| Protection Tube Material : | Stainless Steel | Sensor Element Resistance : | 1000 Ohm |
| Sensor Element Tolerance : | Class B | Sensor Element Type : | Pt |
| Sensor Insert : | Fixed |
Temperature
| Max Ambient Temperature : | 180 °C | Temperature Range : | -60-200 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| aks-21-installation-guide-ast-an086686415061en-000101.pdf | Installation Manual | 372.01 KB | |
| manufacturer-s-declaration-danfoss-md-084r1022-01-ast-id365946733646-0101.pdf | Conformity Declaration | 400.12 KB | |
| manufacturer-s-declaration-danfoss-md-097r0004-01-ast-id365946731644-0101.pdf | Conformity Declaration | 427.1 KB | |
| instruction-for-aks-21-ast-an000086414419en-000502.pdf | Installation Manual | 477.89 KB |
