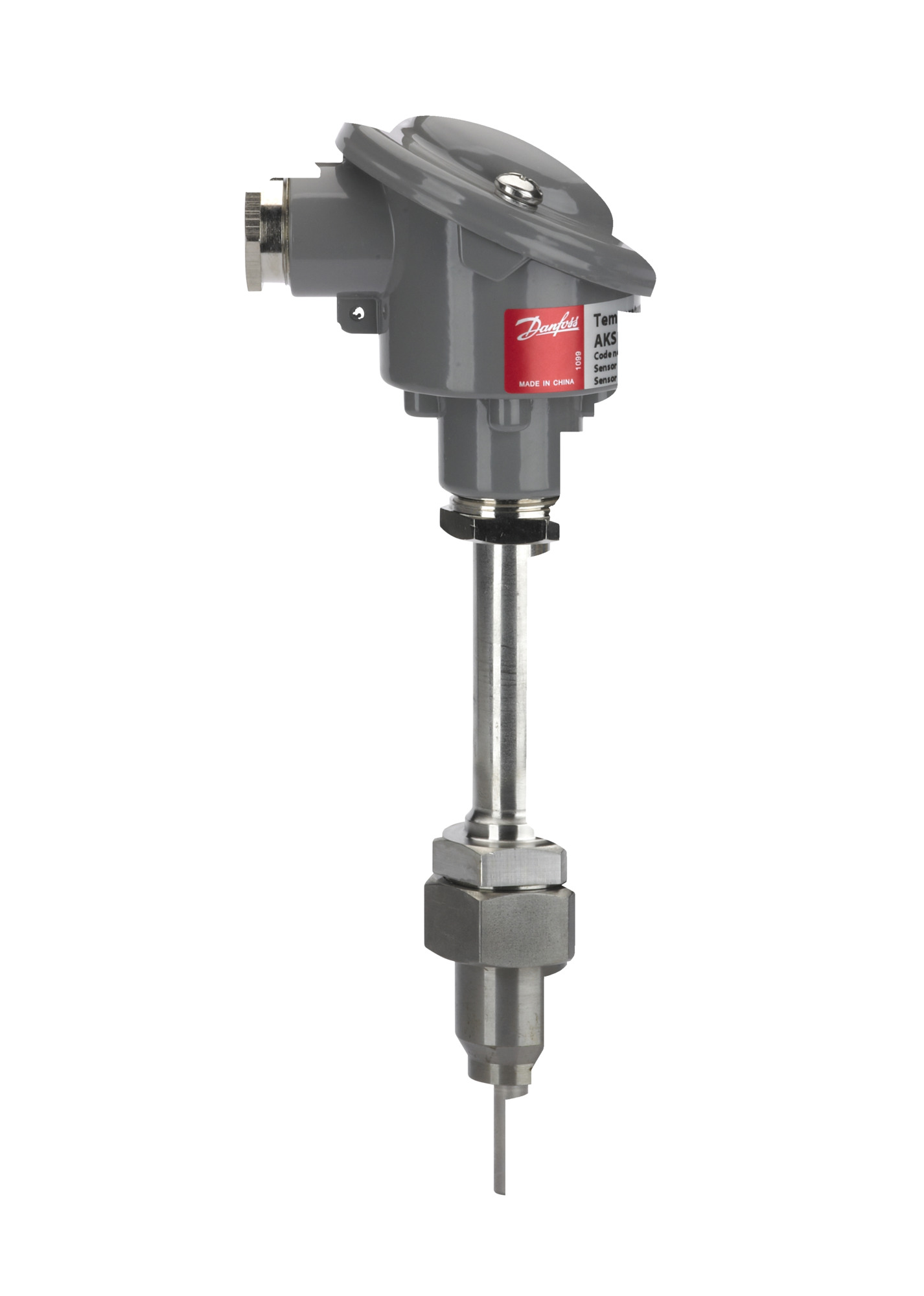

Sensor AKS 21 W

Product number: 084N2016
PLEASE LOGIN TO SEE PRICES
Product Group : Flow Controls - Other
Description
Sensor AKS 21 W
Product Group : Flow Controls - Other
Family : AKS
Connection Type : Weld
Electric Connection : Type B Electric Connection Size : Pg16
Measuring Range : -70-180 °C
Commodity Code : 90251900 Country Of Origin : CHN
Weight : 0.45 kg
Protection Tube Diameter : 0.28 in, 7.0 mm Protection Tube Length : 1.97 in, 50.0 mm
Protection Tube Material : Stainless Steel Sensor Element Resistance : 1000 Ohm
Sensor Element Tolerance : Class B Sensor Element Type : Pt
Sensor Insert : Exchangeable
Max Ambient Temperature : 180 °C
File name Document Type Extension Size
aks-21-installation-guide-ast-an086686415061en-000101.pdf Installation Manual pdf 372.01 KB
manufacturer-s-declaration-danfoss-md-097r0004-01-ast-id365946731644-0101.pdf Conformity Declaration pdf 427.1 KB
instruction-for-aks-21-ast-an000086414419en-000502.pdf Installation Manual pdf 477.89 KB
