Description

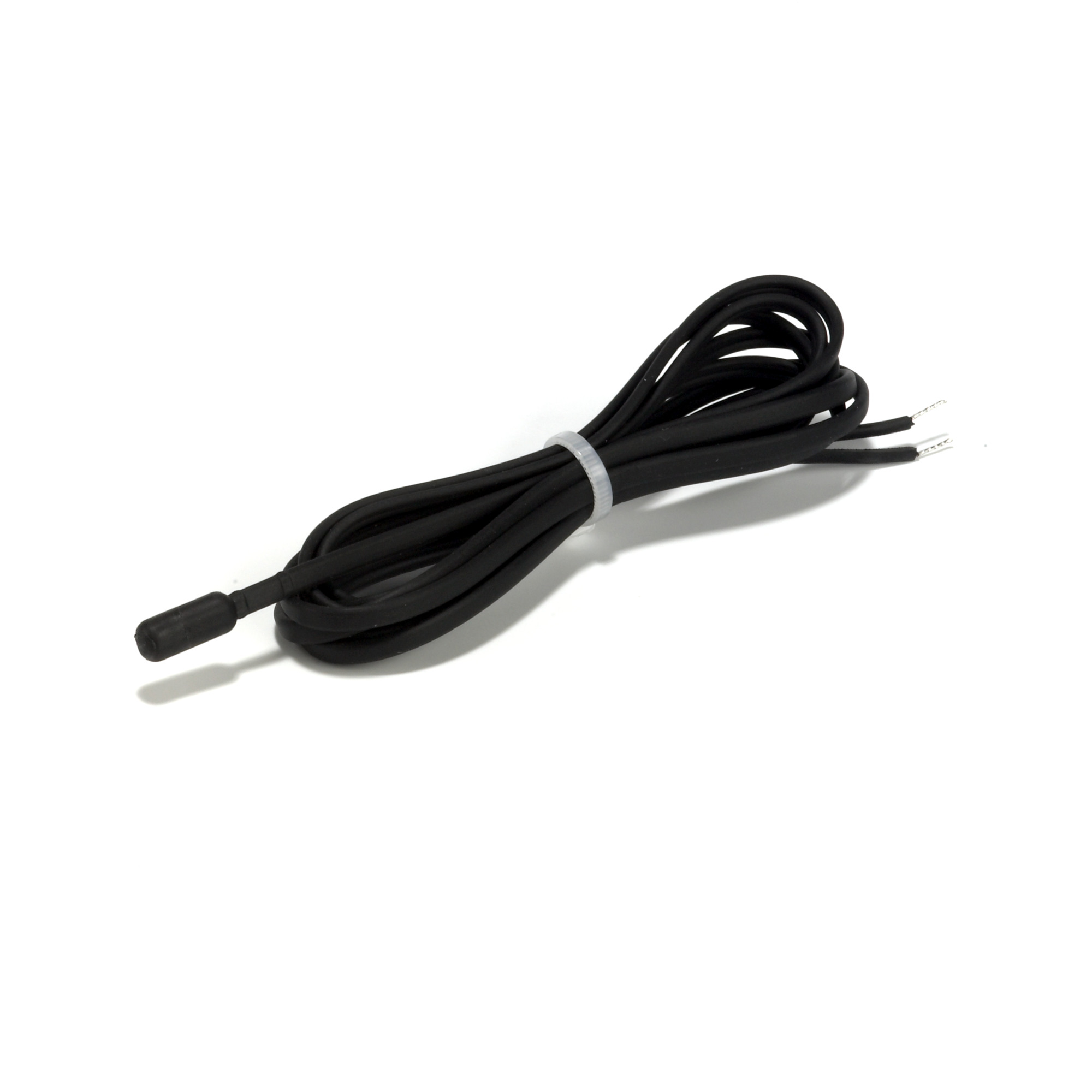

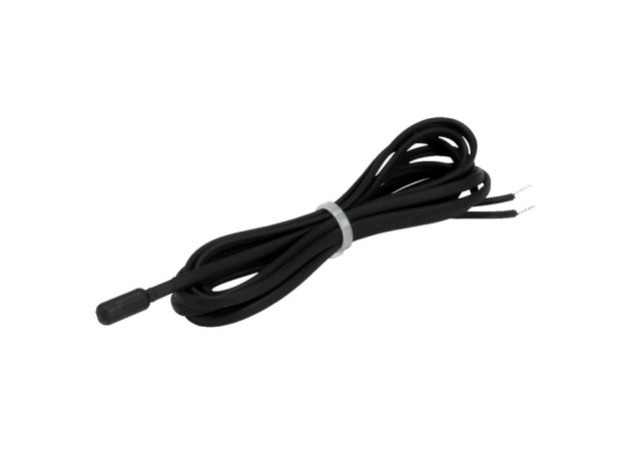

Sensor EKS 221 NT 10K 3.5m cable
Danfoss EKS221 NT 10K 3.5m Cable
Product number:
084N3210
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Family : | EKS |
|---|
Cable
| Cable Length : | 3.50 m, 88.90 in | Cable Temperature Range : | -50-120 °C |
|---|
Electrical
| Electric Connection : | Cable | IP Class : | IP67 |
|---|
General Information
| Measuring Range : | -50-120 °C | Model Number : | 084N3210 |
|---|
Logistical Information
| Commodity Code : | 90251900 | Country Of Origin : | ITA |
|---|---|---|---|
| EAN : | 5702428171977 | Gross Weight : | 0.032 kg |
Measurements
| Weight : | 0.03 kg |
|---|
Sensors
| Protection Tube Diameter : | 0.24 in, 6.0 mm | Protection Tube Material : | Thermoplastic rubber |
|---|---|---|---|
| Sensor Element Resistance : | 10000 Ohm | Sensor Element Tolerance : | ± 1% |
| Sensor Element Type : | NTC |
Temperature
| Max Ambient Temperature : | 120 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-084r1022-01-ast-id365946733646-0101.pdf | Conformity Declaration | 400.12 KB | |
| temperature-sensor-ntc-10-kohm-eks-221-ast-ai201986428383en-000201.pdf | Technical Literature | 387.42 KB | |
| temperaturfoler-ntc-10-kohm-type-eks-221-instructions-ast-an00008641095800-000101.pdf | Installation Manual | 36.81 KB |
