Description

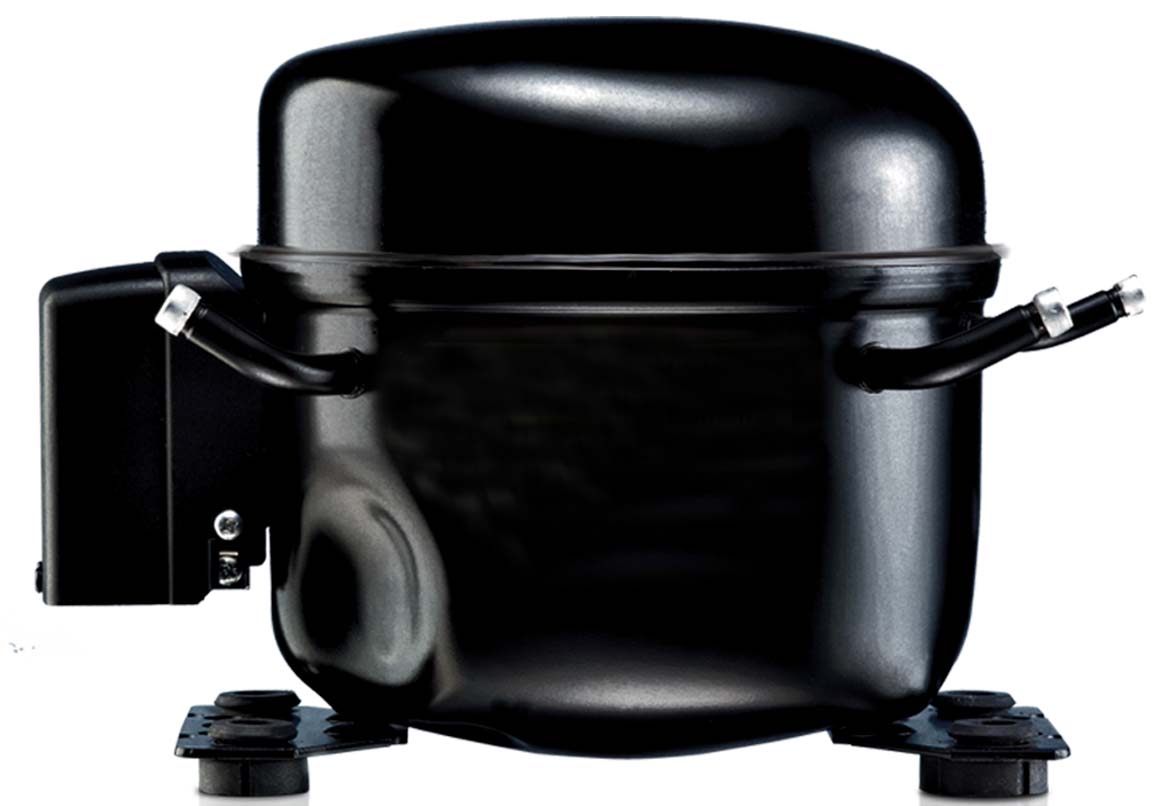

Tl5G L/M/Hbp R134A
Product number:
102G4550SP
| Displacement : | 2 cc |
|---|---|
| Nominal HP : | 0.12 HP |
| Oil Type : | POE |
| Product Group : | Comp Herm - Danfoss |
| VSD Capable : | No |
General
| Product Group : | Comp Herm - Danfoss |
|---|
Compressor
| Displacement : | 2 cc |
|---|
Connections
| Discharge Line Connection : | 0.25 | Suction Line Connection Size : | 0.25 |
|---|
Electrical
| LRA : | 5.7 A | MOC : | 9.7 A |
|---|---|---|---|
| RLA : | 1.1 A | Voltage : | 220-240/1/50 V |
General Information
| VSD Capable : | No |
|---|
Measurements
| Height : | 169 mm | Weight : | 8.16 kg |
|---|
Motor
| Motor Type : | CSIR/RSIR |
|---|
Oil
| Oil Charge : | 280 ml | Oil Type : | POE |
|---|
Performance
| Nominal HP : | 0.12 HP |
|---|
R134A Performances
| R134a Capacity -5°C : | 208 W | R134a Capacity -20°C : | 107 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| tl5g-ast-351520.pdf | Technical Literature | 1.12 MB |
