Description

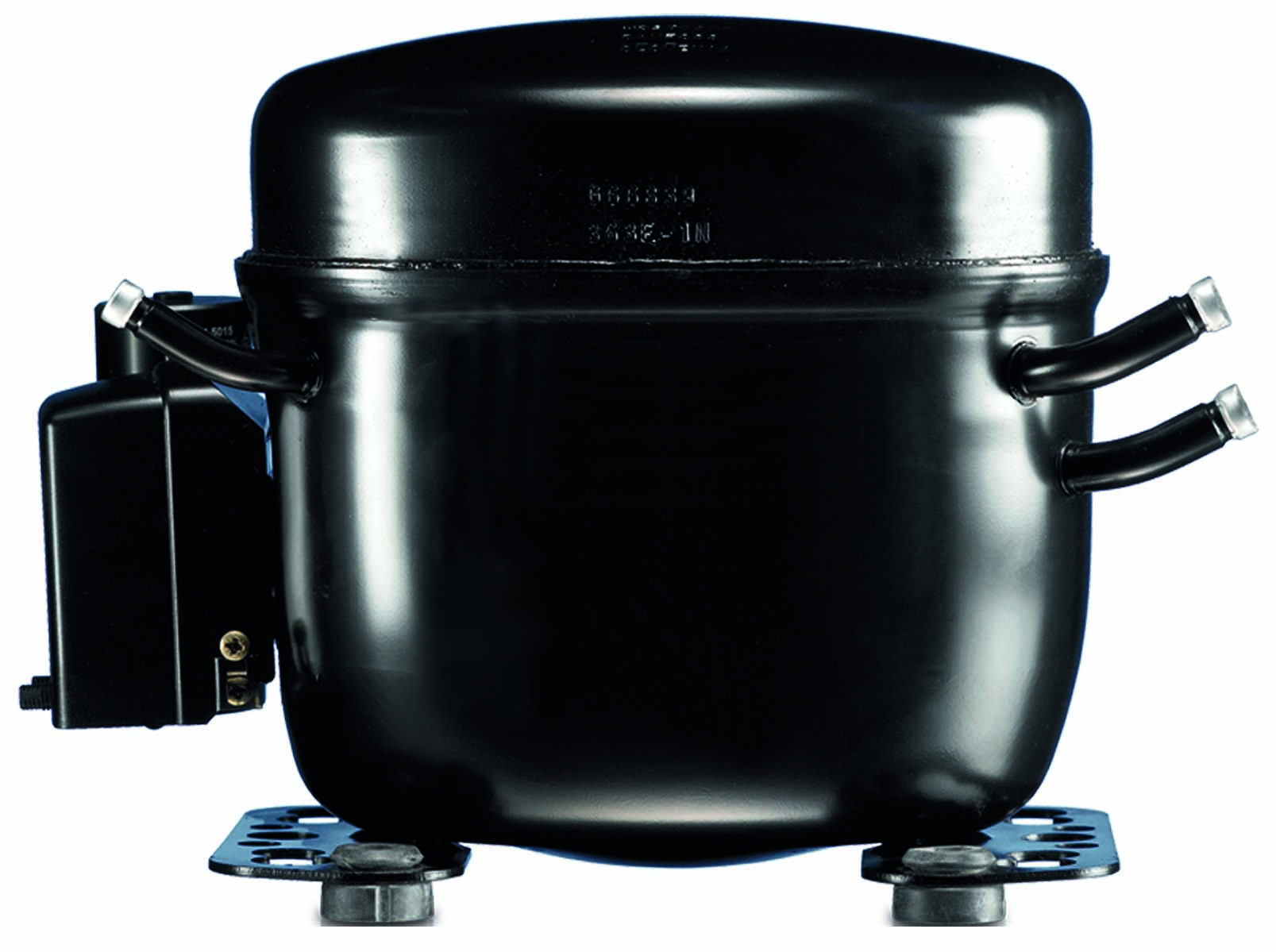

Fr6G L/M/Hbp R134A
Product number:
103G6660SP
| Displacement : | 6.23 cc |
|---|---|
| Nominal HP : | 0.16 HP |
| Oil Type : | POE |
| Product Group : | Comp Herm - Danfoss |
| VSD Capable : | No |
General
| Product Group : | Comp Herm - Danfoss |
|---|
Compressor
| Displacement : | 6.23 cc |
|---|
Connections
| Discharge Line Connection : | 0.25 | Suction Line Connection : | 0.375 |
|---|
Electrical
| LRA : | 7.5 A | MOC : | 10.5 A |
|---|---|---|---|
| RLA : | 1.2 A | Voltage : | 220-240/1/50 V |
General Information
| VSD Capable : | No |
|---|
Measurements
| Height : | 196 mm | Weight : | 10.53 kg |
|---|
Motor
| Motor Type : | CSIR/RSIR |
|---|
Oil
| Oil Type : | POE |
|---|
Performance
| Nominal HP : | 0.16 HP |
|---|
R134A Performances
| R134a Capacity -5°C : | 290 W | R134a Capacity -20°C : | 124 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fr6g-ast-351514.pdf | Technical Literature | 270.08 KB |
