Description
FR8.5G

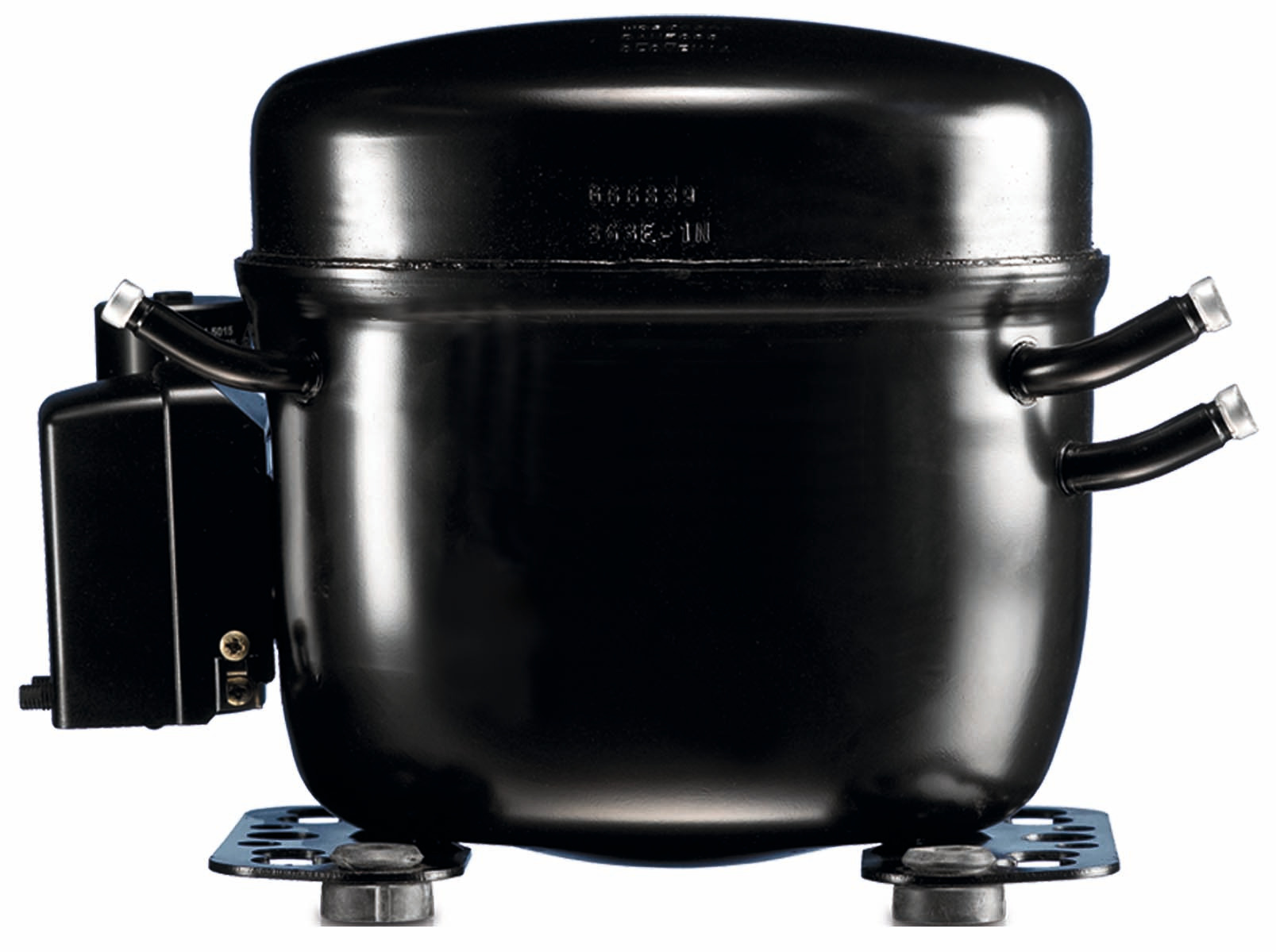

Reciprocating compressor, FR8.5G
Product number:
103G6780SP
| Application : | HBP;LBP;MBP |
|---|---|
| Displacement : | 7.95 cm³ |
| Nominal HP : | 0.25 HP |
| Oil Type : | POE |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Product Group : | Comp Herm - Danfoss |
| VSD Capable : | No |
General
| Product Group : | Comp Herm - Danfoss |
|---|
Application
| Application : | HBP;LBP;MBP |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Displacement : | 7.95 cm³ | Free Gas Volume : | 1350 cm³ |
|---|---|---|---|
| Power Supply Compressor : | 220/1/50 220/1/60 V/Ph/Hz | Swept Volume : | 7.95 cm³ |
| Technique : | Reciprocating |
Connections
| Discharge Line Connection : | 6.2 mm | Discharge Line Connection Type : | STUB / TUBE |
|---|---|---|---|
| Suction Line Connection Size : | 8.2 mm | Suction Line Connection Type : | STUB / TUBE |
Electrical
| Cut In Current HST : | 9.0 A | Cut In Current LST : | 12.8 A |
|---|---|---|---|
| Frequency : | 50/60 Hz | LRA : | 9 A |
| LRA HST : | 9.0 A | LRA HST 60Hz : | 9.00 A |
| LRA LST : | 8.4 A | MOC : | 12.8 A |
| Power Supply : | 220-240/1/50 V/Ph/Hz | RLA : | 1.60 A |
| Voltage : | 220-240/1/50 V | Voltage 50Hz : | 220 V |
| Voltage 60Hz : | 220 V |
General Information
| Colour : | Black | Model Number : | FR8.5G |
|---|---|---|---|
| Type : | FR | VSD Capable : | No |
Logistical Information
| Commodity Code : | 84143020 | Country Of Origin : | SVK |
|---|---|---|---|
| EAN : | 5702428583725 | Gross Weight : | 11.253 kg |
Material
| Connection Material : | Copper-plated steel | Discharge Connection Material : | Copper-plated steel |
|---|---|---|---|
| Suction Connection Material : | Copper-plated steel |
Measurements
| Height : | 196 mm | Length : | 243 mm |
|---|---|---|---|
| Weight : | 11.25 kg | Width : | 156 mm |
Motor
| Motor Code : | CSIR/RSIR | Motor Type : | CSIR, RSIR |
|---|
Oil
| Oil Charge : | 450 cm³ | Oil Type : | POE |
|---|
Performance
| Nominal HP : | 0.25 HP |
|---|
R134A Performances
| R134a Capacity -5°C : | 0.381 kW | R134a Capacity -10°C : | 0.300 kW |
|---|---|---|---|
| R134a Capacity -15°C : | 0.231 kW | R134a Capacity -20°C : | 0.172 kW |
| R134a Capacity -25°C : | 0.123 kW | R134a Capacity -30°C : | 0.084 kW |
| R134a Capacity 0°C : | 0.474 kW |
Refrigerant
| Max Refrigerant Charge : | 0.90 kg | Refrigerant : | R134a |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fr85g-ast-351515.pdf | Technical Literature | 270.08 KB | |
| service-guide-fitters-notes-chapter-8-compressors-ast-ax268748862633en-000301.pdf | Technical Literature | 10.35 MB |
