Description
FR10G

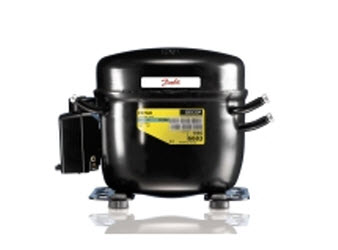

Reciprocating compressor, FR10G
Product number:
103G6880SP
| Application : | HBP;LBP;MBP |
|---|---|
| Displacement : | 9.05 cm³ |
| Nominal HP : | 0.25 HP |
| Oil Type : | POE |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Product Group : | Comp Herm - Danfoss |
| VSD Capable : | No |
General
| Product Group : | Comp Herm - Danfoss |
|---|
Application
| Application : | HBP;LBP;MBP |
|---|
Capacity
| Capacity Control : | Fixed speed | Capacity at -10°C : | 324 W |
|---|---|---|---|
| Capacity at -20°C : | 188 W | Capacity at 0°C : | 516 W |
| Effect : | 275 W |
Compressor
| Displacement : | 9.05 cm³ | Free Gas Volume : | 1350 cm³ |
|---|---|---|---|
| Power Supply Compressor : | 220/1/50 220/1/60 V/Ph/Hz | Swept Volume : | 9.05 cm³ |
| Technique : | Reciprocating |
Connections
| Discharge Line Connection : | 6.2 mm | Discharge Line Connection Type : | STUB / TUBE |
|---|---|---|---|
| Suction Line Connection : | 8.2 mm | Suction Line Connection Type : | STUB / TUBE |
Electrical
| Cut In Current HST : | 10.9 A | Cut In Current LST : | 15.1 A |
|---|---|---|---|
| Frequency : | 50/60 Hz | LRA : | 10.9 A |
| LRA HST : | 10.9 A | LRA HST 60Hz : | 10.90 A |
| LRA LST : | 10.5 A | MOC : | 15.1 A |
| Power Supply : | 230/1/50 V/Ph/Hz | RLA : | 2.20 A |
| Voltage : | 220-240/1/50 V | Voltage 50Hz : | 220 V |
| Voltage 60Hz : | 220 V |
General Information
| Colour : | Black | Model Number : | FR10G 134a kompressor - 230/1/50 |
|---|---|---|---|
| Stroke Volume : | 10.30 cm³ | Type : | FR |
| VSD Capable : | No |
Logistical Information
| Commodity Code : | 84143020 | Country Of Origin : | SVK |
|---|
Material
| Discharge Connection Material : | Copper-plated steel | Suction Connection Material : | Copper-plated steel |
|---|
Measurements
| Height : | 196 mm | Length : | 243 mm |
|---|---|---|---|
| Weight : | 11.34 kg | Width : | 156 mm |
Motor
| Motor Code : | CSIR/RSIR | Motor Type : | CSIR, RSIR |
|---|
Oil
| Oil Charge : | 450 cm³ | Oil Type : | POE |
|---|
Performance
| Nominal HP : | 0.25 HP |
|---|
R134A Performances
| R134a Capacity -5°C : | 0.411 kW | R134a Capacity -10°C : | 0.323 kW |
|---|---|---|---|
| R134a Capacity -15°C : | 0.250 kW | R134a Capacity -20°C : | 0.188 kW |
| R134a Capacity -25°C : | 0.137 kW | R134a Capacity -30°C : | 0.093 kW |
| R134a Capacity 0°C : | 0.514 kW |
Refrigerant
| Max Refrigerant Charge : | 0.90 kg | Refrigerant : | R134a |
|---|
