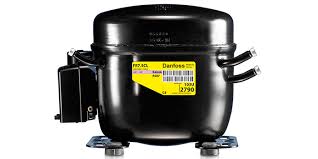

Reciprocating compressor, SC21G
Item Number:
104G8140SP
| Application : | HBP;LBP;MBP |
|---|---|
| Capacity Control : | Fixed speed |
| Displacement : | 20.95 cm³ |
| Nominal HP : | 0.62 HP |
| Oil Type : | POE |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Product Group : | Comp Herm - Danfoss |
| Refrigerant : | R134a |
| VSD Capable : | No |
| Voltage : | 220-240/1/50 V |
General Information
| Application : | HBP;LBP;MBP |
|---|---|
| Colour : | Black |
| Effect : | 590 W |
| Model Number : | SC21G |
| Product Group : | Comp Herm - Danfoss |
| Stroke Volume : | 20.95 cm³ |
| Type : | SC |
| VSD Capable : | No |
Capacity
| Capacity Control : | Fixed speed |
|---|---|
| Capacity at -10°C : | 792 W |
| Capacity at -20°C : | 453 W |
| Capacity at 0°C : | 1268 W |
Capacity R134a
| R134a Capacity -5°C : | 1.26 kW |
|---|---|
| R134a Capacity -15°C : | 0.755 kW |
| R134a Capacity -20°C : | 453 W |
| R134a Capacity -25°C : | 0.453 kW |
| R134a Capacity 0°C : | 1.579 kW |
Compressor
| Displacement : | 20.95 cm³ |
|---|---|
| Free Gas Volume : | 1460 cm³ |
| Power Supply Compressor : | 220/1/50 220/1/60 V/Ph/Hz |
| Swept Volume : | 20.95 cm³ |
| Technique : | Reciprocating |
Connections
| Discharge Connection Height : | 100 mm |
|---|---|
| Discharge Line Connection : | 6.2 mm |
| Discharge Line Connection Type : | STUB / TUBE |
| Suction Connection Height : | 183 mm |
| Suction Line Connection : | 10.2 mm |
| Suction Line Connection Type : | STUB / TUBE |
Electrical
| Cut In Current HST : | 22.1 A |
|---|---|
| Frequency : | 50/60 Hz |
| LRA : | 22.1 A |
| LRA HST : | 22.1 A |
| LRA HST 60Hz : | 22.10 A |
| Power Supply : | 230/1/50 V/Ph/Hz |
| RLA : | 3.90 A |
| Voltage : | 220-240/1/50 V |
| Voltage 50Hz : | 220 V |
| Voltage 60Hz : | 220 V |
Material
| Discharge Connection Material : | Copper |
|---|---|
| Suction Connection Material : | Copper |
Measurements
| Height : | 209 mm |
|---|---|
| Length : | 255 mm |
| Weight : | 14.93 kg |
| Width : | 151 mm |
Motor
| Motor Code : | CSR |
|---|---|
| Motor Type : | CSR |
Oil
| Oil Charge : | 600 cm³ |
|---|---|
| Oil Type : | POE |
Performance
| Nominal HP : | 0.62 HP |
|---|
Refrigerant
| Max Refrigerant Charge : | 1.30 kg |
|---|---|
| Refrigerant : | R134a |
Product information
SC21G
