Description
SC15G

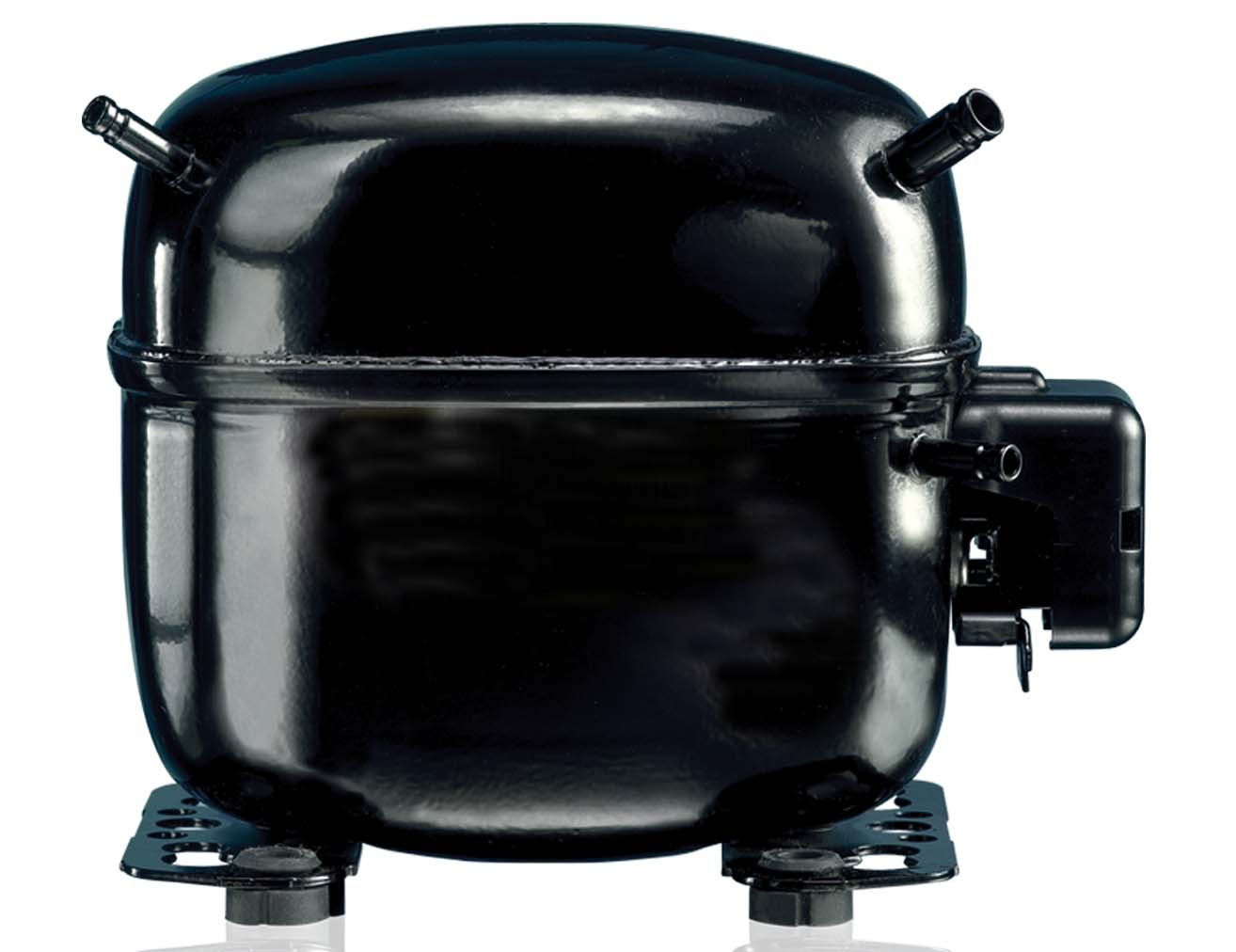

Reciprocating compressor, SC15G
Product number:
104G8520SP
| Application : | HBP;LBP;MBP |
|---|---|
| Displacement : | 15.28 cm³ |
| Nominal HP : | 0.37 HP |
| Oil Type : | POE |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Product Group : | Comp Herm - Danfoss |
| VSD Capable : | No |
General
| Product Group : | Comp Herm - Danfoss |
|---|
Application
| Application : | HBP;LBP;MBP |
|---|
Capacity
| Capacity Control : | Fixed speed | Capacity at -10°C : | 568 W |
|---|---|---|---|
| Capacity at -20°C : | 290 W | Capacity at 0°C : | 908 W |
| Effect : | 385 W |
Compressor
| Displacement : | 15.28 cm³ | Free Gas Volume : | 1410 cm³ |
|---|---|---|---|
| Power Supply Compressor : | 220/1/50 220/1/60 V/Ph/Hz | Swept Volume : | 15.28 cm³ |
| Technique : | Reciprocating |
Connections
| Discharge Connection Height : | 100 mm | Discharge Line Connection : | 6.2 mm |
|---|---|---|---|
| Discharge Line Connection Type : | STUB / TUBE | Suction Connection Height : | 183 mm |
| Suction Line Connection : | 10.2 mm | Suction Line Connection Type : | STUB / TUBE |
Electrical
| Cut In Current HST : | 16.2 A | Cut In Current LST : | 20.1 A |
|---|---|---|---|
| Frequency : | 50/60 Hz | LRA : | 16.2 A |
| LRA HST : | 16.2 A | LRA HST 60Hz : | 16.20 A |
| LRA LST : | 15.8 A | Power Supply : | 230/1/50 V/Ph/Hz |
| RLA : | 3.10 A | Voltage : | 220-240/1/50 V |
| Voltage 50Hz : | 220 V | Voltage 60Hz : | 220 V |
General Information
| Colour : | Black | Model Number : | SC15G 134a kompressor - 230/1/50 |
|---|---|---|---|
| Stroke Volume : | 15.30 cm³ | Type : | SC |
| VSD Capable : | No |
Logistical Information
| Commodity Code : | 84143081 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428583688 | Gross Weight : | 13.692 kg |
| Packaging Height : | 297 mm | Packaging Length : | 305 mm |
| Packaging Width : | 202 mm |
Material
| Discharge Connection Material : | Copper | Suction Connection Material : | Copper |
|---|
Measurements
| Height : | 209 mm | Length : | 255 mm |
|---|---|---|---|
| Weight : | 13.69 kg | Width : | 151 mm |
Motor
| Motor Code : | CSIR | Motor Type : | CSIR |
|---|
Oil
| Oil Charge : | 600 cm³ | Oil Type : | POE |
|---|
Performance
| Nominal HP : | 0.37 HP |
|---|
R134A Performances
| R134a Capacity -5°C : | 0.737 kW | R134a Capacity -10°C : | 0.579 kW |
|---|---|---|---|
| R134a Capacity -15°C : | 0.440 kW | R134a Capacity -20°C : | 0.322 kW |
| R134a Capacity -25°C : | 0.224 kW | R134a Capacity -30°C : | 0.147 kW |
| R134a Capacity -35°C : | 0.091 kW | R134a Capacity 0°C : | 0.915 kW |
Refrigerant
| Max Refrigerant Charge : | 1.30 kg | Refrigerant : | R134a |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| sc15g-ast-351517.pdf | Technical Literature | 277.86 KB |
