Description

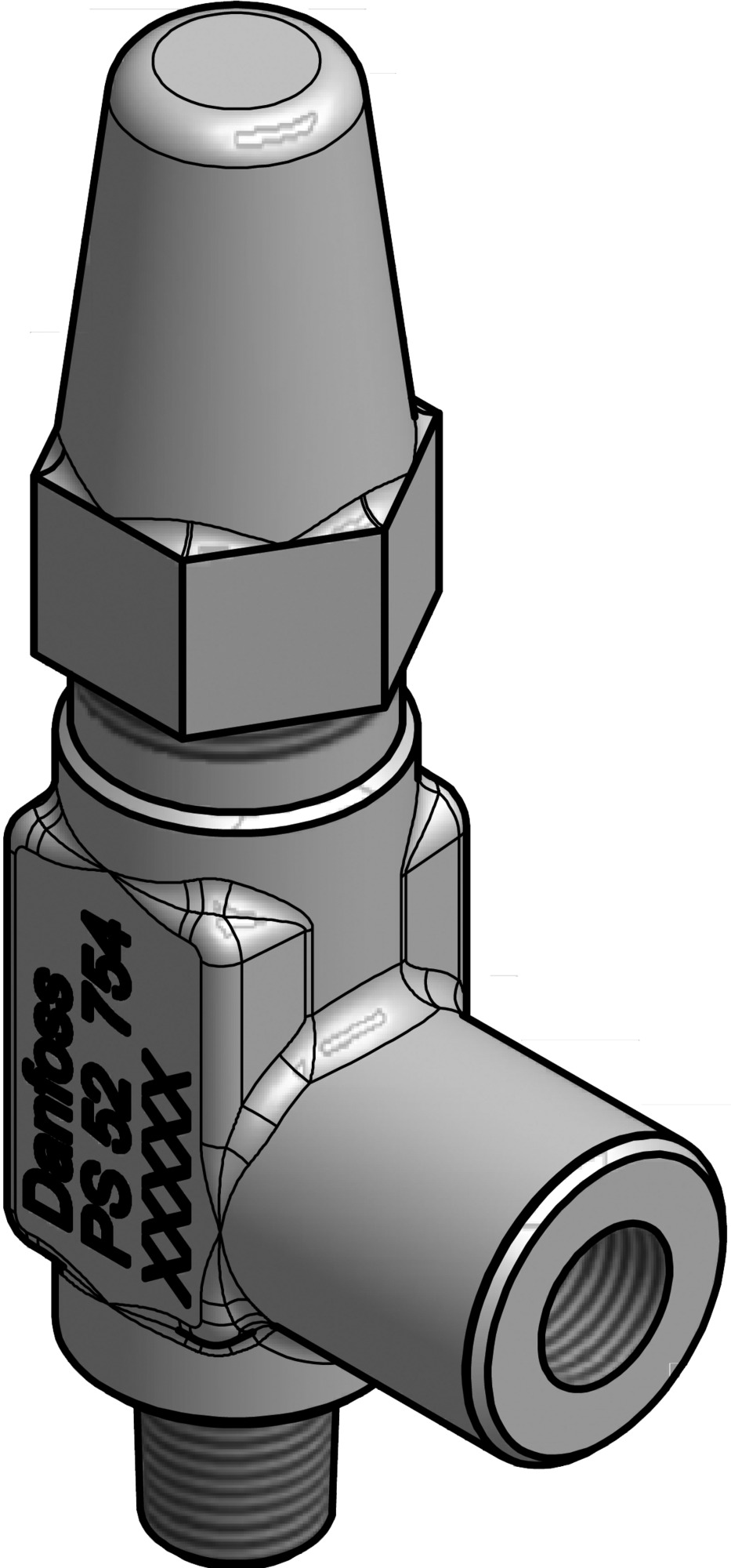

SNV-ST 1/4FPT-1/4MPT STOP NEEDLE VALVE
SNV-ST 1/4FPT-1/4MPT STOP NEEDLE VALVE
Product number:
148B3746
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Connections
| Inlet Connection Size : | 1/4 in | Inlet Type : | NPT |
|---|---|---|---|
| Outlet Connection Size : | 1/4 in | Outlet Type : | NPT |
General Information
| Equipment : | Cap | Type : | SNV-ST |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | IND |
|---|---|---|---|
| EAN : | 5702428179317 | Gross Weight : | 0.511 kg |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|
Measurements
| Weight : | 0.39 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1150, R1233zd(E), R1234yf, R1234ze(E), R1270, R1336mzz(Z), RE170 |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK, TÜV |
|---|
Temperature
| Temperature Range : | -60-150 °C |
|---|
Valves
| Direction : | Angleway | Flow Direction : | Bi-flow |
|---|---|---|---|
| Fluid Group : | 1 | Valve Version : | Standard version |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| gauge-valve-type-snv-st-and-snv-ss-ast-ai244986497087en-001201.pdf | Technical Literature | 3.52 MB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| brochure-snv-gauge-valves-for-india-en-ast-ad137786417423en-020101.pdf | Brochures | 935.12 KB | |
| snvst-and-adaptor-set-148b4772-assembly-in-ics-external-port-ast-an24128649725001-000101.pdf | Installation Manual | 82.55 KB |
