Description

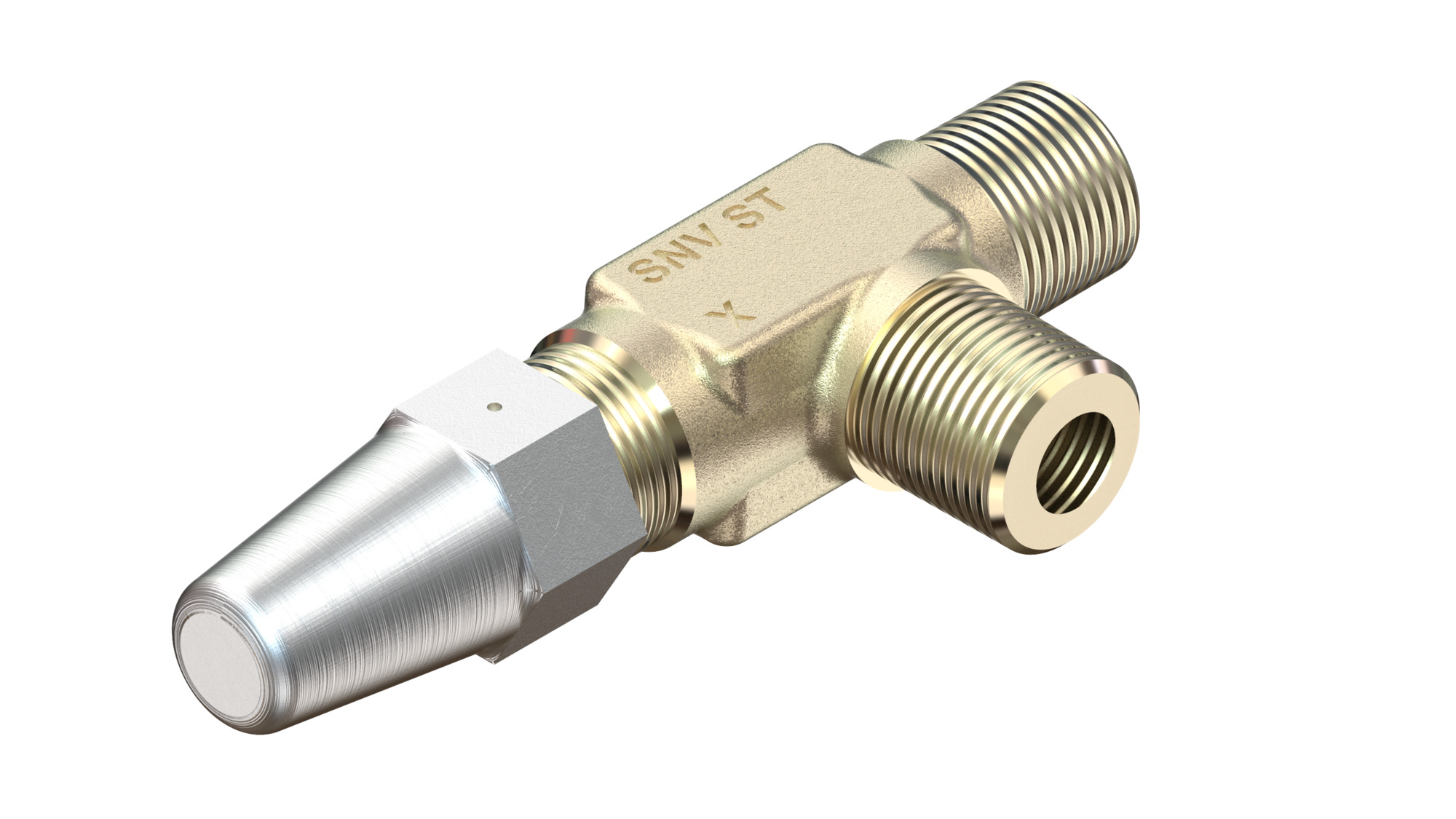

Danfoss Stop Needle Valve, Steel 1/2"M NPT inlet/outlet
Product number:
148B4564
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Compressor
| PED Category : | Art. 4, par. 3 |
|---|
Connections
| Connection Standard : | ANSI/ASME B1.20.1 | Inlet Interna/lExternal : | External |
|---|---|---|---|
| Inlet Type : | Npt | Outlet Interna/lExternal : | External |
| Outlet Type : | NPT |
General Information
| Equipment : | Cap | Type : | SNV-ST |
|---|
Logistical Information
| Commodity Code : | 84818099 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428484572 | Gross Weight : | 0.47 kg |
| Packaging Height : | 65 mm | Packaging Length : | 140 mm |
| Packaging Width : | 126 mm |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R508B, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1150, R1233zd(E), R1234yf, R1234ze(E), R1270, R1336mzz(Z), RE170 |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK, TÜV |
|---|
Valves
| Direction : | Angleway | Flow Direction : | Bi-flow |
|---|---|---|---|
| Fluid Group : | 1 | Valve Version : | Standard version |
