Description

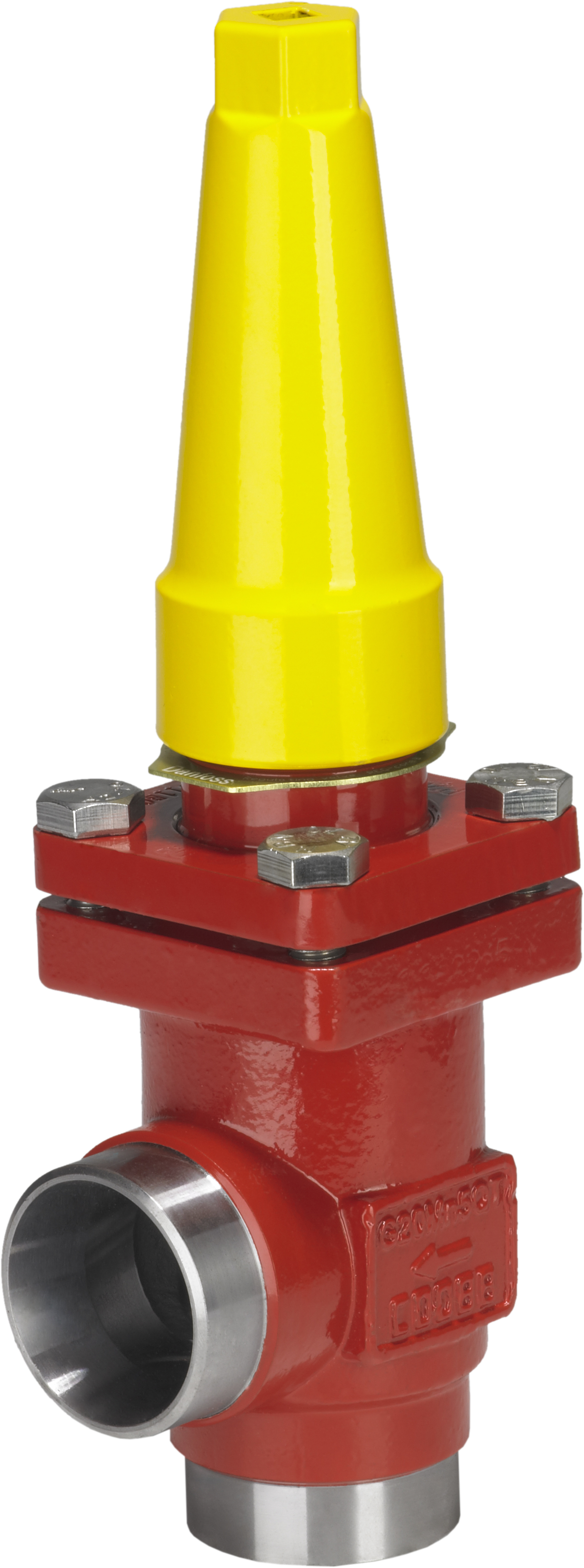

REG-SB 15 A ANG VALVE CAP
Product number:
148B5203
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Compressor
| PED Category : | Art. 4, par. 3 |
|---|
Connections
| Connection Standard : | ASME B 36.10M SCHEDULE 80 | Inlet Type : | Butt weld |
|---|---|---|---|
| Outlet Type : | Butt weld |
General Information
| Equipment : | Cap | Neck : | Standard |
|---|---|---|---|
| Type : | REG-SB 15 |
Kv Values
| Kv Value : | 5 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428473644 | Gross Weight : | 1.91 kg |
| Packaging Height : | 92 mm | Packaging Length : | 232 mm |
| Packaging Width : | 195 mm |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R452C, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, CRN, EAC, LLC CDC TYSK, UKCA |
|---|
Valves
| CV Value : | 5.8 gal/min | Direction : | Angleway |
|---|---|---|---|
| Flow Area : | 0.178 in² | Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1, 2 | Valve Version : | Standard version |
