Description

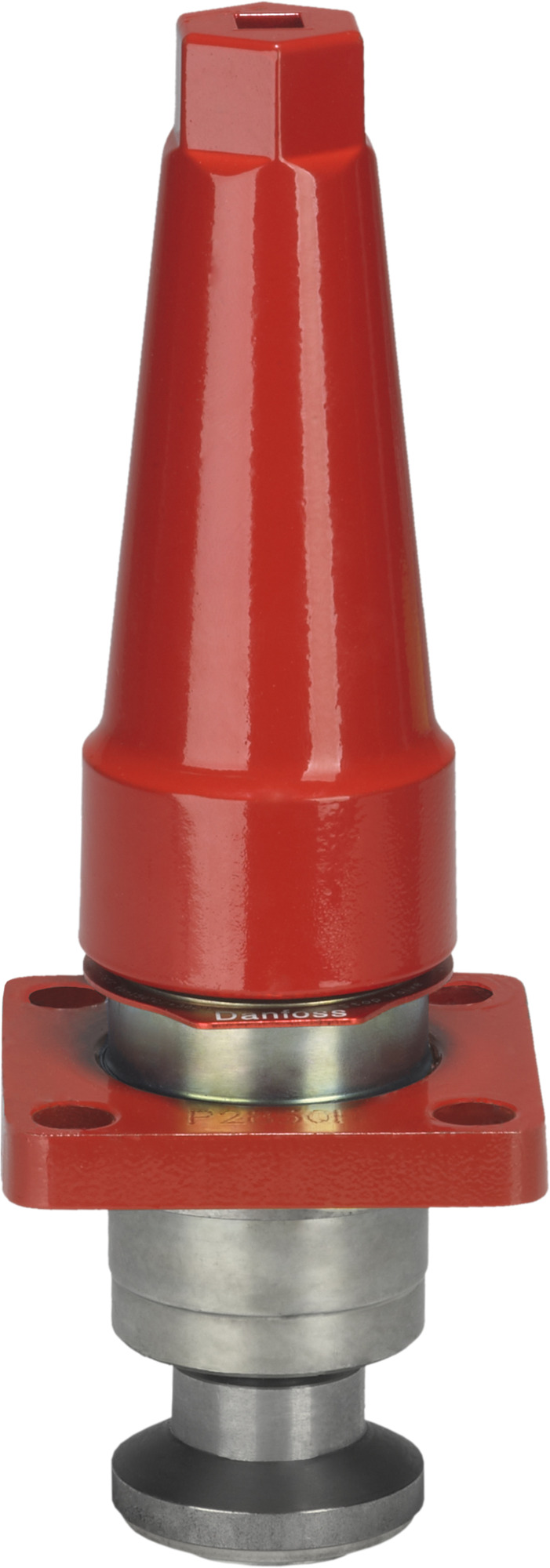

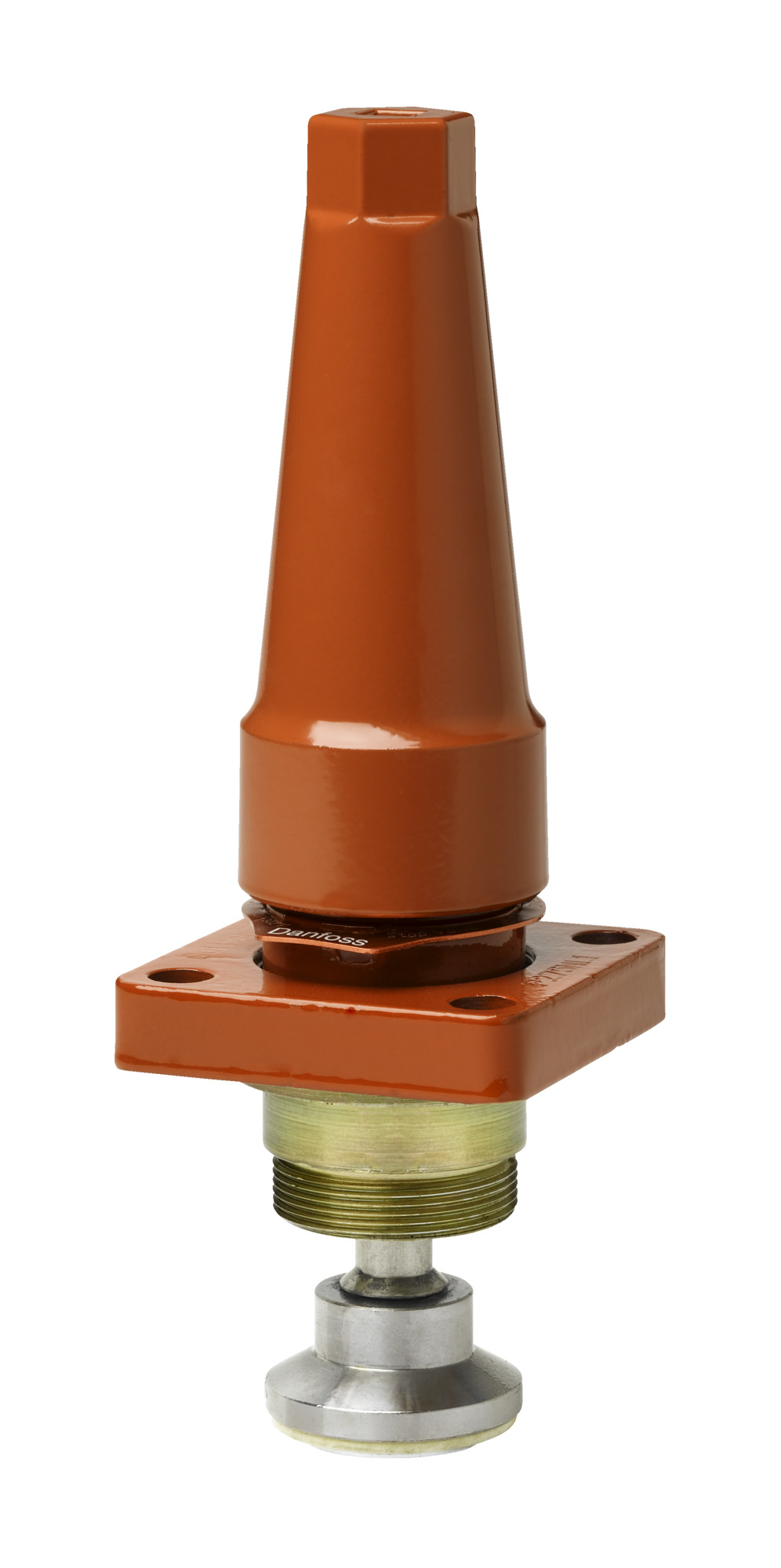

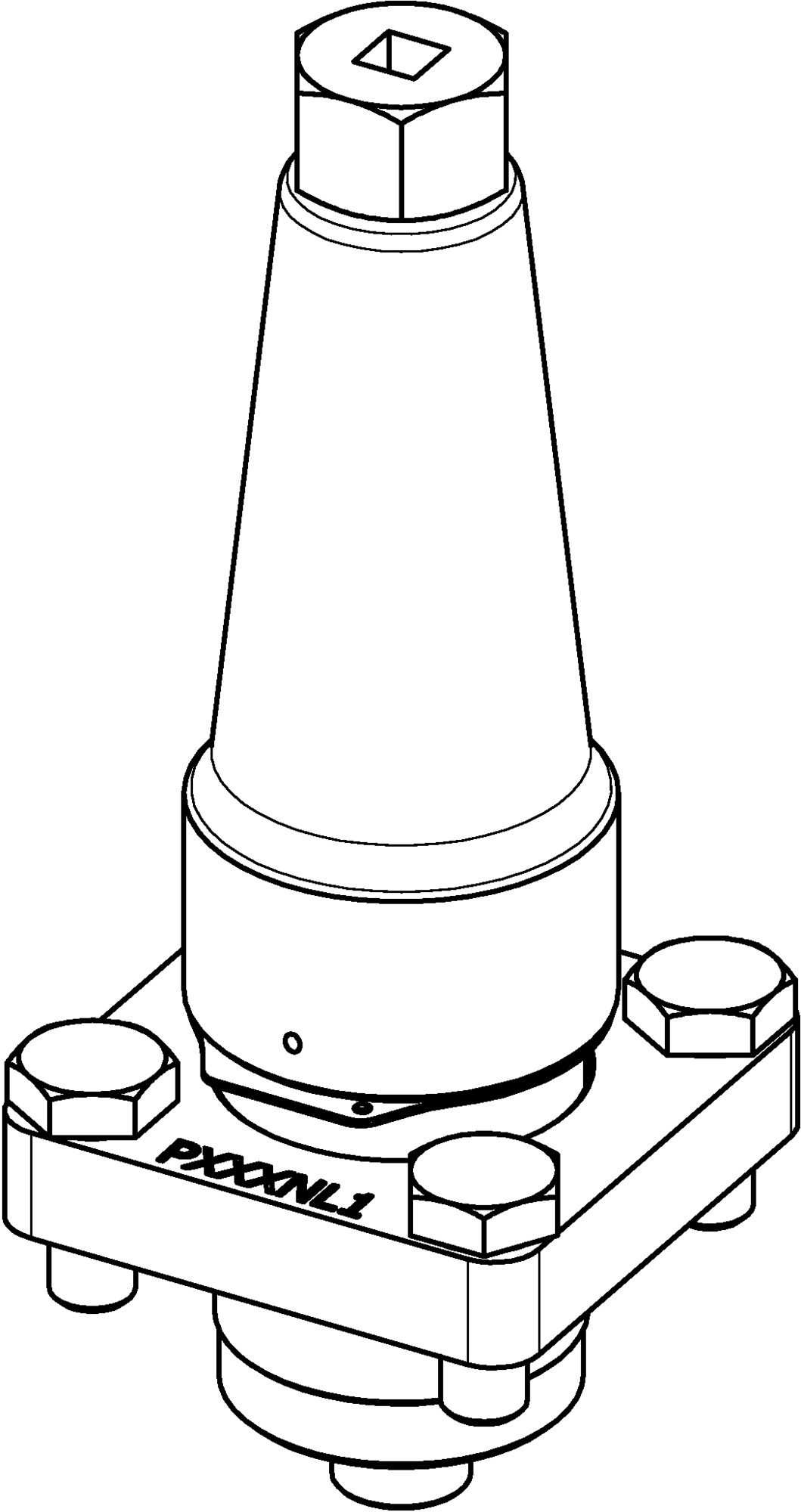

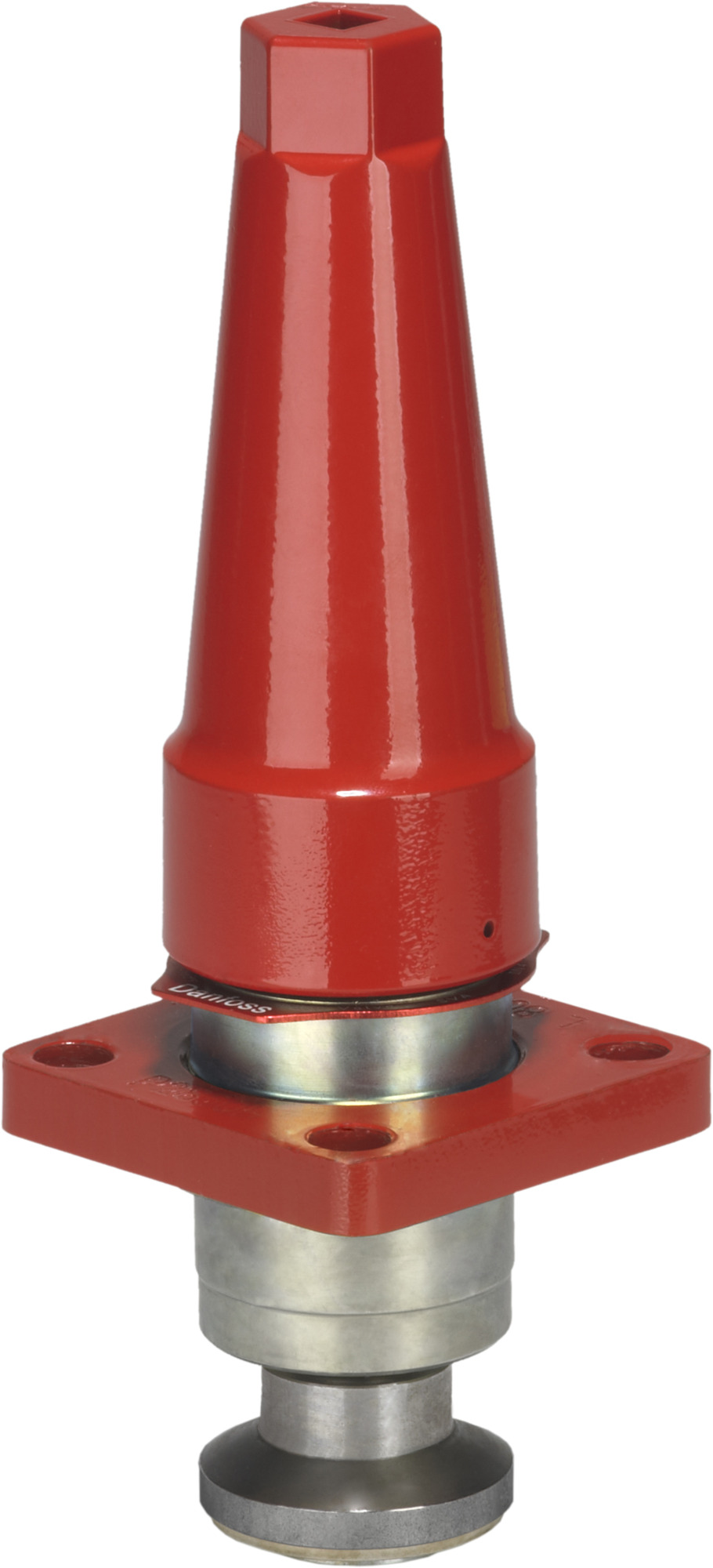

SVA-S 15-20 top complete cap
SVA-S 15-20 top complete cap
Product number:
148B5276
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Additional Info

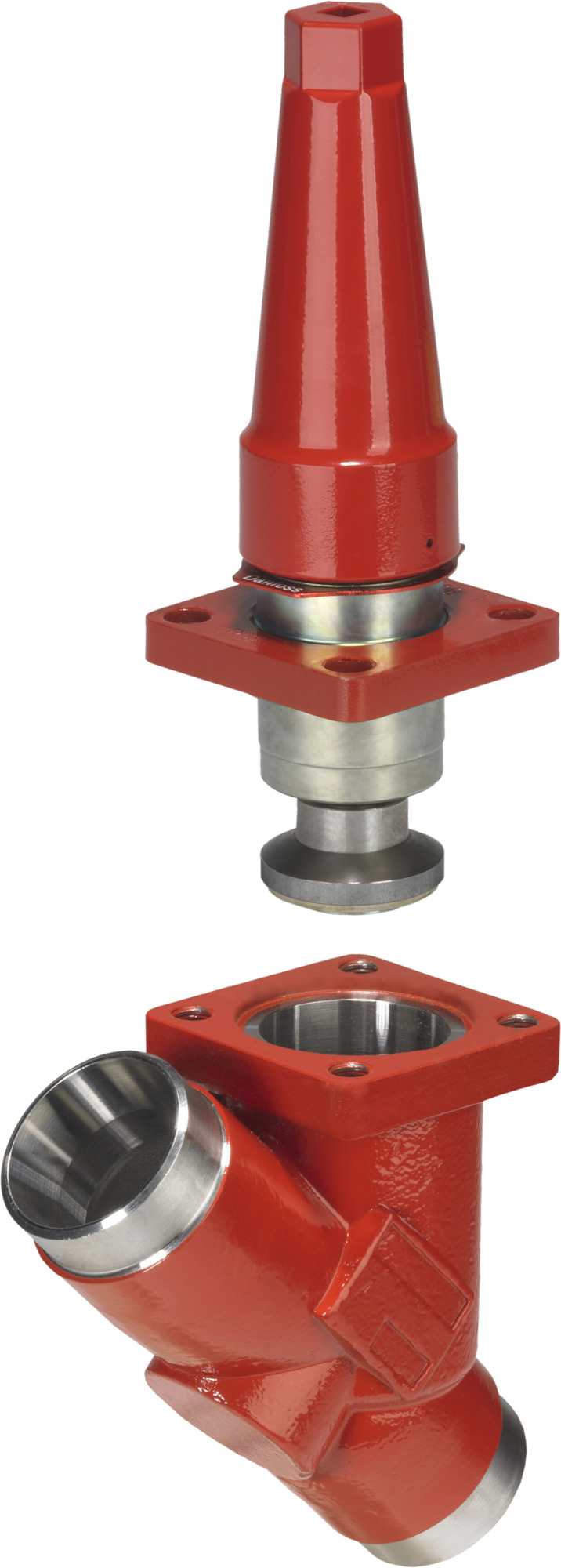

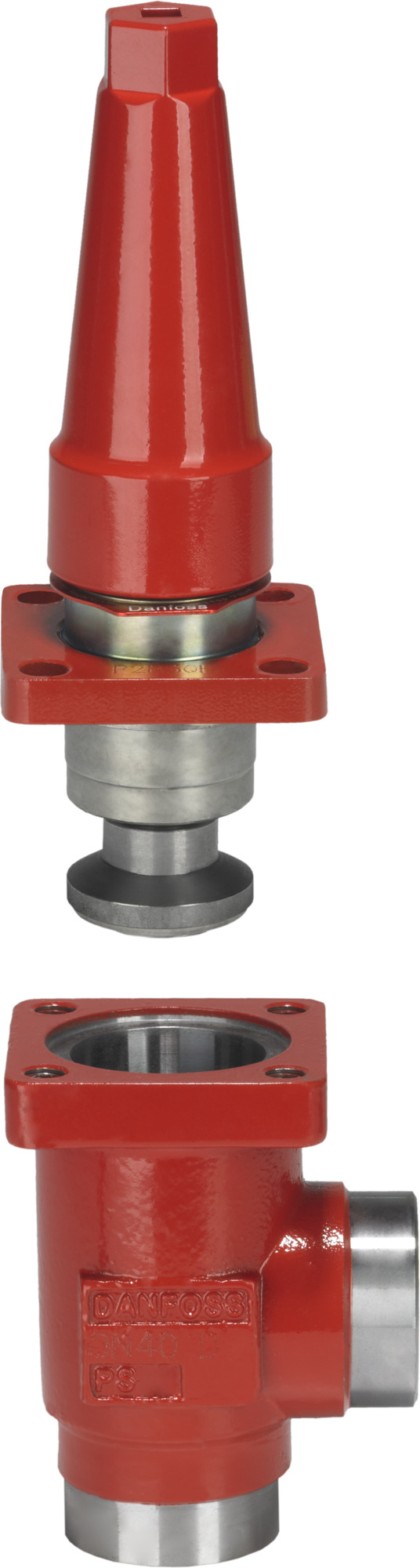

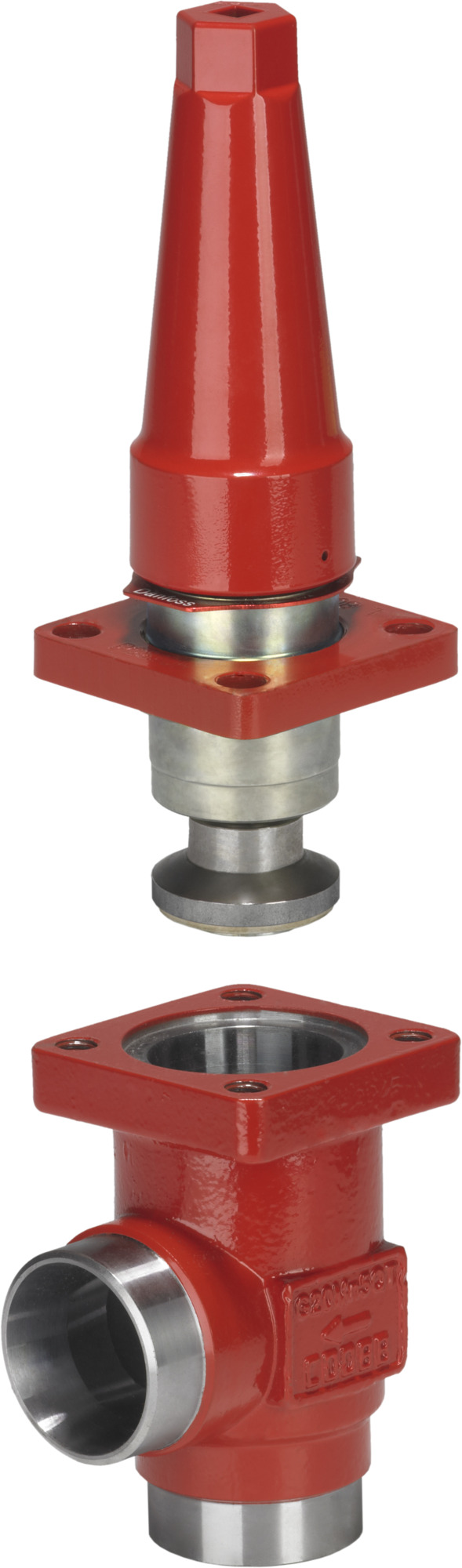

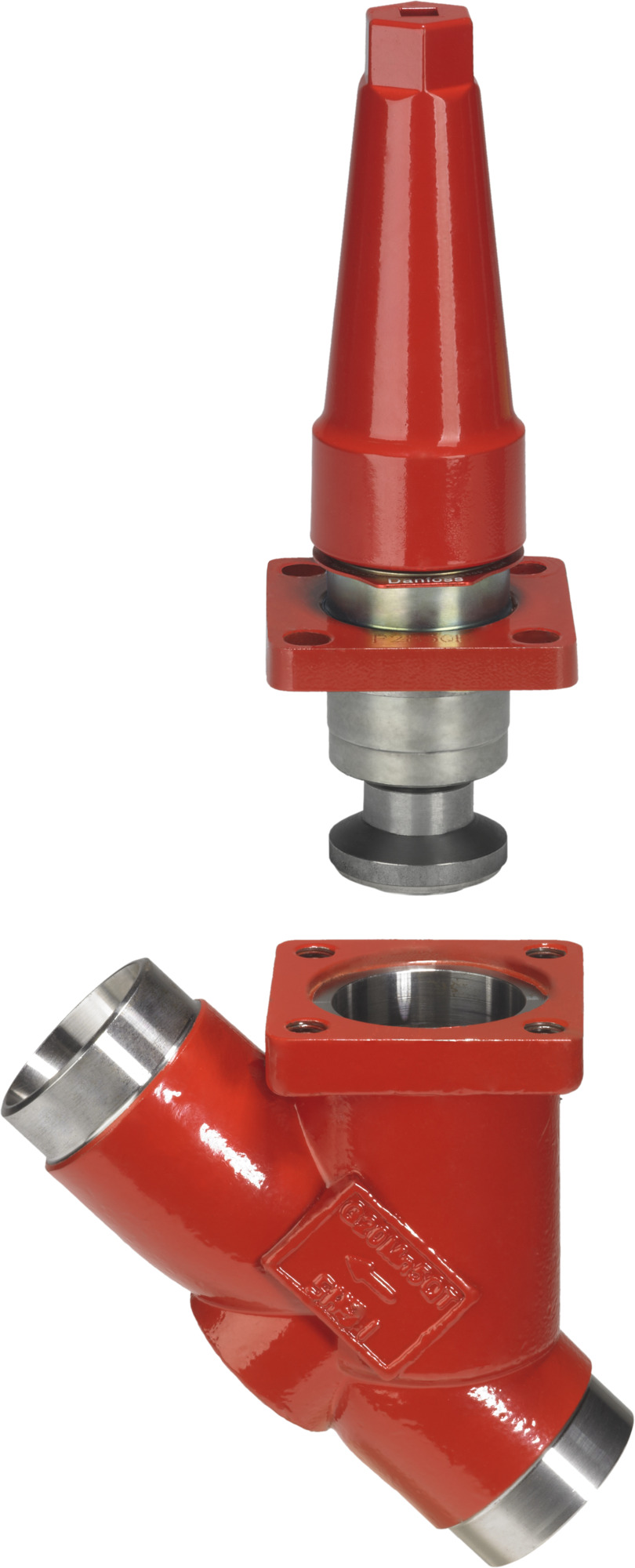

| Family : | SVA angle; SVA straight |
|---|
General Information
| Equipment : | Cap | Type : | Top complete |
|---|---|---|---|
| Used For : | SVA-S 15, SVA-S 20 |
Logistical Information
| Commodity Code : | 84819000 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428485937 | Gross Weight : | 1.016 kg |
Measurements
| Net Weight : | 0.72 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1150, R1233zd(E), R1234yf, R1234ze(E), R1270, R1336mzz(Z), RE170 |
|---|
Temperature
| Max Temperature : | 150 °C | Min Temperature : | -60 °C |
|---|---|---|---|
| Temperature Range : | -60-150 °C |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| shut-off-valve-type-sva-s-and-sva-l-with-butt-weld-connection-f-ast-ai365651114199en-000201.pdf | Technical Literature | 4.36 MB | |
| one-platform---multiple-options-svl-line-components---part-of-the-flexlinetm-product-range--ast-ad154286418608en-000401.pdf | Brochures | 718.47 KB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| stop-valves-and-regulating-valves-sva-reg-10-40-ast-an10608641526101-000101.pdf | Installation Manual | 362.74 KB | |
| svl-flexline-code-number-selection-guide-ast-ad176886419937en-020808.pdf | Brochures | 3.16 MB | |
| one-flexline-platform-multiple-options-icv-icf-svl--ast-ad154286418480en-000301.pdf | Brochures | 906.46 KB | |
| shut-off-valve-type-sva-s-and-sva-l-ast-ai242886444057en-001301.pdf | Technical Literature | 5.06 MB | |
| function-module-type-sva-s-and-sva-l-with-butt-weld-connection-f-ast-ai365651114199en-000101.pdf | Technical Literature | 4.33 MB |
