Description

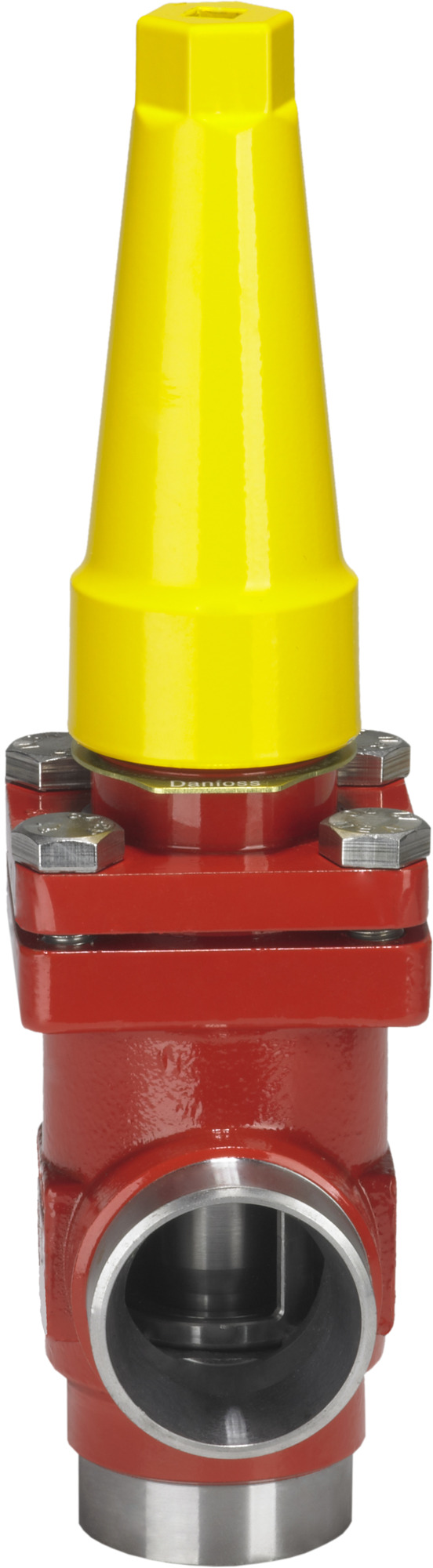

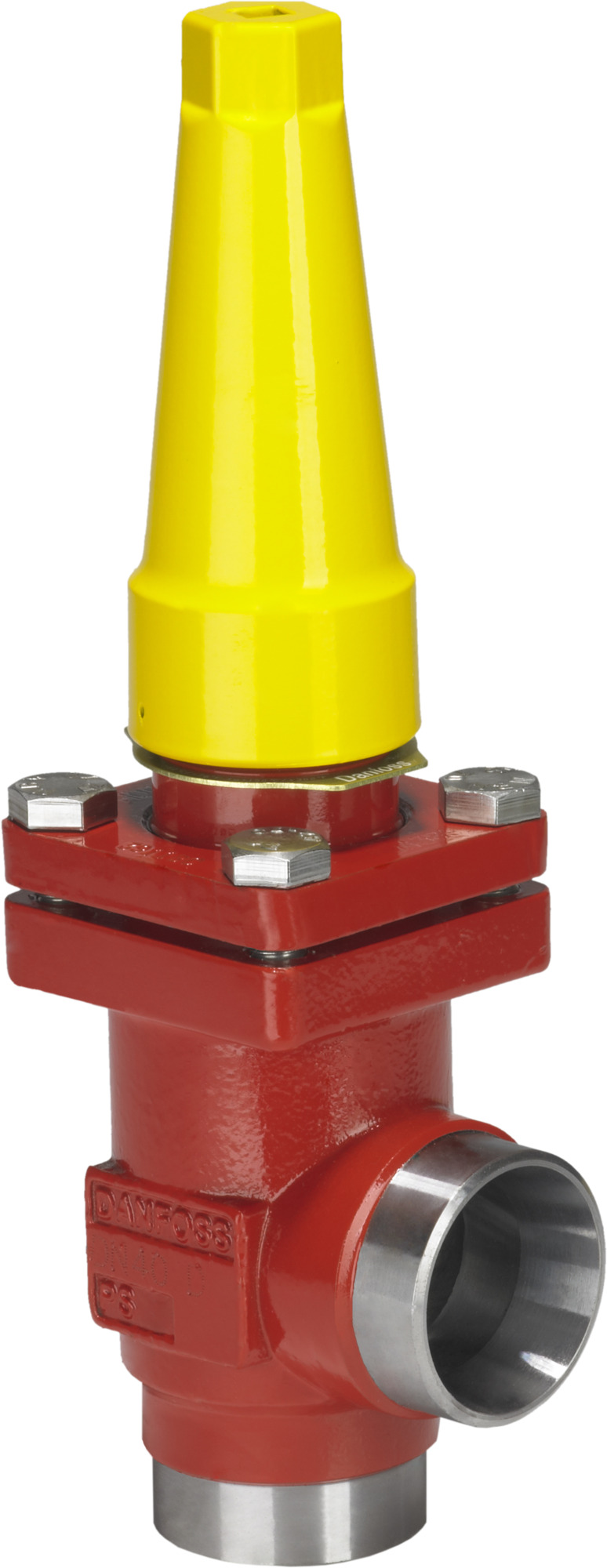

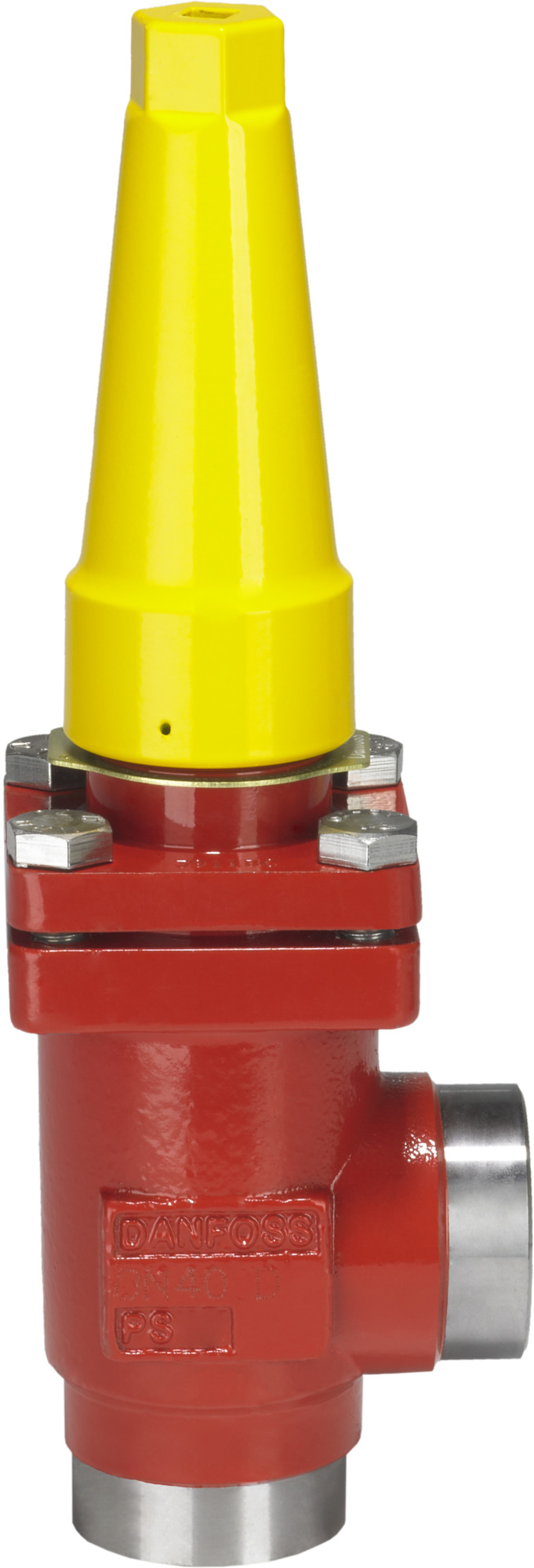

REG-SB 32 A ANG VALVE CAP PS52
REG-SB 32 A ANG VALVE CAP
Product number:
148B5503
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Additional Info
| Family : | REG angle |
|---|
Connections
| Inlet Connection Size : | 1 1/4 in, 32.0 mm | Inlet Type : | Butt weld |
|---|---|---|---|
| Outlet Connection Size : | 1 1/4 in, 32.0 mm | Outlet Type : | Butt weld |
General Information
| Equipment : | Cap |
|---|
Kv Values
| Kv Value : | 20.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428474030 | Gross Weight : | 3.678 kg |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|
Measurements
| Net Weight : | 3.19 kg | Weight : | 3.19 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, CRN, EAC, LLC CDC TYSK, UKCA |
|---|
Temperature
| Temperature Range : | -60-150 °C |
|---|
Valves
| CV Value : | 23.200 gal/min | Direction : | Angleway |
|---|---|---|---|
| Flow Area : | 0.823 in², 531.0 mm² | Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1, 2 |
Spare Part
Product Number: 148B6062
Manufacturer Code: 148B6062
Product Number: 148B6052
Manufacturer Code: 148B6052
