Description

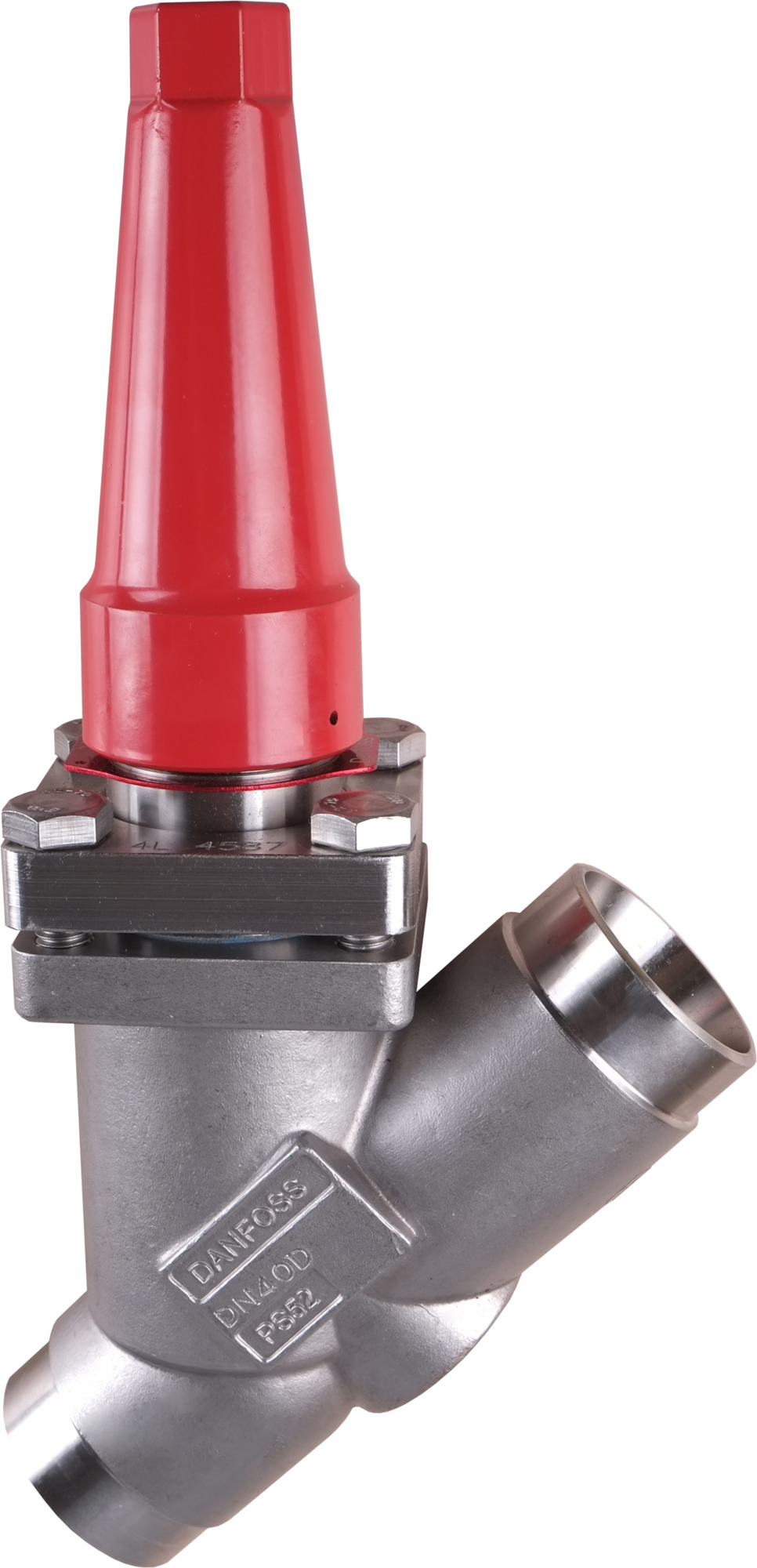

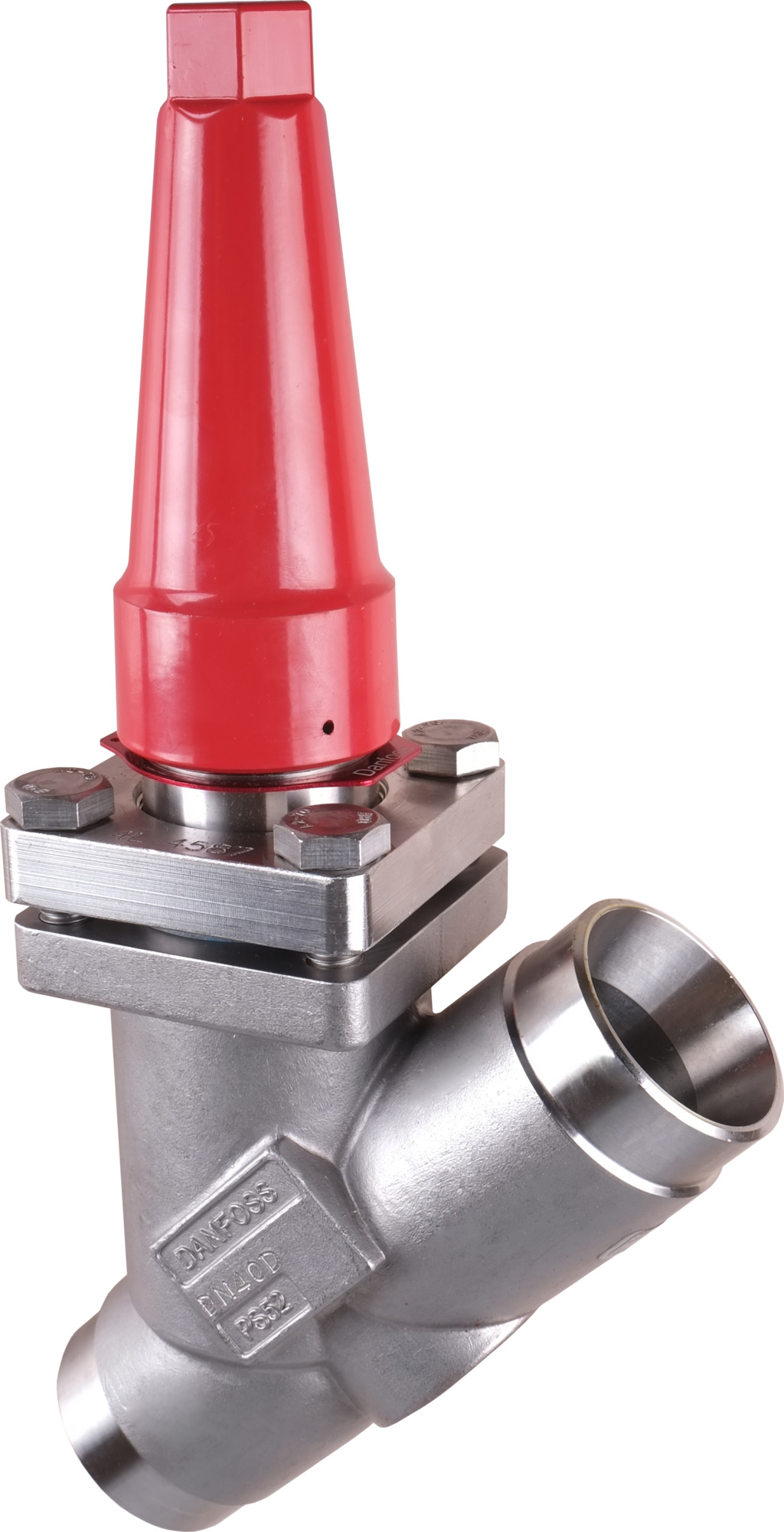

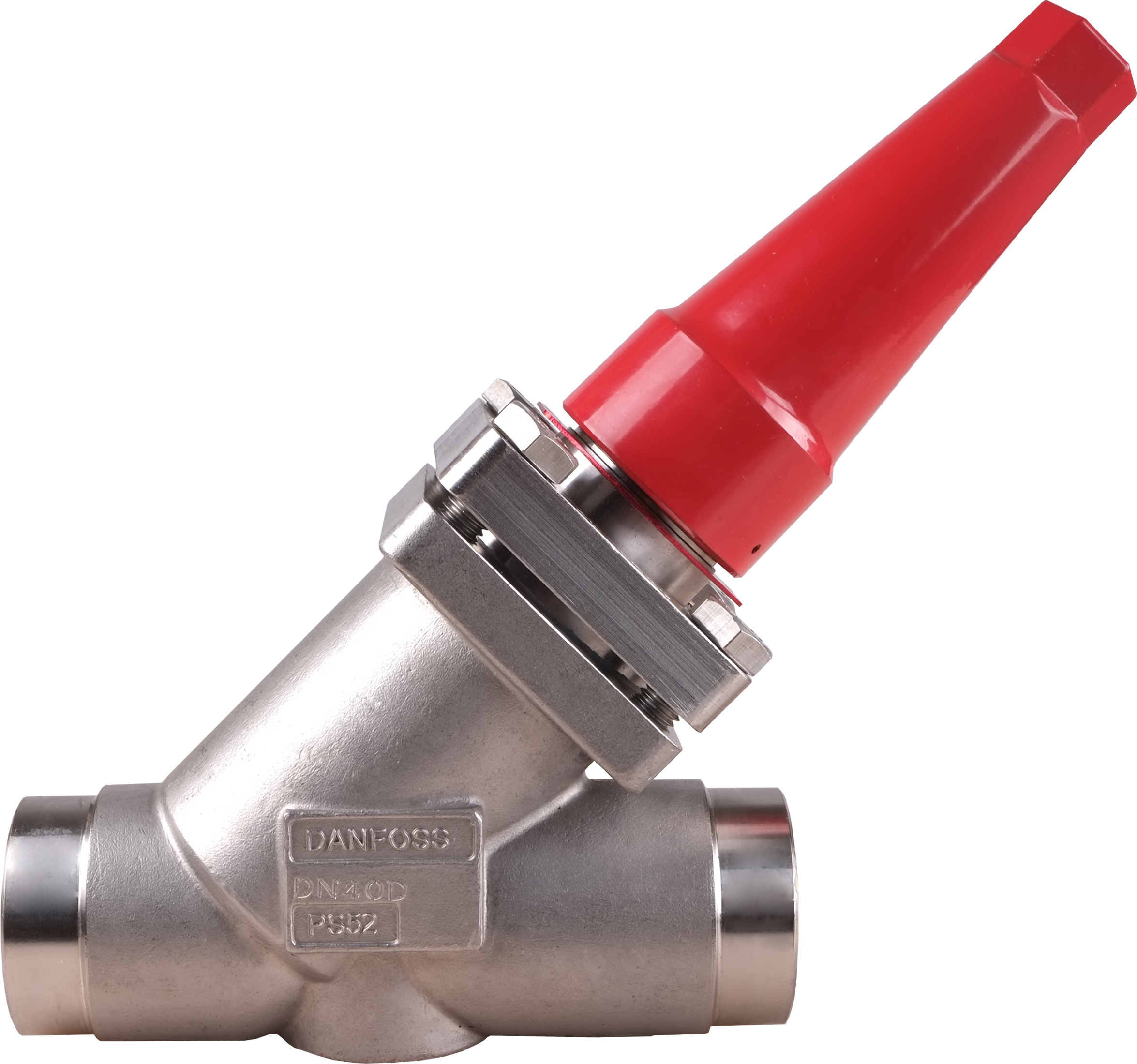

SVA-S SS 65 D STR Stop Valve Cap PS52
S/S SVA 65 S/TStop Valve
Product number:
148B5850
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Additional Info
| Family : | SVA SS straight |
|---|
Connections
| Inlet Connection Size : | 2 1/2 in, 65.0 mm | Inlet Type : | Butt weld |
|---|---|---|---|
| Outlet Connection Size : | 2 1/2 in, 65.0 mm | Outlet Type : | Butt weld |
General Information
| Equipment : | Cap |
|---|
Kv Values
| Kv Value : | 97.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818099 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428843362 | Gross Weight : | 7.681 kg |
Material
| Body Material : | Stainless Steel | Connection Material : | Stainless Steel |
|---|
Measurements
| Weight : | 7.09 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1150, R1233zd(E), R1234yf, R1234ze(E), R1270, R1336mzz(Z), RE170 |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK, UKCA |
|---|
Temperature
| Temperature Range : | -60-150 °C |
|---|
Valves
| CV Value : | 112.520 gal/min | Direction : | Straightway |
|---|---|---|---|
| Flow Direction : | Bi-flow | Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| industrial-refrigeration-stainless-steel-valves-sva-s-ss-reg-sa-sb-ss-sca-x-ss-chv-x-ss-fia-ss-ofv-ss-snv-ss-evrs-evrst-ast-ai235186440137en-021101.pdf | Technical Literature | 6.49 MB | |
| brochure-svl-flexline-code-number-selection-guide-en-ast-ad176886419937en-020808.pdf | Brochures | 3.84 MB | |
| shut-off-valve-type-sva-s-ss-and-sva-l-ss-ast-ai234986440234en-000901.pdf | Technical Literature | 4 MB | |
| shutoff-valves-in-stainless-steel-svasl-ss-15150-ast-an21978642987202-000601.pdf | Installation Manual | 760.12 KB |
Spare Part

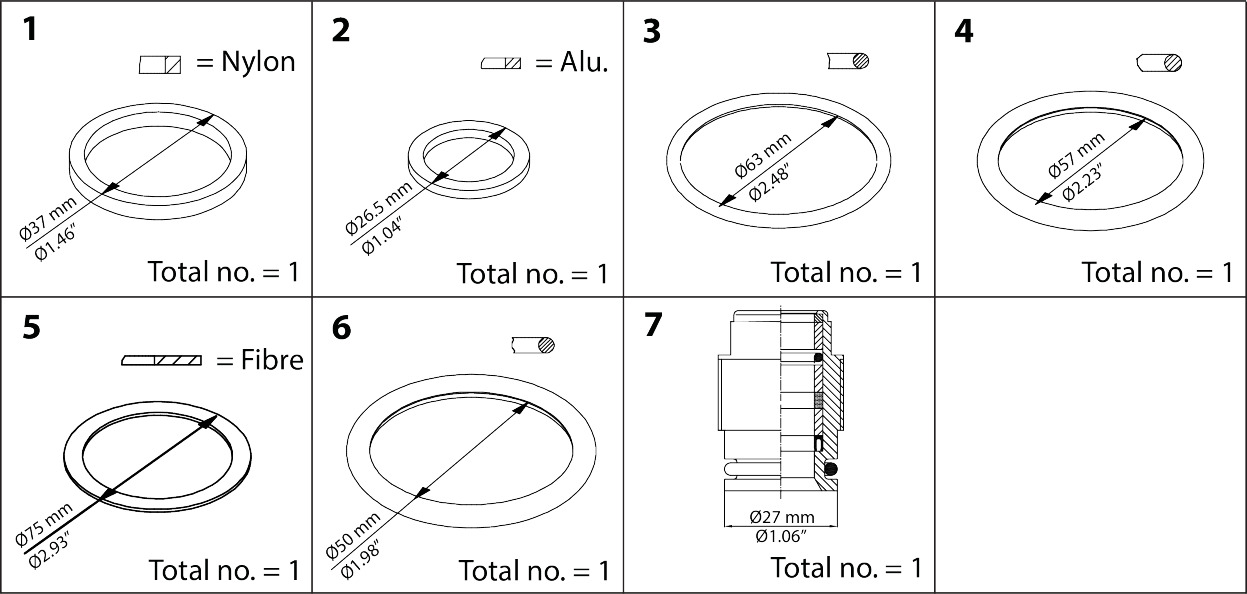

Product Number: 148B6064
Manufacturer Code: 148B6064

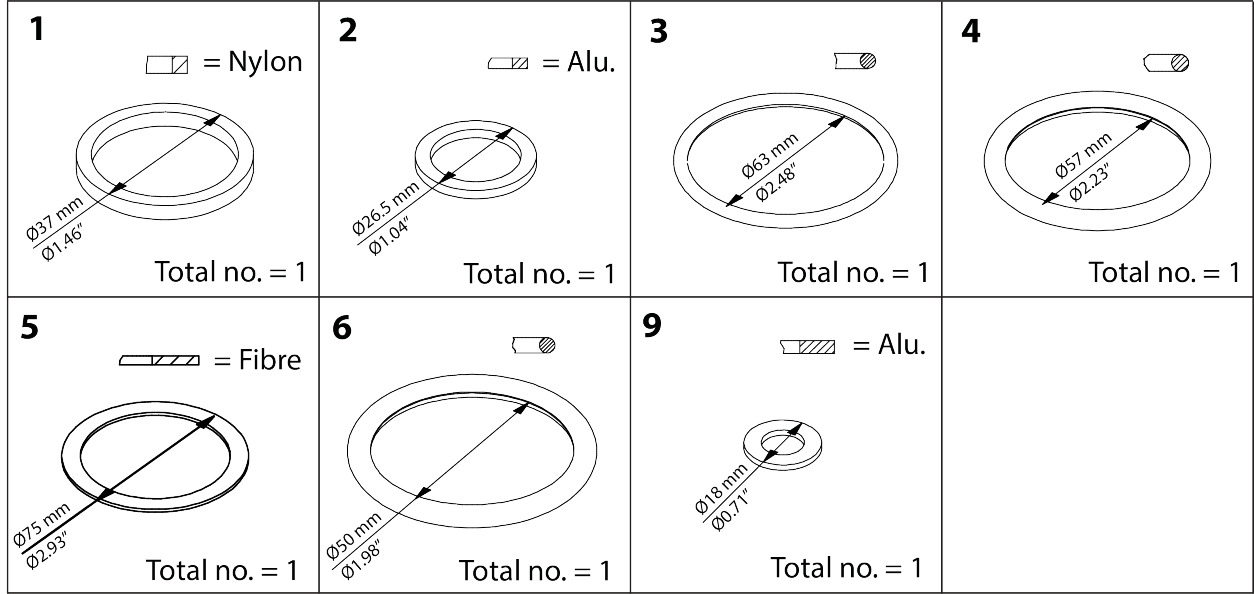

Product Number: 148B6054
Manufacturer Code: 148B6054

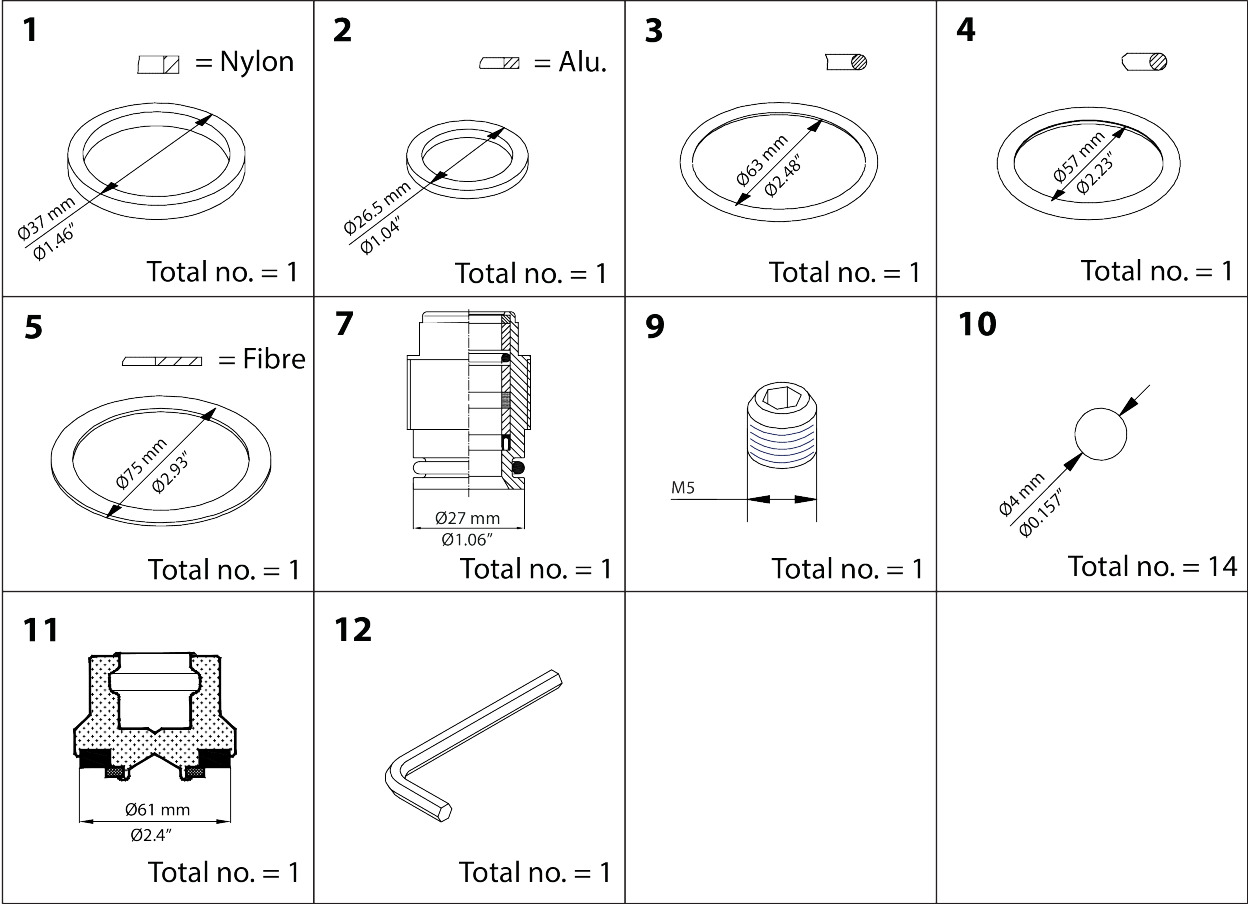

Product Number: 148B6154
Manufacturer Code: 148B6154
