Description

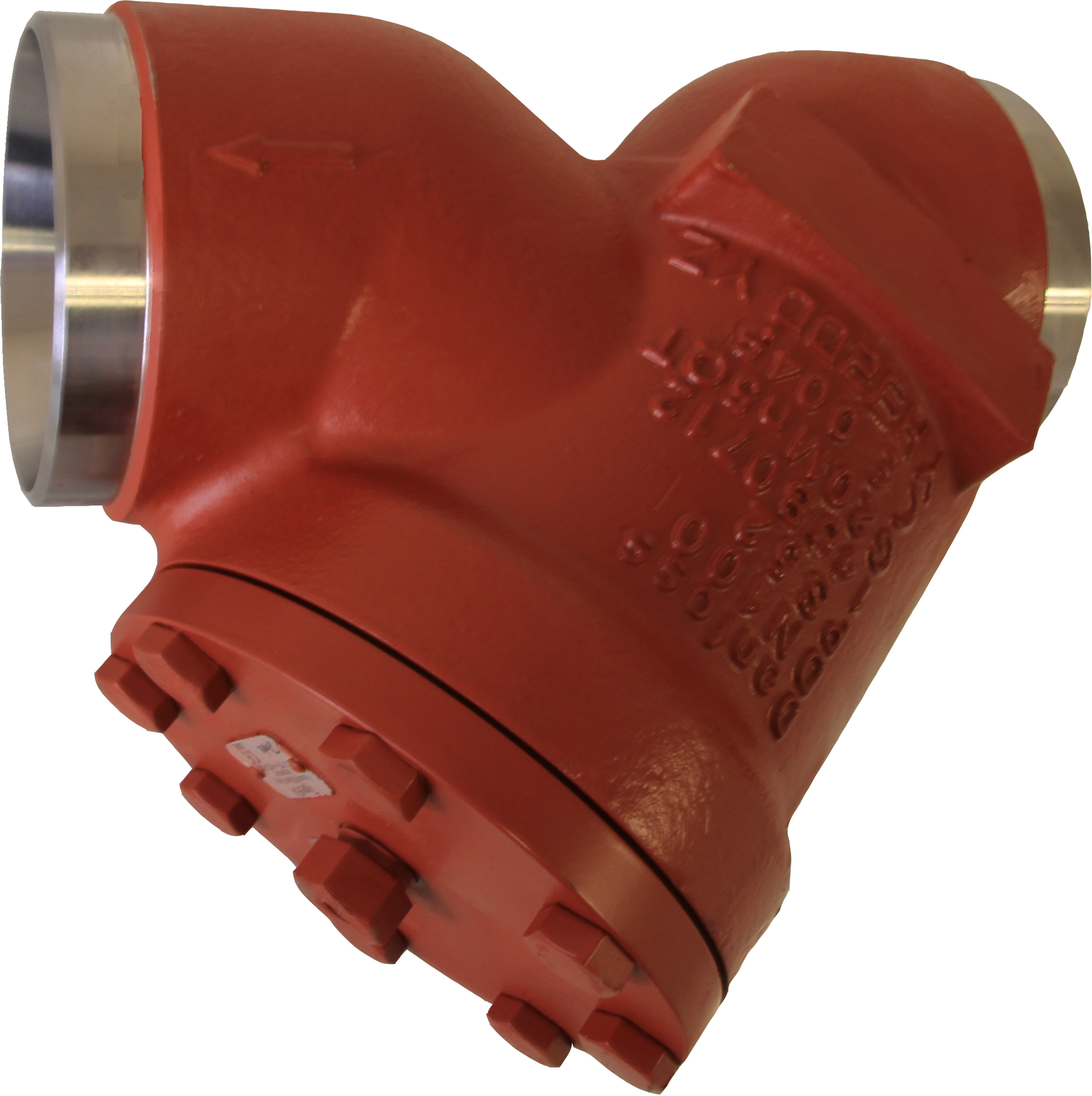

Danfoss FIA80 Strainer Housing
Product number:
148B5908
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Compressor
| PED Category : | II |
|---|
Connections
| Connection Standard : | ASME B 36.10M SCHEDULE 40 | Inlet Type : | Butt weld |
|---|---|---|---|
| Outlet Type : | Butt weld |
General Information
| Equipment : | Cover | Type : | FIA 80 |
|---|
Kv Values
| Kv Value µ150 plain : | 80.0 m³/h | Kv Value µ250 Pleated : | 108.0 m³/h |
|---|---|---|---|
| Kv Value µ250 plain : | 82.6 m³/h | Kv Value µ500 Pleated : | 113.1 m³/h |
| Kv Value µ500 plain : | 86.5 m³/h |
Logistical Information
| Commodity Code : | 84219990 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428476362 | Gross Weight : | 10.938 kg |
| Packaging Height : | 150 mm | Packaging Length : | 385 mm |
| Packaging Width : | 290 mm |
Material
| Connection Material : | Steel |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R503, R507A, R508B, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1150, R1233zd(E), R1234yf, R1234ze(E), R1270, R1336mzz(Z), RE170 |
|---|
Standards
| Approval : | CE, UKCA |
|---|
Valves
| Direction : | Straightway | Flow Direction Indicator : | Embossed 1-way arrow |
|---|---|---|---|
| Fluid Group : | 1, 2 | Valve Version : | Standard version |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| strainer-fia-ast-ai222586432958en-us1102.pdf | Technical Literature | 1.55 MB |
