Description
DSV1 D25/ND20, DUAL STOPVALVE+KIT

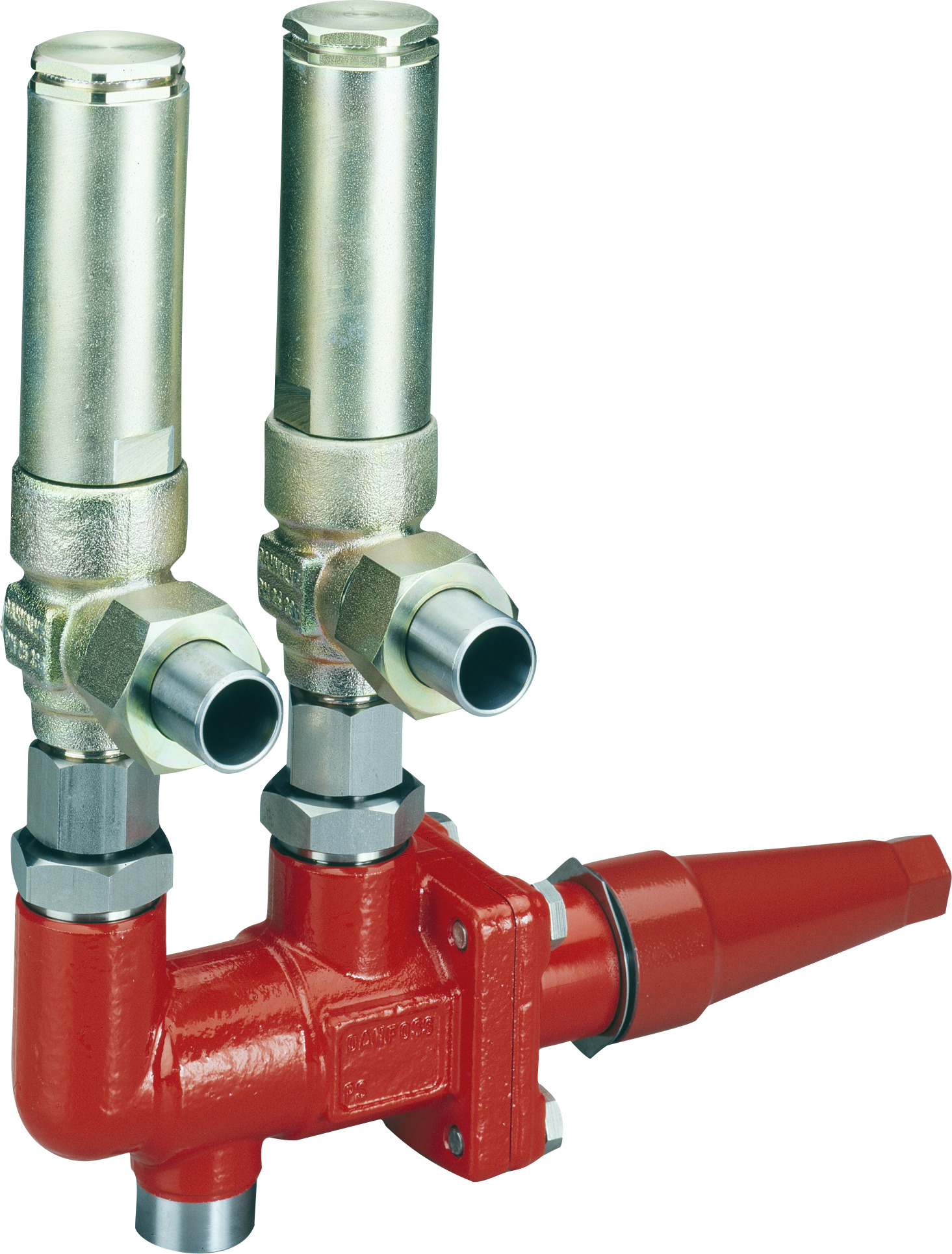

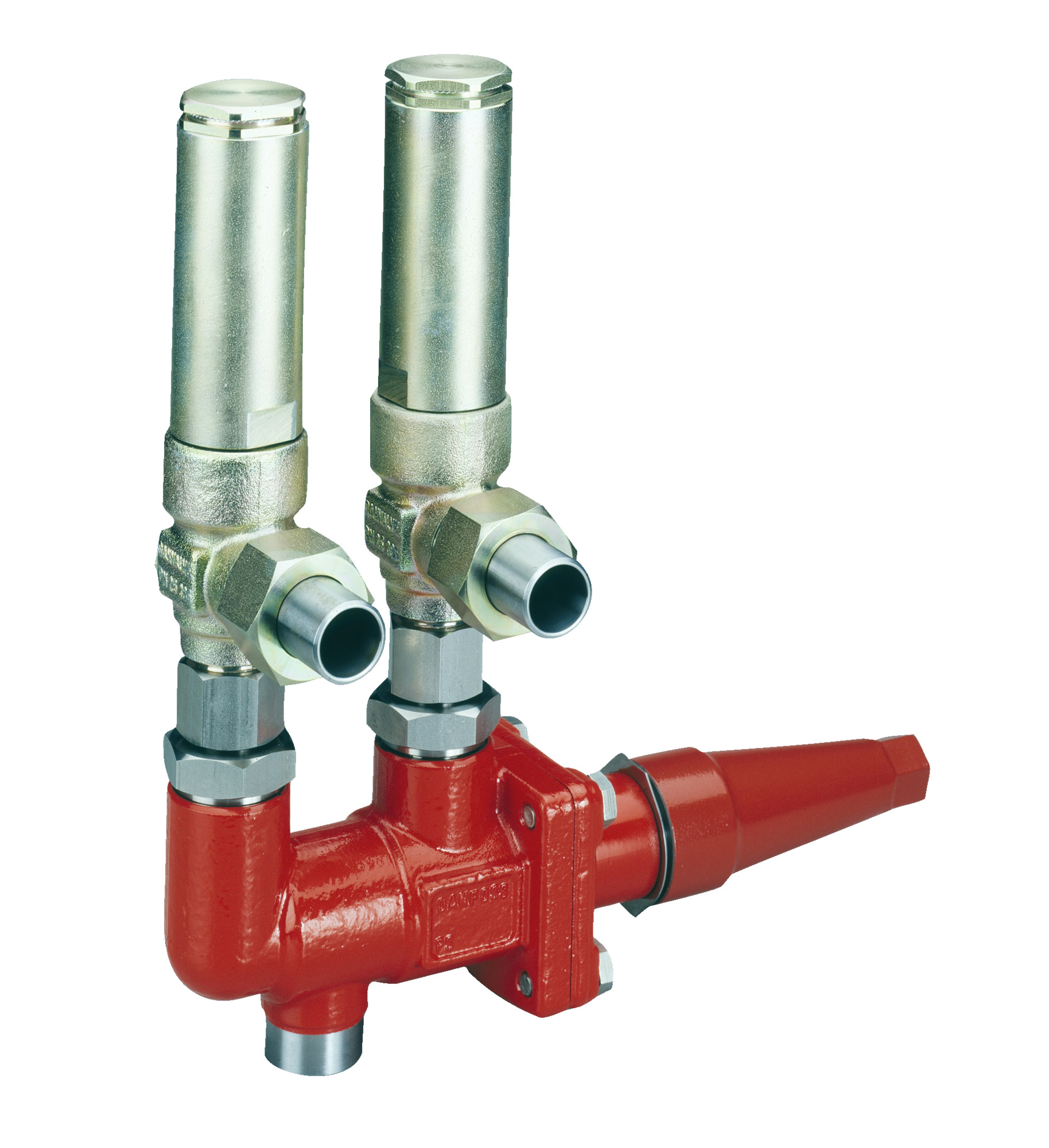

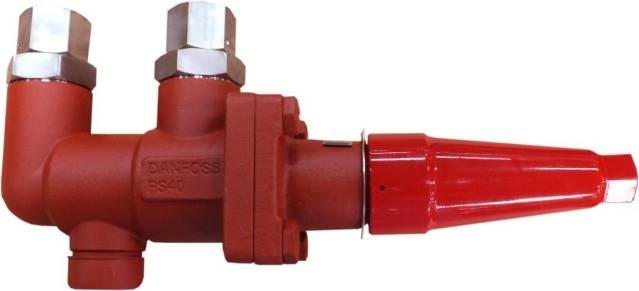

DSV1 D25/DN20 DUAL STOP VALVE+KIT
Product number:
148F3005
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Connections
| Inlet Connection Size : | 1 in, 25.0 mm | Inlet Type : | Weld branche |
|---|---|---|---|
| Outlet Connection Size : | 3/4 in | Outlet Type : | G |
General Information
| Equipment : | Cap | Parts Included : | Incl.Kit |
|---|---|---|---|
| Type : | DSV 1 |
Kv Values
| Kv Value : | 17.500 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428242547 | Gross Weight : | 4.948 kg |
Measurements
| Weight : | 4.15 kg |
|---|
Pressure
| Max Operating Pressure : | 40.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK, UKCA |
|---|
Temperature
| Temperature Range : | -50-100 °C |
|---|
Valves
| CV Value : | 20.300 gal/min | Direction : | Threeway |
|---|---|---|---|
| Fluid Group : | 1 |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| manufacturer-s-declaration-danfoss-md-033f0686-ao-ast-id365946903774-0801.pdf | Conformity Declaration | 488.98 KB | |
| change-over-valve-type-dsv-10-dsv-1-and-dsv-2-ast-ai183186425447en-001001.pdf | Technical Literature | 3.28 MB | |
| eu-declaration-danfoss-eu-033f0685-ap-ast-id365934730359-0601.pdf | Conformity Declaration | 3.53 MB | |
| changeover-valves-dsv-1-dsv-2-ast-an14978641682001-000501.pdf | Installation Manual | 676.92 KB |
