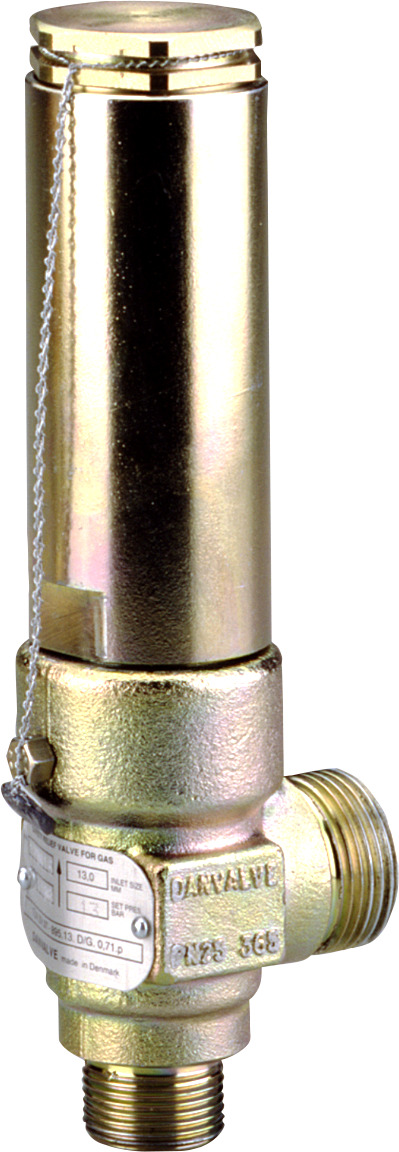

"SFV 20 T 324 SAFETY VALVE 24 BAR"
Item Number:
2416+296
| Product Group : | Flow Controls - Other |
|---|---|
| Refrigerant : | R22, R32, R45, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R1233zd(E), R1234yf, R1234ze(E) |
General Information
| Product Group : | Flow Controls - Other |
|---|---|
| Type : | SFV 20 |
Connections
| Connection Internal/External : | External |
|---|---|
| Connection Size : | 3/4 in, 20 mm |
| Connection Type : | G |
| Inlet Connection Size : | 1 1/4 in |
| Outlet Connection Size : | 1 1/2 in |
Logistical Information
| Commodity Code : | 84814010 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428192156 |
| Gross Weight : | 3.984 kg |
Measurements
| Weight : | 3.97 kg |
|---|
Pressure
| Pressure Setting : | 24 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R45, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, EAC, UKCA |
|---|
Temperature
| Temperature Range : | -30-100 °C |
|---|
Valves
| Direction : | Angleway |
|---|---|
| Flow Area : | 0.394 in², 254.0 mm² |
| Flow Diameter : | 0.709 in, 18 mm |
| Fluid Group : | 1 |
Product information
SFV 20 - 25 are standard, back pressure dependent safety relief valves in angle-wayn execution, specially designed for protection of vessels and other components against excessive pressure.
The valve is designed to meet the strict quality demands and safety requirements for refrigeration installations, specified by the international classification societies. The valve is recommended as an external and internal safety relief valve in refrigeration plants. The spring housing is closed tightly to
avoid refrigerant leakage.
Applicable for the refrigerants HCFC, HFC, R717 (Ammonia), R744 (CO2) within a temperature range of –30°C / +100°C (–22°F /+212°F).
