Description

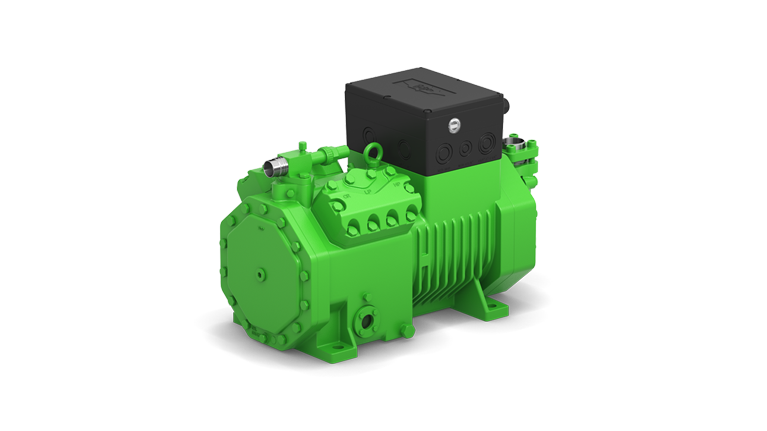

Bitzer Compressor 2DES-3Y-40S
Product number:
2DES-3Y-40S
| Product Group : | Comp Semi - Bitzer |
|---|
General
| Product Group : | Comp Semi - Bitzer |
|---|
Additional Info
| Additional Info : | Discharge shut-off valve - Standard, Motor protection - SE-B1, Motor version - 1, Suction shut-off valve - Standard |
|---|
Compressor
| Displacement at 50Hz : | 13.42 m³/h | Displacement at 60Hz : | 16.20 m³/h |
|---|
Connections
| Discharge Line Connection Size : | 16 mm - 5/8 in | Suction Line Connection Size : | 22 mm - 7/8 in |
|---|
Electrical
| Max Operating Current : | 8.6 A | Starting Current : | 37.0 A |
|---|
General Information
| Number Of Cylinders : | 2 | Stroke : | 39.3 mm |
|---|---|---|---|
| Vibration : | Standard |
Measurements
| Weight : | 77 kg |
|---|
Motor
| Motor Voltage : | 380-420 V |
|---|
Oil
| Oil Charge : | 1.50 dm³ | Oil Filled : | BSE32 (Standard) |
|---|
Pressure
| Pressure : | 19 / 32 Bar |
|---|
Sound Power/Pressure
| Sound Power Level (Low/High) : | 66.5 dB(A) | Sound Pressure Level @ 1 Meters : | 59.0 dB(A) |
|---|
Standards
| Enclosure Rating : | IP66 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| bitzer-ecoline-recips-2020-11-kp-100-1-en-ast-2203418.pdf | Technical Literature | 11.13 MB |
