Description

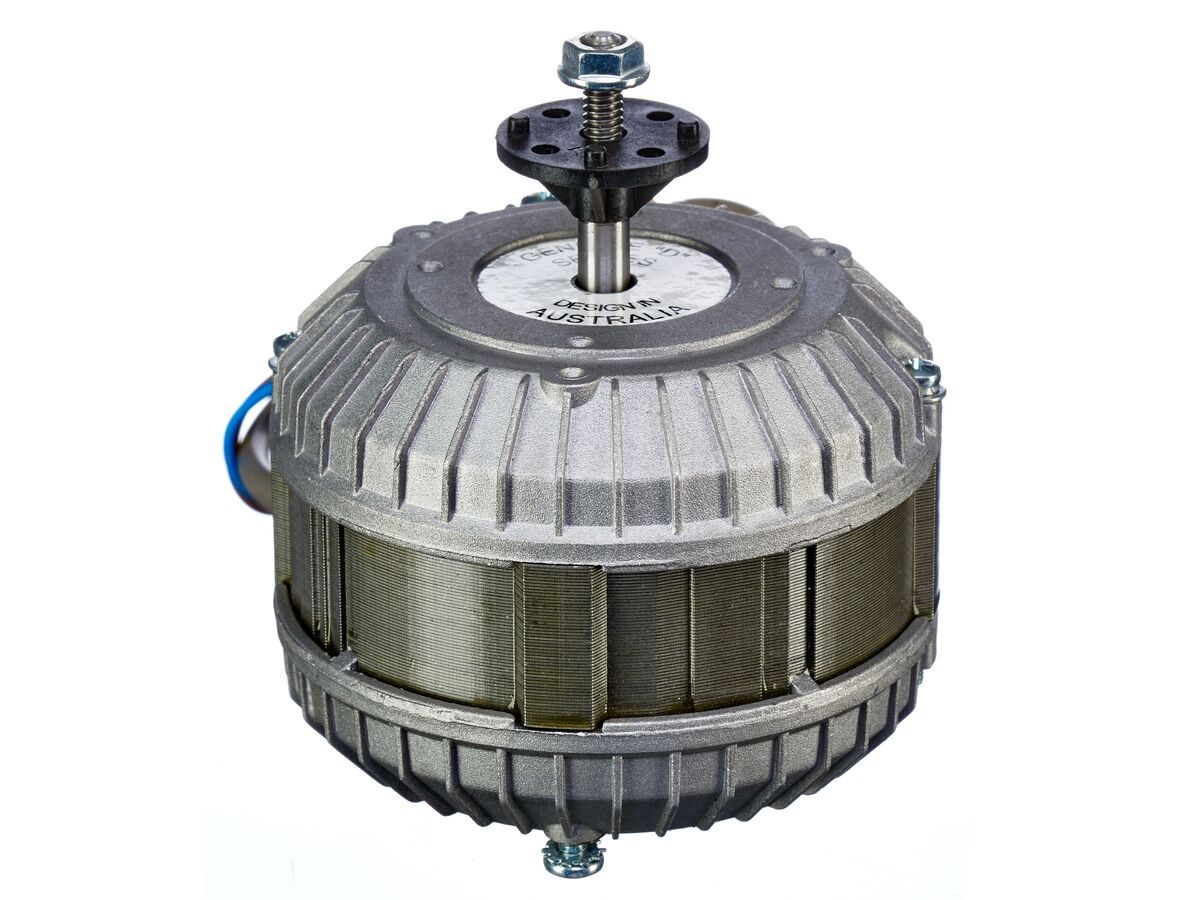

Fasco Fan Motor 50D509-11A
Product number:
50D509-11AT
| Product Group : | Motors - Shaded Pole |
|---|
General
| Product Group : | Motors - Shaded Pole |
|---|
Cable
| Cable Length : | 750 mm |
|---|
Electrical
| Current : | 0.45 A | Power Supply : | 380-415/3/50 V/Ph/Hz |
|---|
Fan
| Fan Speed : | 1270 r/min | Shaft Diameter : | 6.35 mm |
|---|---|---|---|
| Shaft Length : | 7.94 mm |
General Information
| Number Of Poles : | 4 |
|---|
Measurements
| Height : | 102 mm | Length : | 102 mm |
|---|---|---|---|
| Width : | 70 mm |
Temperature
| Operating Temperature Range : | -30 °C to 70 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| 50d509-11at-ast-1891110.pdf | Brochures | 315.99 KB |
