Description

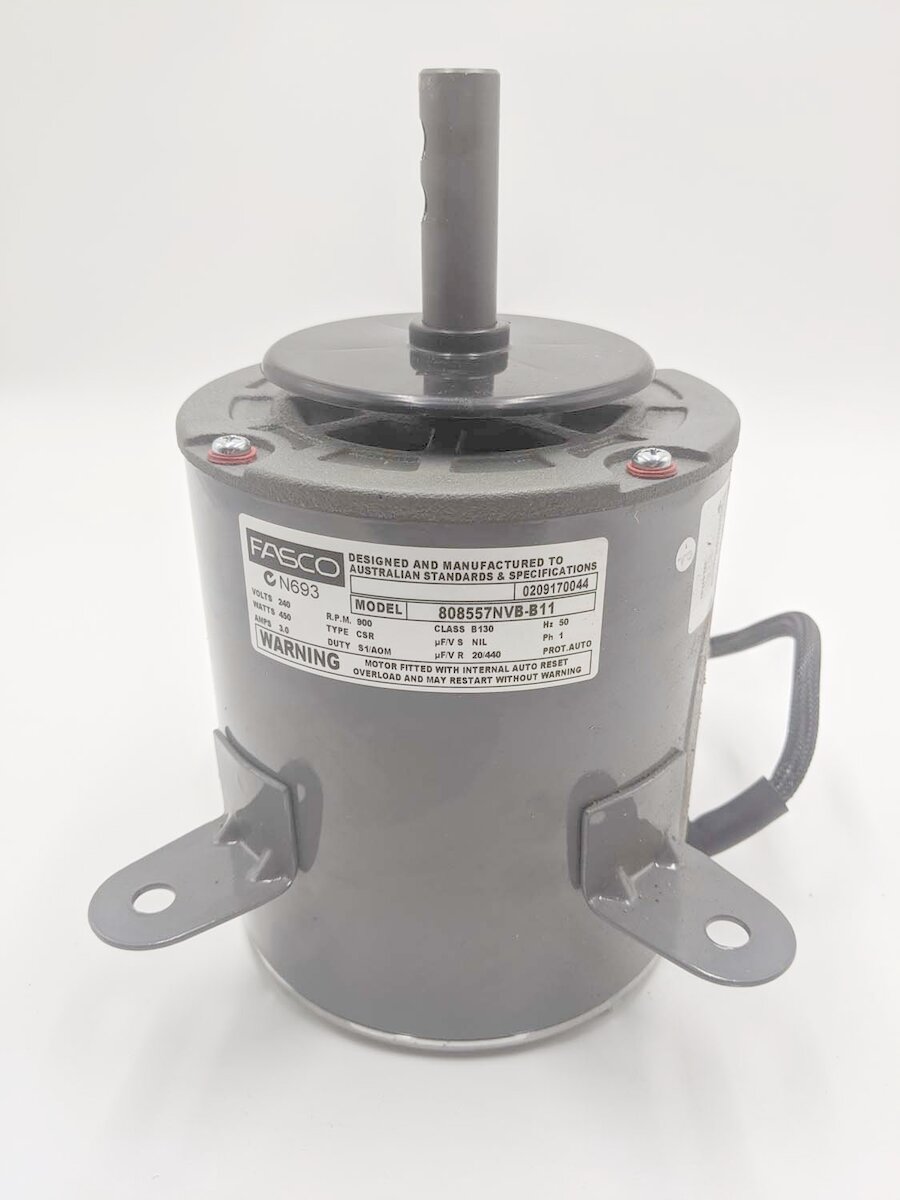

Fasco Fan Motor 808557NVB-B11
Product number:
808557NVB-B11
| Product Group : | Motors - 38-48 & 56 Frame |
|---|
General
| Product Group : | Motors - 38-48 & 56 Frame |
|---|
Cable
| Cable Length : | 2300 mm |
|---|
Electrical
| Capacitor : | 20 µF | Current : | 3 A |
|---|---|---|---|
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Speed : | 900 r/min | Shaft Diameter : | 19 mm |
|---|---|---|---|
| Shaft Length : | 57.6 mm |
Temperature
| Operating Temperature Range : | -30 °C to 70 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| 808557nvb-b11-ast-1891117.pdf | Brochures | 56.67 KB |
