Description

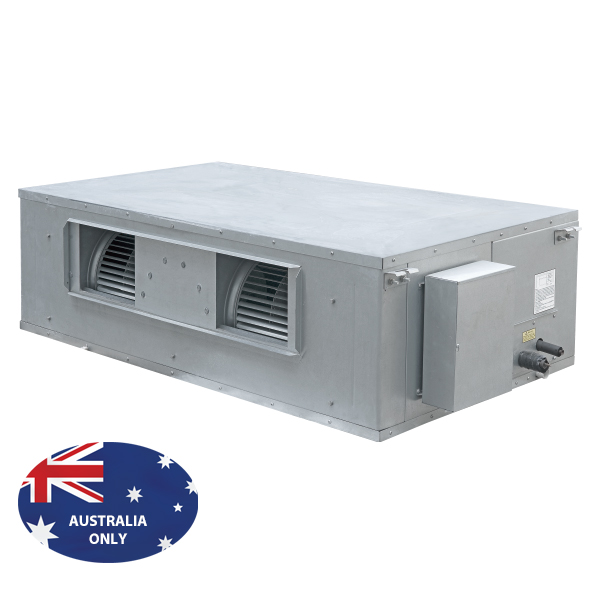

Gree Ducted 20kW Indoor 3ph R410a
Product number:
AC5720/I
| Cooling Capacity : | 20 kW |
|---|---|
| EER : | 2.55 |
| Heating Capacity : | 22.4 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Product Group : | Ducted Systems - Gree |
| Refrigerant : | R410A |
| Voltage : | 230 V |
General
| Product Group : | Ducted Systems - Gree |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
Air Volume/Air Flow
| Air Volume : | 1222 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 20 kW | Cooling Capacity (Min/Rated/Max) : | 10 /20 /25 kW |
|---|
Electrical
| Max Current : | 11.3 A | Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|---|---|
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.25 | EER : | 2.55 |
|---|
General Information
| Condensate Water Pump Provided : | No | Model Number : | AC5720/I |
|---|---|---|---|
| Remote Control : | ya1PF |
Heating Capacity
| Heating Capacity : | 22.4 kW | Heating Capacity (Min/Rated/Max) : | 10/22.4/30 kW |
|---|
Measurements
| Depth : | 870 mm | Height : | 440 mm |
|---|---|---|---|
| Net Weight : | 110 kg | Width : | 1690 mm |
Pipes
| Pipe Dimension : | 3/4 in, 3/8 in, 9.52 mm, 19.05 mm |
|---|
Refrigerant
| Refrigerant : | R410A | Refrigerant Pipe Size : | 3/8-3/4 in, 9.52-19.05 mm |
|---|
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 52 dB(A) |
|---|
Wire
| Wire Diameter Interconnection Cable : | 2C + E |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| gree-3phase-ducted-brochure-en-ast-319461.pdf | Brochures | 1.94 MB |
