Description

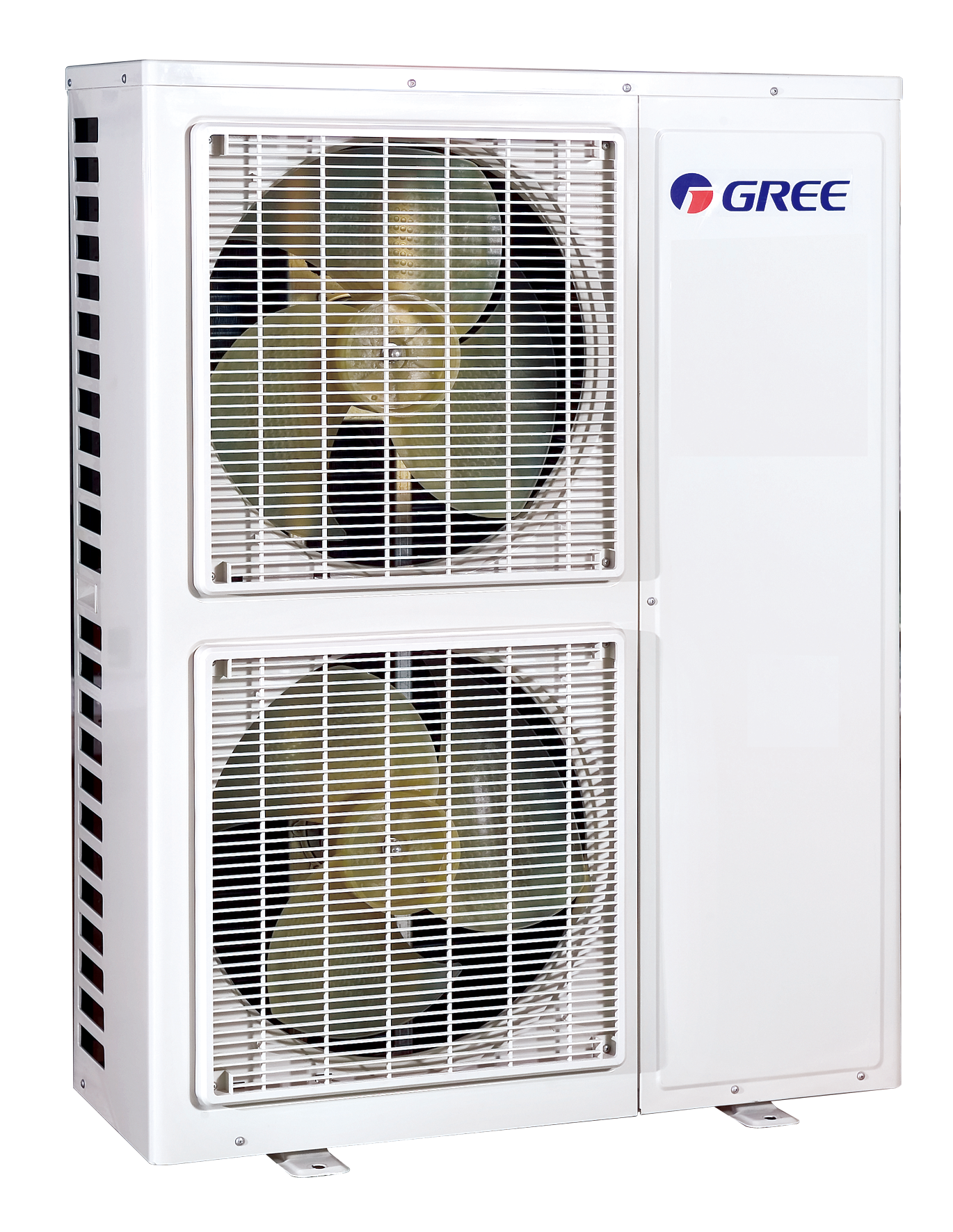

Gree 3-Phase Inverter Ducted Outdoor 20kw
Product number:
AC5720/O
| Cooling Capacity : | 20 kW |
|---|---|
| Heating Capacity : | 22.4 kW |
| Indoor/ Outdoor/ Other : | Outdoor |
| Product Group : | Ducted Systems - Gree |
| Refrigerant : | R410A |
| Voltage : | 415 V |
General
| Product Group : | Ducted Systems - Gree |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Outdoor | Indoor Units Connectable (Quantity) : | 1 |
|---|---|---|---|
| Single Split / Multi Split : | Single split |
Cooling Capacity
| Cooling Capacity : | 20 kW |
|---|
Electrical
| Power Consumption Cooling : | 6.06 kW | Power Consumption Heating : | 6 kW |
|---|---|---|---|
| Power Input (Heating/Cooling) : | 6/6.06 kW | Power Supply : | 415/3/50 V/Ph/Hz |
| Recommended Fuse : | 32 A | Voltage : | 415 V |
Fan
| Number Of Fans : | 2 |
|---|
General Information
| Model Number : | AC5720/O |
|---|
Heating Capacity
| Heating Capacity : | 22.4 kW |
|---|
Measurements
| Depth : | 460 mm | Height : | 1615 mm |
|---|---|---|---|
| Weight : | 155 kg | Width : | 940 mm |
Pipes
| Max Height Difference : | 30 m | Max Piping Length : | 50 m |
|---|---|---|---|
| Pipe Dimension : | 3/4 in, 3/8 in, 9.52 mm, 19.0 mm | Total Pipe Length Range : | 50 m |
Refrigerant
| Additional Charge : | 54 g/m | Refrigerant : | R410A |
|---|---|---|---|
| Refrigerant Charge : | 6.7 kg | Refrigerant Pipe Size : | 3/8-3/4 in, 9.52-19.05 mm |
| Refrigerant precharged up to : | 30 m |
Sound Power/Pressure
| Sound Pressure Level : | 60 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | 16 - 30 °C | Temperature Range Heating : | 16 - 30 °C |
|---|
