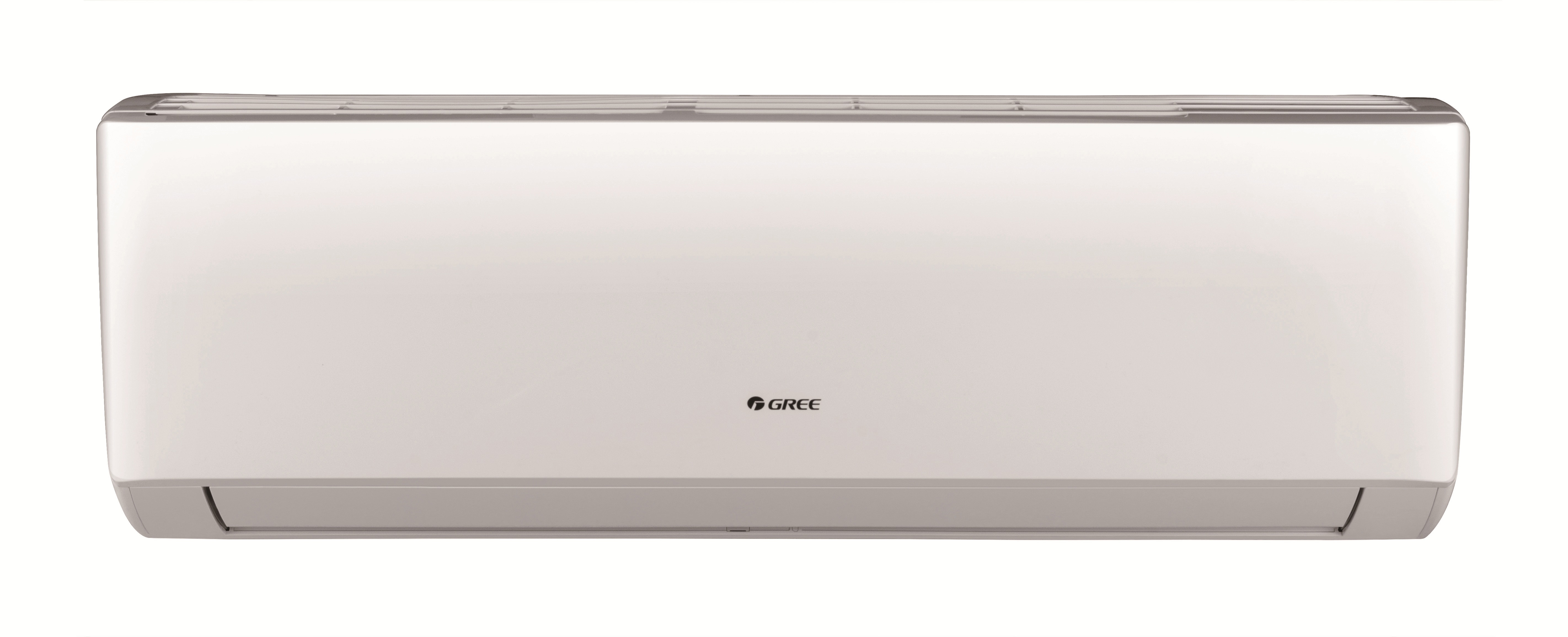

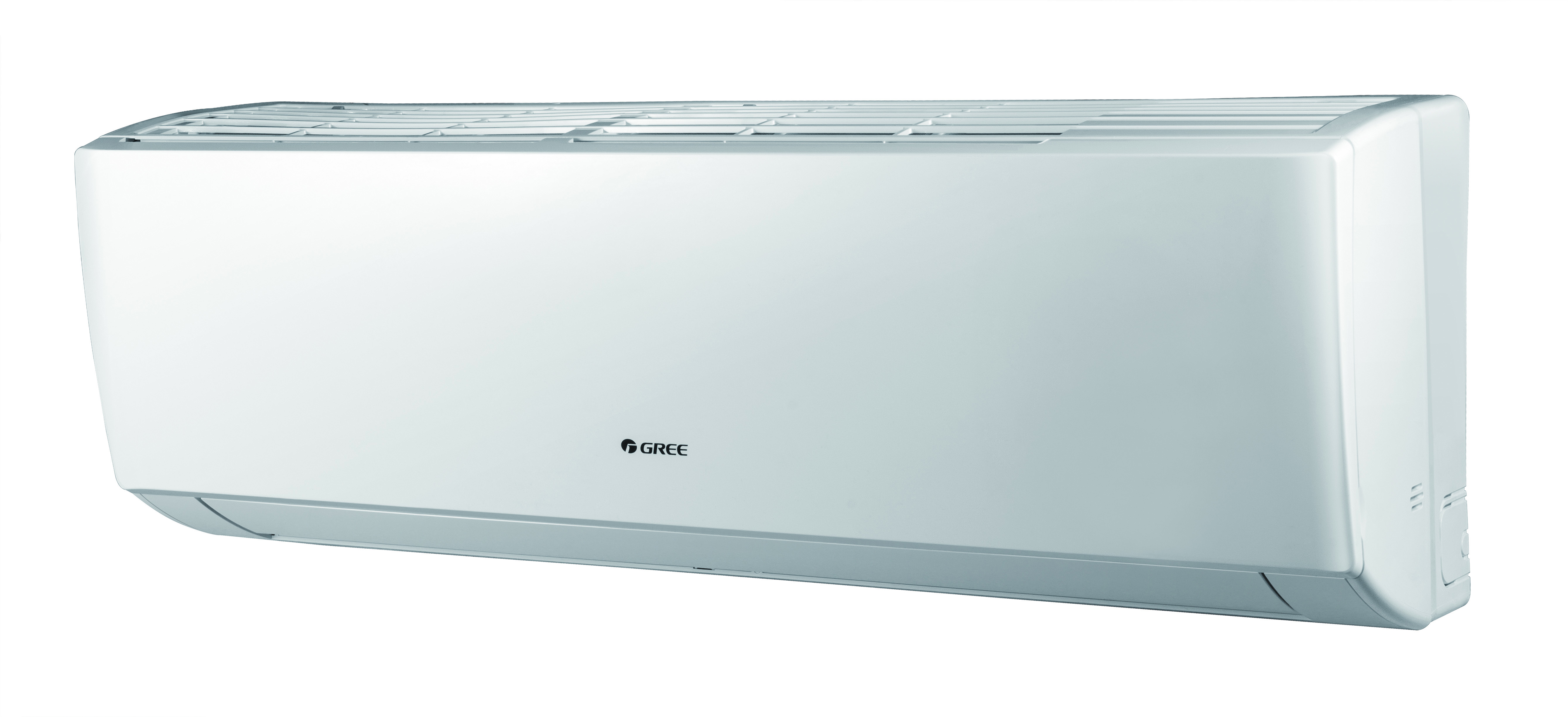

Gree Lomo 3.5kW Multi High Wall Indoor R410a
Item Number:
AC7313/I
| COP : | 3.85 |
|---|---|
| Cooling Capacity : | 3.4 kW |
| EER : | 3.84 |
| Heating Capacity : | 4 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Pre Equiped Wifi : | Optional |
| Product Group : | Hi-wall - Gree Lomo / Pular |
| Refrigerant : | R410A |
| Voltage : | 230 V |
General Information
| Condensate Water Pump Provided : | No |
|---|---|
| Model Number : | AC7313/I |
| Moisture Removal Volume : | 1.4 L/ph |
| Pre Equiped Wifi : | Optional |
| Product Group : | Hi-wall - Gree Lomo / Pular |
| Remote Control : | YAG1FB4 / XK76 |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow (Low/Medium/High) : | 108 / 136 / 188 m³/h |
|---|---|
| Air Volume : | 189 m³/h |
Capacity
| Cooling Capacity : | 3.4 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 0.5/3.4/4.0 kW |
| Heating Capacity : | 4 kW |
| Heating Capacity (Min/Rated/Max) : | 0.8/4.0/4.8 kW |
Electrical
| Max Current : | 6.5 A |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.85 |
|---|---|
| EER : | 3.84 |
Measurements
| Depth : | 209 mm |
|---|---|
| Height : | 289 mm |
| Net Weight : | 10.5 kg |
| Width : | 845 mm |
Pipes
| Pipe Dimension : | 1/4 in, 3/8 in, 6.35 mm, 9.52 mm |
|---|
Refrigerant
| Refrigerant : | R410A |
|---|---|
| Refrigerant Pipe Size : | 1/4-3/8 in, 6.35-9.52 mm |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 26 / 37 / 46 dB(A) |
|---|
Wire
| Wire Diameter Interconnection Cable : | 3C + E |
|---|
