Description

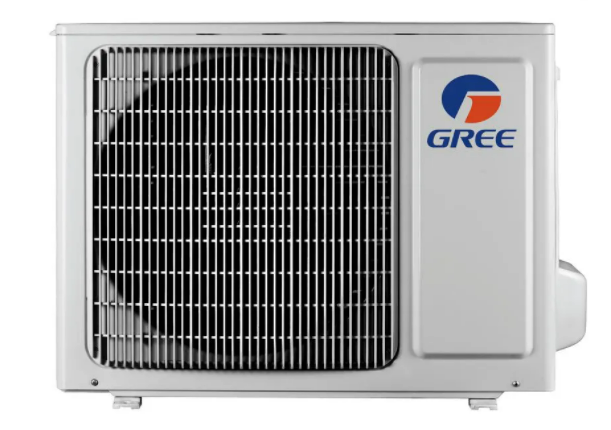

Gree Lomo Inverter 8.5kW Outdoor R410A
Product number:
AC7318/O
| Cooling Capacity : | 8.5 kW |
|---|---|
| EER : | 3.2 |
| Heating Capacity : | 9 kW |
| Indoor/ Outdoor/ Other : | Outdoor |
| Product Group : | Hi-wall - Gree Lomo |
| Refrigerant : | R410A |
| Voltage : | 230 V |
General
| Product Group : | Hi-wall - Gree Lomo |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Outdoor | Indoor Units Connectable (Quantity) : | 1 |
|---|---|---|---|
| Single Split / Multi Split : | Single split |
Cooling Capacity
| Cooling Capacity : | 8.5 kW |
|---|
Electrical
| Max Current : | 11.3 A | Power Consumption Cooling : | 2.656 kW |
|---|---|---|---|
| Power Consumption Heating : | 2.727 kW | Power Input (Heating/Cooling) : | 2.727 / 2.656 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz | Recommended Fuse : | 20 A |
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.3 | EER : | 3.2 |
|---|
Fan
| Number Of Fans : | 1 |
|---|
General Information
| Model Number : | AC7318/O |
|---|
Heating Capacity
| Heating Capacity : | 9 kW |
|---|
Measurements
| Depth : | 427 mm | Height : | 790 mm |
|---|---|---|---|
| Weight : | 65 kg | Width : | 980 mm |
Pipes
| Max Height Difference : | 10 m | Max Piping Length : | 25 m |
|---|---|---|---|
| Pipe Dimension : | 1/4 in, 5/8 in, 6.35 mm, 15.8 mm | Total Pipe Length Range : | 25 m |
Refrigerant
| Additional Charge : | 50 g/m | Refrigerant : | R410A |
|---|---|---|---|
| Refrigerant Charge : | 2.3 kg | Refrigerant Pipe Size : | 1/4-5/8 in, 6.35-15.88 mm |
| Refrigerant precharged up to : | 5 m |
Sound Power/Pressure
| Sound Pressure Level : | 59 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | 16 - 30 °C | Temperature Range Heating : | 16 - 30 °C |
|---|
