Description

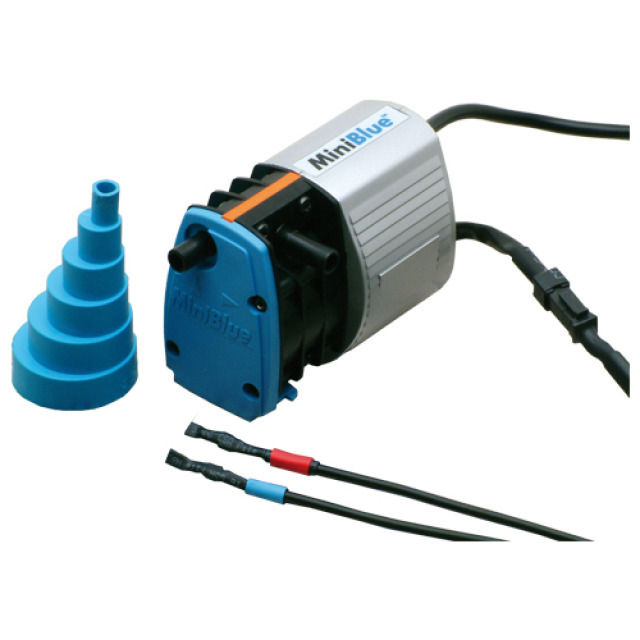

MiniBlue Condensate Pump with Temp Sensor
Product number:
BDX87-504
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Capacity
| Capacity : | 8 kW |
|---|
Condensate Pumps
| Max Discharge Head : | 8 m | Max Flow Rate : | 8 dm³/h |
|---|---|---|---|
| Max Suction Head : | 5 m |
Connections
| Outlet Connection Size : | 6 mm |
|---|
Electrical
| Amp : | 0.02 A | IP Class : | IP4 |
|---|---|---|---|
| Power Supply : | 230/1/50 V/Ph/Hz |
General Information
| Max Pump Capacity : | 8 L/h | Model Number : | X87-504 |
|---|---|---|---|
| Water Flow : | 8 L/h |
Measurements
| Depth : | 138 mm | Height : | 67 mm |
|---|---|---|---|
| Length : | 138 mm | Weight : | 0.700 kg |
| Width : | 58 mm |
Pressure
| Water Flow Pressure : | 5 L/h |
|---|
Sound Power/Pressure
| Sound Power Level : | 19 dB(A) | Sound Pressure Level : | 19 dB(A) |
|---|
Switch
| Safety Switch : | Thermal Cut Out |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| miniblue-ds-2018-ast-332576.pdf | Technical Literature | 38.56 MB |
