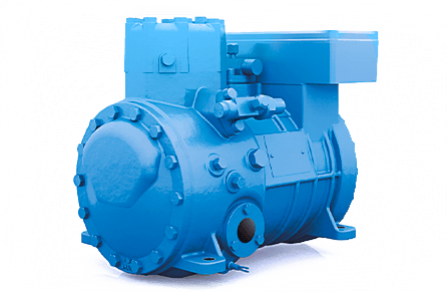

Frascold B2-10.1Y Compressor 1PH
Item Number:
C5046
| Capacity Control : | No |
|---|---|
| Displacement : | 9.9 m³/h |
| Product Group : | Comp Semi - Frascold |
| Voltage : | 220/1/50 V/Ph/Hz |
General Information
| Product Group : | Comp Semi - Frascold |
|---|
Capacity
| Capacity Control : | No |
|---|
Compressor
| Displacement : | 9.9 m³/h |
|---|
Connections
| Discharge Line Connection : | 15.9 mm |
|---|---|
| Suction Line Connection : | 19.05 mm |
Electrical
| LRA : | 35.9 A |
|---|---|
| Voltage : | 220/1/50 V/Ph/Hz |
Measurements
| Height : | 292 mm |
|---|---|
| Weight : | 40 kg |
Motor
| Motor Protector : | INT69 |
|---|
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 3800 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 2340 W |
|---|
Oil
| Oil Charge : | 1000 cc |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical literature | 522.79 KB |
