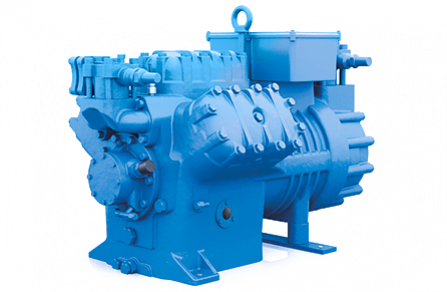

Frascold D3-13.1Y Compressor
Item Number:
C5061
| Capacity Control : | Yes |
|---|---|
| Displacement : | 13.2 m³/h |
| Product Group : | Comp Semi - Frascold |
| Voltage : | 400/3/50 V/Ph/Hz |
General Information
| Product Group : | Comp Semi - Frascold |
|---|
Capacity
| Capacity Control : | Yes |
|---|
Compressor
| Displacement : | 13.2 m³/h |
|---|
Connections
| Discharge Line Connection : | 15.9 mm |
|---|---|
| Suction Line Connection : | 28 mm |
Electrical
| LRA : | 43.7 A |
|---|---|
| Voltage : | 400/3/50 V/Ph/Hz |
Measurements
| Height : | 317 mm |
|---|---|
| Weight : | 49 kg |
Motor
| Motor Protector : | INT69 |
|---|
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 4740 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 2910 W |
|---|
Oil
| Oil Charge : | 1200 cc |
|---|
