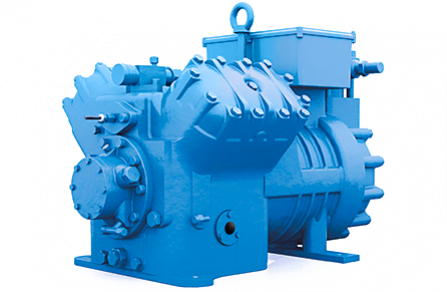

Frascold V2571 Compressor

Product number: C5185
PLEASE LOGIN TO SEE PRICES
Capacity Control : Yes
Displacement : 70.8 m³/h
Product Group : Comp Semi - Frascold
Description
Product Group : Comp Semi - Frascold
Capacity Control : Yes
Displacement : 70.8 m³/h
Discharge Line Connection : 35 mm Suction Line Connection : 54 mm
LRA : 118.3 A Voltage : 400/3/50 V/Ph/Hz
Height : 463 mm Weight : 184 kg
Motor Protector : INT69
Oil Charge : 4000 cc
R134a Nominal Capacity -5°C : 26120 W
R404A Nominal Capacity -5°C : 16970 W
File name Document Type Extension Size
v25-71y-ast-600067.pdf Technical Literature pdf 535.51 KB
