Description
3/400/50 PWS

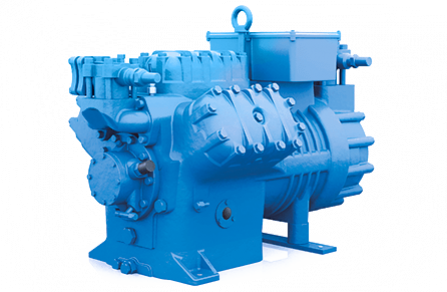

Z40-154 Y 3/400/50 PWS
Product number:
C5208
| Capacity Control : | Yes |
|---|---|
| Displacement : | 154.1 m³/h |
| Product Group : | Comp Semi - Frascold |
General
| Product Group : | Comp Semi - Frascold |
|---|
Capacity
| Capacity Control : | Yes | Effect : | 30.00 kW |
|---|
Compressor
| Displacement : | 154.1 m³/h |
|---|
Connections
| Discharge Line Connection : | 41.3 mm | Suction Line Connection : | 66.7 mm |
|---|
Electrical
| LRA : | 159.2 A | Voltage : | 400/3/50 V/Ph/Hz |
|---|
General Information
| Model Number : | Z 40-154 Y |
|---|
Measurements
| Height : | 536 mm | Weight : | 240 kg |
|---|
Motor
| Motor Code : | B | Motor Protector : | INT69 |
|---|
Oil
| Oil Charge : | 7200 cc |
|---|
R134A Performances
| R134a Capacity -10°C : | 50640 W | R134a Nominal Capacity -5°C : | 55260 W |
|---|
R404A Performances
| R404A Capacity -10°C : | 85700 W | R404A Capacity -30°C : | 35280 W |
|---|---|---|---|
| R404A Capacity -35°C : | 26720 W | R404A Nominal Capacity -5°C : | 41360 W |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| z40-154y-ast-600076.pdf | Technical Literature | 551.69 KB |
