Description

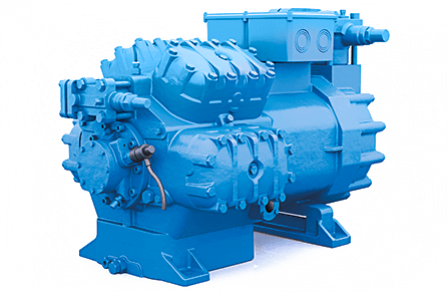

Frascold W60-187Y Compressor
Product number:
C5234
| Capacity Control : | Yes |
|---|---|
| Displacement : | 186.1 m³/h |
| Product Group : | Comp Semi - Frascold |
General
| Product Group : | Comp Semi - Frascold |
|---|
Capacity
| Capacity Control : | Yes |
|---|
Compressor
| Displacement : | 186.1 m³/h |
|---|
Connections
| Discharge Line Connection : | 41.3 mm | Suction Line Connection : | 79.4 mm |
|---|
Electrical
| LRA : | 326 A | Voltage : | 400/3/50 V/Ph/Hz |
|---|
Measurements
| Height : | 588 mm | Weight : | 315 kg |
|---|
Motor
| Motor Protector : | INT69 |
|---|
Oil
| Oil Charge : | 7700 cc |
|---|
R134A Performances
| R134a Nominal Capacity -5°C : | 68620 W |
|---|
R404A Performances
| R404A Nominal Capacity -5°C : | 46480 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| w60-187y-ast-600071.pdf | Technical Literature | 507.44 KB |
