Description

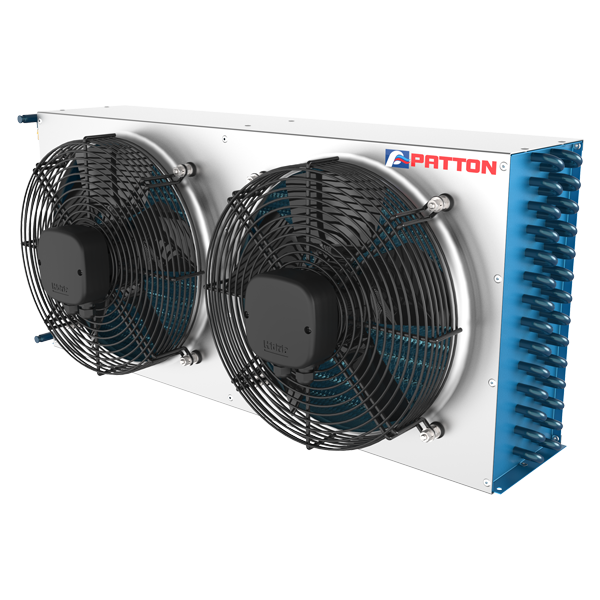

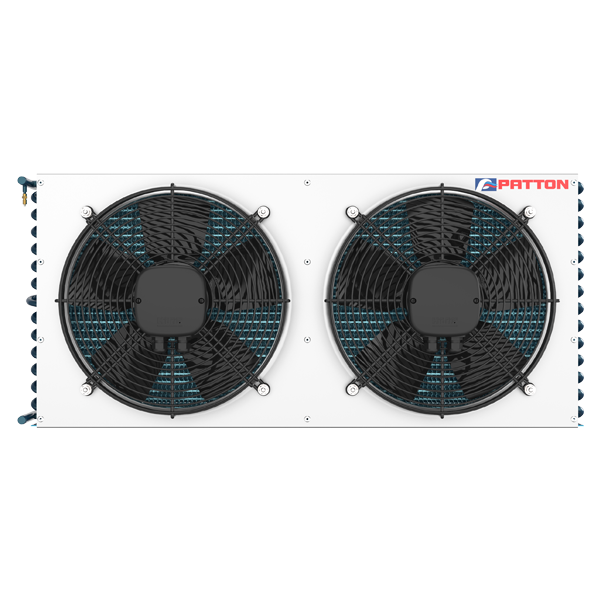

Patton Air Cooled Condenser PAC75
Product number:
C8304
| Product Group : | Condenser - Patton AC Fans |
|---|
General
| Product Group : | Condenser - Patton AC Fans |
|---|
Additional Info
| Family : | PAC Low Line |
|---|
Air Volume/Air Flow
| Air Flow (High/Low Speed) : | 450 L/s |
|---|
Connections
| Connection Type : | Tube | Inlet Connection Size : | 9.52 mm |
|---|---|---|---|
| Outlet Connection Size : | 9.52 mm |
Electrical
| Amp High/Low Speed : | 0.4 A | Watts High/Low Speed : | 80 W |
|---|
Fan
| Fan Diameter : | 300 mm | Number Of Fans : | 1 |
|---|
Heat Of Rejection
| R134a Heat Of Rejection at 1KTD, High Speed : | 276 W | R404A Heat Of Rejection at 1KTD, High Speed : | 280 W |
|---|
Measurements
| Height : | 366 mm | Length : | 446 mm |
|---|---|---|---|
| Net Weight : | 9 kg | Width : | 288 mm |
Outdoor Unit Attributes
| Mounting Centres : | 404 mm |
|---|
Sound Power/Pressure
| Sound Pressure Level @ 3 meters High/Low Speed : | 60 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-pac-en-ast-1425751.pdf | Brochures | 843.38 KB | |
| patton-air-cooled-cond-installation-operating-2018-ast-2045484.pdf | Installation Manual | 919.67 KB |
