Description

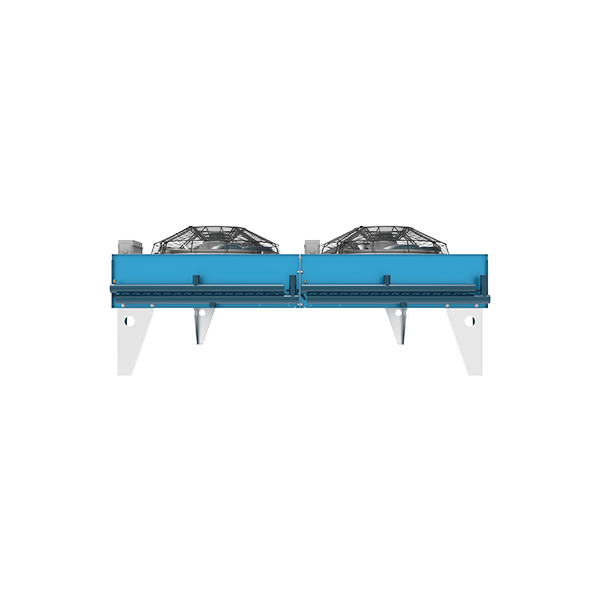

Patton Air Cooled Condenser HQAC3500
Product number:
C8360
| Product Group : | Condenser - Patton AC Fans |
|---|
General
| Product Group : | Condenser - Patton AC Fans |
|---|
Additional Info
| Family : | HQAC Single Module |
|---|
Air Volume/Air Flow
| Air Flow (High/Low Speed) : | 11660/8880 L/s |
|---|
Connections
| Connection Type : | Tube | Inlet Connection Size : | 41 mm |
|---|---|---|---|
| Outlet Connection Size : | 41 mm |
Electrical
| Amp High/Low Speed : | 8.0/4.6 A | Watts High/Low Speed : | 4000/1250 W |
|---|
Fan
| Fan Diameter : | 800 mm | Number Of Fans : | 2 |
|---|
Heat Of Rejection
| R134a Heat Of Rejection at 1KTD, High Speed : | 9190 W | R134a Heat Of Rejection at 1KTD, Low Speed : | 7580 W |
|---|---|---|---|
| R404A Heat Of Rejection at 1KTD, High Speed : | 9570 W | R404A Heat Of Rejection at 1KTD, Low Speed : | 7900 W |
Measurements
| Height : | 1156 mm | Length : | 2270 mm |
|---|---|---|---|
| Net Weight : | 238 kg | Width : | 730 mm |
Outdoor Unit Attributes
| Mounting Centres : | 2002 mm x 972 mm |
|---|
Sound Power/Pressure
| Sound Pressure Level @ 3 meters High/Low Speed : | 75/63 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-air-cooled-cond-installation-operating-2018-ast-2045484.pdf | Installation Manual | 919.67 KB | |
| patton-hqac-en-ast-1425749.pdf | Brochures | 3.44 MB |
