Description

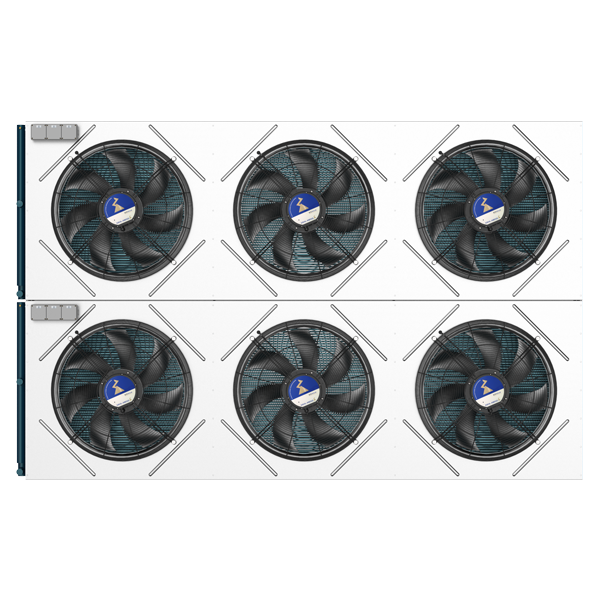

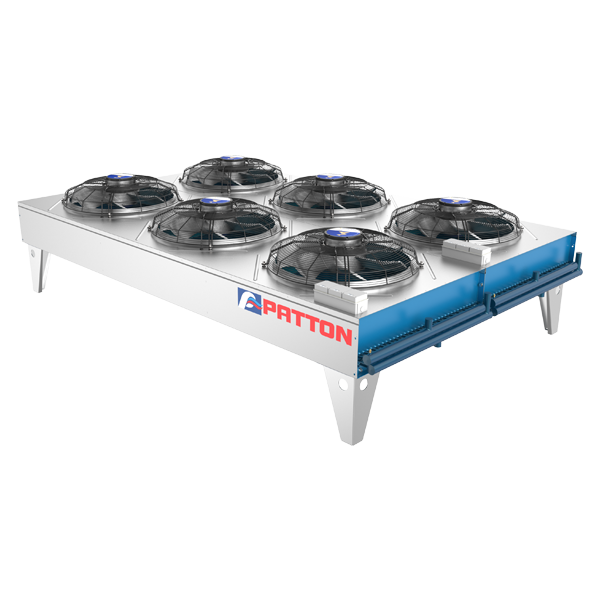

Patton Air Cooled Condenser EQAC15002
Product number:
C8468
| Product Group : | Condenser - Patton EC Fans |
|---|
General
| Product Group : | Condenser - Patton EC Fans |
|---|
Additional Info
| Family : | EQAC Double Module |
|---|
Air Volume/Air Flow
| Air Flow (High/Low Speed) : | 39940/11310 L/s |
|---|
Connections
| Connection Type : | Tube | Inlet Connection Size : | 2 x 67 mm |
|---|---|---|---|
| Outlet Connection Size : | 2 x 67 mm |
Electrical
| Amp High/Low Speed : | 35.2 A | Watts High/Low Speed : | 22400 W |
|---|
Fan
| Fan Diameter : | 800 mm | Number Of Fans : | 8 |
|---|
Heat Of Rejection
| R134a Heat Of Rejection at 1KTD, High Speed : | 33730 W | R134a Heat Of Rejection at 1KTD, Low Speed : | 12500 W |
|---|---|---|---|
| R404A Heat Of Rejection at 1KTD, High Speed : | 34420 W | R404A Heat Of Rejection at 1KTD, Low Speed : | 12760 W |
Measurements
| Height : | 2312 mm | Length : | 3990 mm |
|---|---|---|---|
| Net Weight : | 874 kg | Width : | 730 mm |
Outdoor Unit Attributes
| Mounting Centres : | 3682 mm x 2128 mm |
|---|
Sound Power/Pressure
| Sound Pressure Level @ 3 meters High/Low Speed : | 83/55 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-eqac-en-ast-1425748.pdf | Brochures | 4.14 MB | |
| patton-air-cooled-cond-installation-operating-2018-ast-2045484.pdf | Installation Manual | 919.67 KB |
