Description

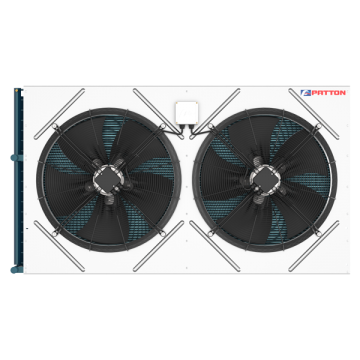

Patton Air Cooled Cond. NQAC3402-V
Product number:
C8502
| Product Group : | Condenser - Patton AC Fans |
|---|
General
| Product Group : | Condenser - Patton AC Fans |
|---|
Additional Info
| Family : | NQAC Double Module |
|---|
Air Volume/Air Flow
| Air Flow (High/Low Speed) : | 7060 L/s |
|---|
Connections
| Connection Type : | Tube | Inlet Connection Size : | 2 x 28.6 mm |
|---|---|---|---|
| Outlet Connection Size : | 2 x 28.6 mm |
Electrical
| Amp High/Low Speed : | 12.4 A | Watts High/Low Speed : | 2700 W |
|---|
Fan
| Fan Diameter : | 630 mm | Number Of Fans : | 4 |
|---|
Heat Of Rejection
| R134a Heat Of Rejection at 1KTD, High Speed : | 7260 W | R404A Heat Of Rejection at 1KTD, High Speed : | 7408 W |
|---|
Measurements
| Height : | 1544 mm | Length : | 1651 mm |
|---|---|---|---|
| Net Weight : | 192 kg | Width : | 450 mm |
Sound Power/Pressure
| Sound Pressure Level @ 3 meters High/Low Speed : | 73 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-air-cooled-cond-installation-operating-2018-ast-2045484.pdf | Installation Manual | 919.67 KB | |
| patton-nqac-en-ast-1425750.pdf | Brochures | 921.42 KB |
