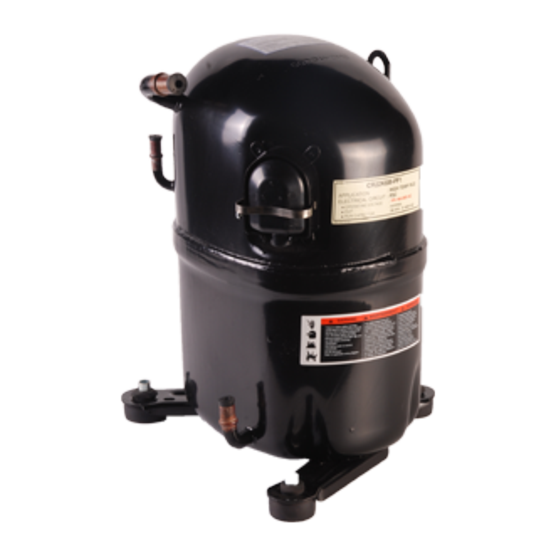

Copeland CR42K6-TFD-595 Compressor
Item Number:
CR42K6-TFD-595
| Displacement : | 72.10 cc |
|---|---|
| Oil Type : | Mineral |
| Product Group : | Comp Herm - Copeland |
| Voltage : | 415/3/50 V/Ph/Hz |
General Information
| Product Group : | Comp Herm - Copeland |
|---|
Compressor
| Displacement : | 72.10 cc |
|---|
Connections
| Discharge Line Connection : | 25.4 mm |
|---|---|
| Suction Line Connection : | 76.2 mm |
Electrical
| LRA : | 42 A |
|---|---|
| RLA : | 6.4 A |
| Voltage : | 415/3/50 V/Ph/Hz |
Measurements
| Height : | 370 mm |
|---|---|
| Weight : | 31 kg |
Motor
| Motor Protector : | Internal |
|---|---|
| Motor Type : | DOL |
Nominal Capacity R22
| R22 Nominal Capacity 7.2°C : | 13247 W |
|---|
Oil
| Oil Charge : | 1330 cc |
|---|---|
| Oil Type : | Mineral |
Product information
Copeland CR platform reciprocating compressor, sets the industry benchmark for ruggedness and efficiency across the globe. These highly efficient, silent and reliable CR compressors make them the best-in-class available models in the market. These compressors deliver superior performance, have a wide operating range, offer multiple electrical options and come with a host of other features.
