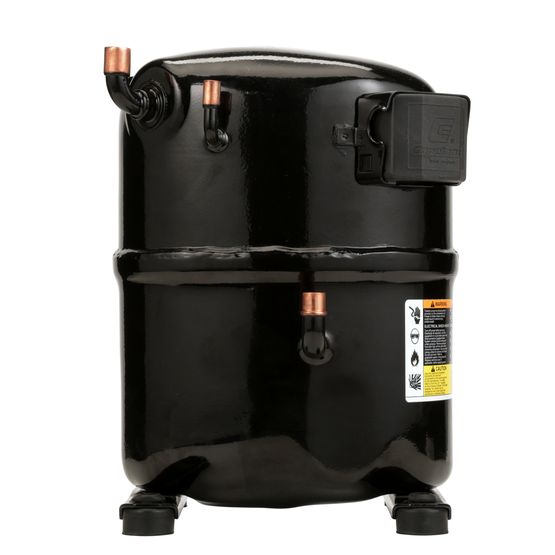

Copeland CS14K6E-PFJ-595 Compressor
Item Number:
CS14K6E-PFJ-595
Displacement : | 48.6 cc |
---|---|
Oil Type : | POE 32 |
Product Group : | Comp Herm - Copeland |
Voltage : | 240/1/50 V/Ph/Hz |
General Information
Product Group : | Comp Herm - Copeland |
---|
Compressor
Displacement : | 48.6 cc |
---|
Connections
Discharge Line Connection : | 9.52 mm |
---|---|
Suction Line Connection : | 19.05 mm |
Electrical
LRA : | 58 A |
---|---|
RLA : | 12.5 A |
Voltage : | 240/1/50 V/Ph/Hz |
Measurements
Height : | 348 mm |
---|---|
Weight : | 32 kg |
Motor
Motor Protector : | Internal |
---|---|
Motor Type : | CSR |
Nominal Capacity R404A
R404A Nominal Capacity -5°C : | 4650 W |
---|---|
R404A Nominal Capacity -25°C : | 1300 W |
Oil
Oil Charge : | 1270 cc |
---|---|
Oil Type : | POE 32 |
Product information
The Copeland CS welded hermetic compressors are designed for commercial refrigeration applications. They feature a "low-side" gas management system. The steel shell contains cool, low pressure suction gas that surrounds and cools the electric motor and mechanical compressor parts, resulting in lower motor and discharge gas temperatures.
File name | Extension | Size |
---|---|---|
Technical literature | 9.03 KB |
