Description
MHI Bronte Inverter Split Set R32 7.1kW
Product number:
DXK24ZRA-W-SET
| Cooling Capacity : | 7.1 kW |
|---|---|
| EER : | 3.85 |
| Heating Capacity : | 8 kW |
| Product Group : | Hi-wall - MHI Bronte |
| Refrigerant : | R32 |
General
| Product Group : | Hi-wall - MHI Bronte |
|---|
Additional Info
| Single Split / Multi Split : | Single |
|---|
Air Volume/Air Flow
| Air Flow : | 425 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 7.1 kW | Cooling Capacity (Min/Max) : | 2.3 / 8.3 kW |
|---|
Electrical
| Current (Cooling) : | 8.6 A | Current (Heating) : | 8.6 A |
|---|---|---|---|
| Input (Cooling) : | 1.84 kW | Input (Heating) : | 2.02 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.96 | EER : | 3.85 |
|---|---|---|---|
| Energy Label (Cooling) : | 3 | Energy Label (Heating) : | 3 |
General Information
| Model Number : | DXK24ZRA-W-SET |
|---|
Heating Capacity
| Heating Capacity : | 8 kW | Heating Capacity Min/Max : | 2.0 / 10.9 kW |
|---|

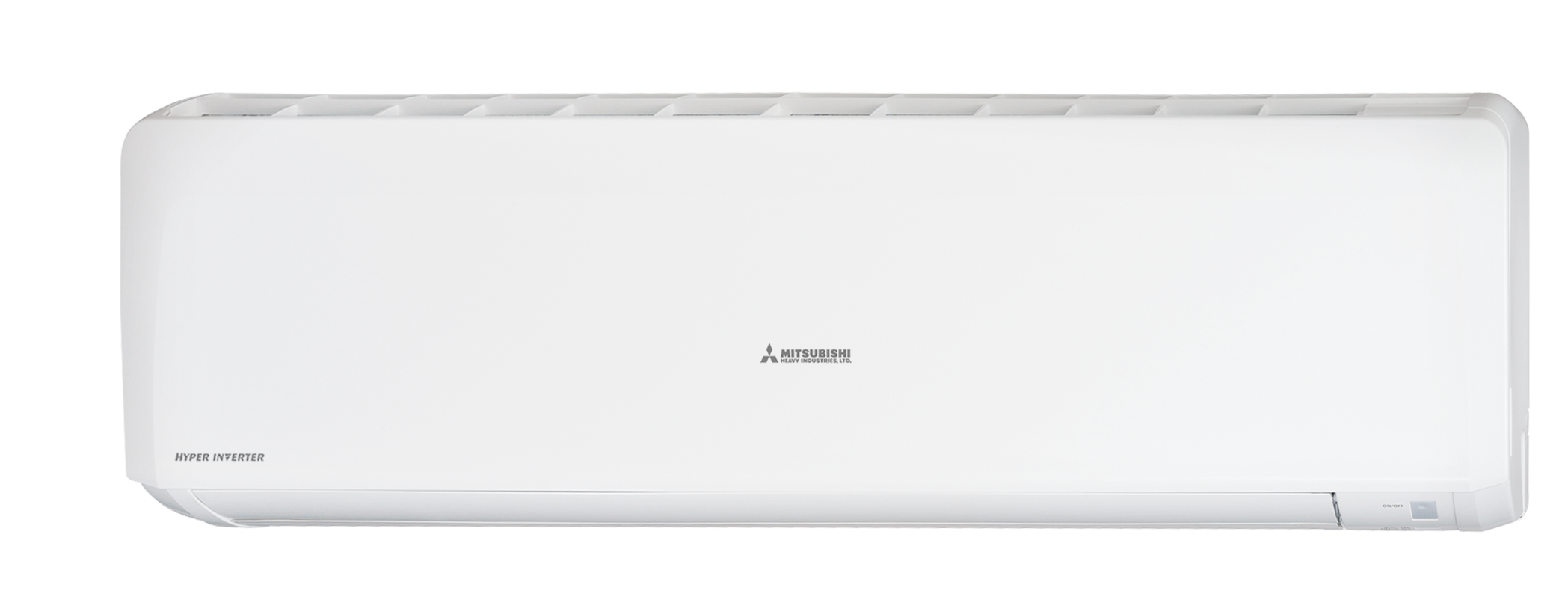

Indoor Unit Attributes
| Depth (IU) : | 262 mm | Height (IU) : | 339 mm |
|---|---|---|---|
| Width (IU) : | 1197 mm |

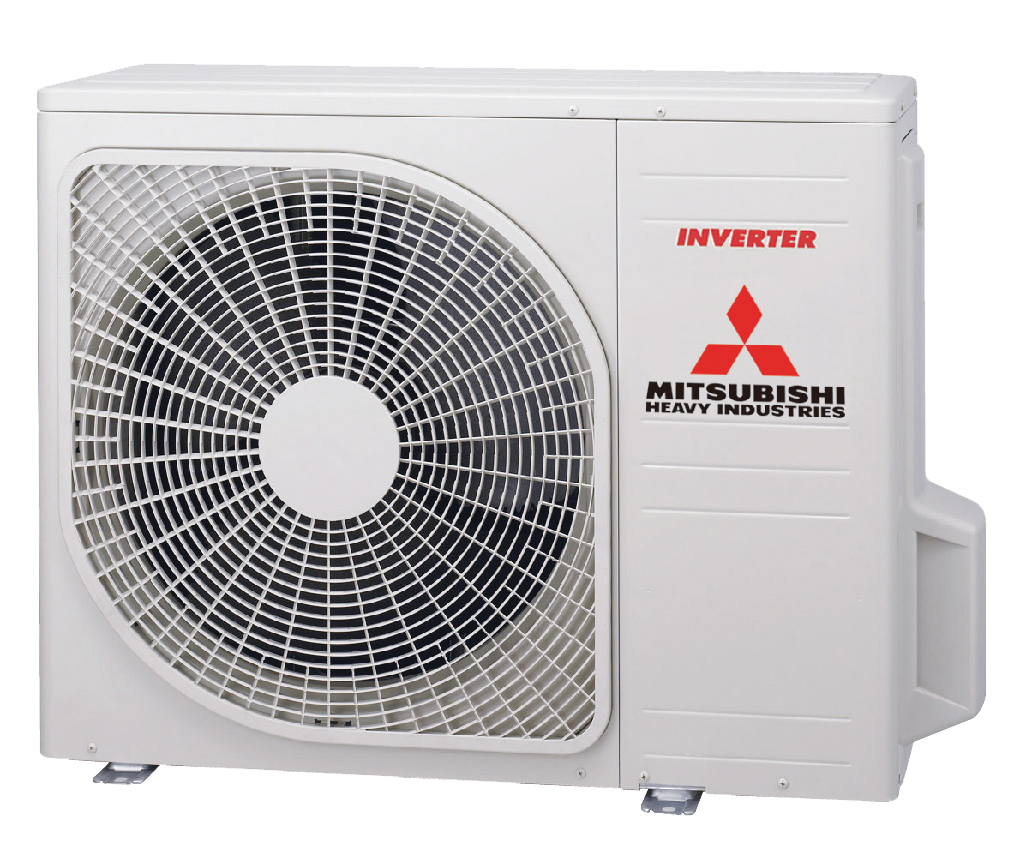

Outdoor Unit Attributes
| Depth (OU) : | 340 mm | Height (OU) : | 750 mm |
|---|---|---|---|
| Sound Pressure Level (OU) : | 53 dB(A) | Width (OU) : | 880 +88 mm |
Pipes
| Max Height Difference : | 20 m | Max Pipe Run : | 30 m |
|---|---|---|---|
| Pipe Dimension : | 1/4 in, 5/8 in, 6.35 mm, 15.88 mm |
Refrigerant
| Additional Charge : | 25 g/m | Refrigerant : | R32 |
|---|---|---|---|
| Refrigerant Line Length (Oneway) : | 15 m | Refrigerant Pipe Size : | 1/4-5/8 in, 6.35-15.88 mm |
Sound Power/Pressure
| Sound Pressure Level Cooling (High/Medium/Low/Quiet) : | 43 / 40 / 36 / 26 dB(A) | Sound Pressure Level Cooling (Low/Medium/High) : | 26 / 36 / 40 / 43 dB(A) |
|---|---|---|---|
| Sound Pressure Level Heating (High/Medium/Low/Quiet) : | 46 / 39 / 35 / 28 dB(A) | Sound Pressure Level Heating (Low/Medium/High) : | 28 / 35 / 39 / 46 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | - 15 to +46 °C | Outdoor Operating Temp. Range (Heating) : | -15 to +24 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| mhi-split-systems-brochure-en-ast-319477.pdf | Brochures | 6.52 MB |
