Description

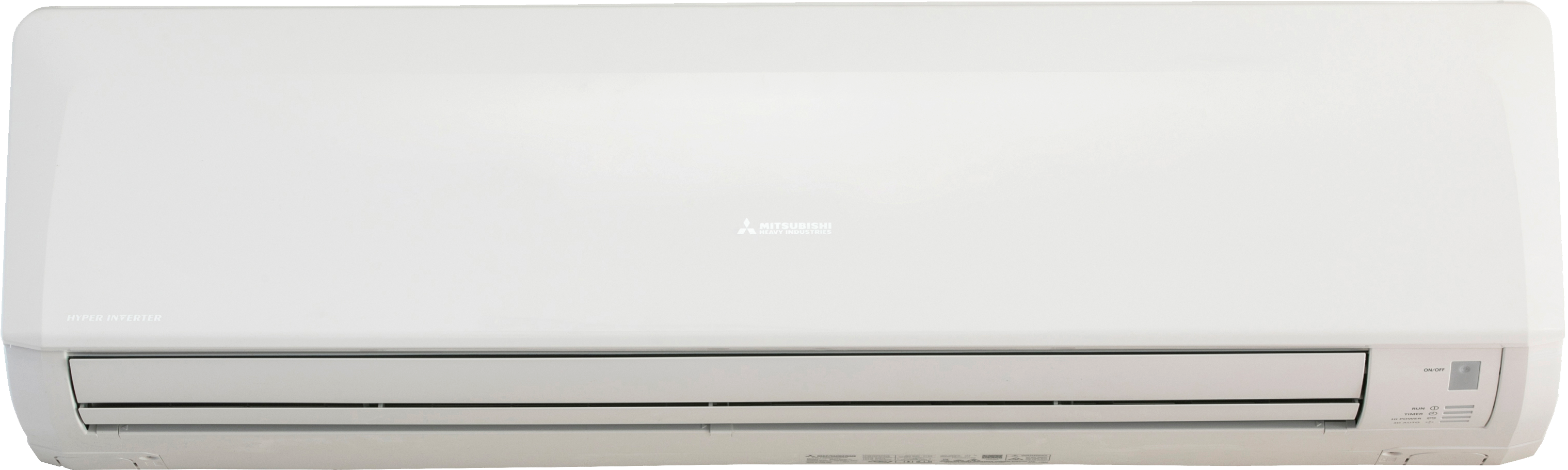

MHI Bronte Inverter Split Set R32 9.5kW
Product number:
DXK33ZRA-W-SET
| Cooling Capacity : | 9.5 kW |
|---|---|
| EER : | 3.71 |
| Heating Capacity : | 10.3 kW |
| Product Group : | Hi-wall - MHI Bronte |
| Refrigerant : | R32 |
General
| Product Group : | Hi-wall - MHI Bronte |
|---|
Additional Info
| Single Split / Multi Split : | Single |
|---|
Air Volume/Air Flow
| Air Flow : | 458 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 9.5 kW | Cooling Capacity (Min/Max) : | 2.5 / 10.6 kW |
|---|
Electrical
| Current (Cooling) : | 10.8 A | Current (Heating) : | 11.1 A |
|---|---|---|---|
| Input (Cooling) : | 2.56 kW | Input (Heating) : | 2.64 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.90 | EER : | 3.71 |
|---|---|---|---|
| Energy Label (Cooling) : | 2.5 | Energy Label (Heating) : | 3 |
General Information
| Model Number : | DXK33ZRA-W-SET |
|---|
Heating Capacity
| Heating Capacity : | 10.3 kW | Heating Capacity Min/Max : | 3.2 / 11.9 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 262 mm | Height (IU) : | 339 mm |
|---|---|---|---|
| Width (IU) : | 1197 mm |
Outdoor Unit Attributes
| Depth (OU) : | 370 mm | Height (OU) : | 845 mm |
|---|---|---|---|
| Sound Pressure Level (OU) : | 57 dB(A) | Width (OU) : | 970 +89 mm |
Pipes
| Max Height Difference : | 20 m | Max Pipe Run : | 30 m |
|---|---|---|---|
| Pipe Dimension : | 3/8 in, 5/8 in, 9.52 mm, 15.88 mm |
Refrigerant
| Additional Charge : | 54 g/m | Refrigerant : | R32 |
|---|---|---|---|
| Refrigerant Line Length (Oneway) : | 15 m | Refrigerant Pipe Size : | 3/8-5/8 in, 9.52-15.88 mm |
Sound Power/Pressure
| Sound Pressure Level Cooling (High/Medium/Low/Quiet) : | 48 / 45 / 40 / 26 dB(A) | Sound Pressure Level Cooling (Low/Medium/High) : | 26 / 40 / 45 / 48 dB(A) |
|---|---|---|---|
| Sound Pressure Level Heating (High/Medium/Low/Quiet) : | 48 / 42 / 37 / 29 dB(A) | Sound Pressure Level Heating (Low/Medium/High) : | 29 / 37 / 42 / 48 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | - 15 to +46 °C | Outdoor Operating Temp. Range (Heating) : | -15 to +24 °C |
|---|
