Description
TE 5 Element N

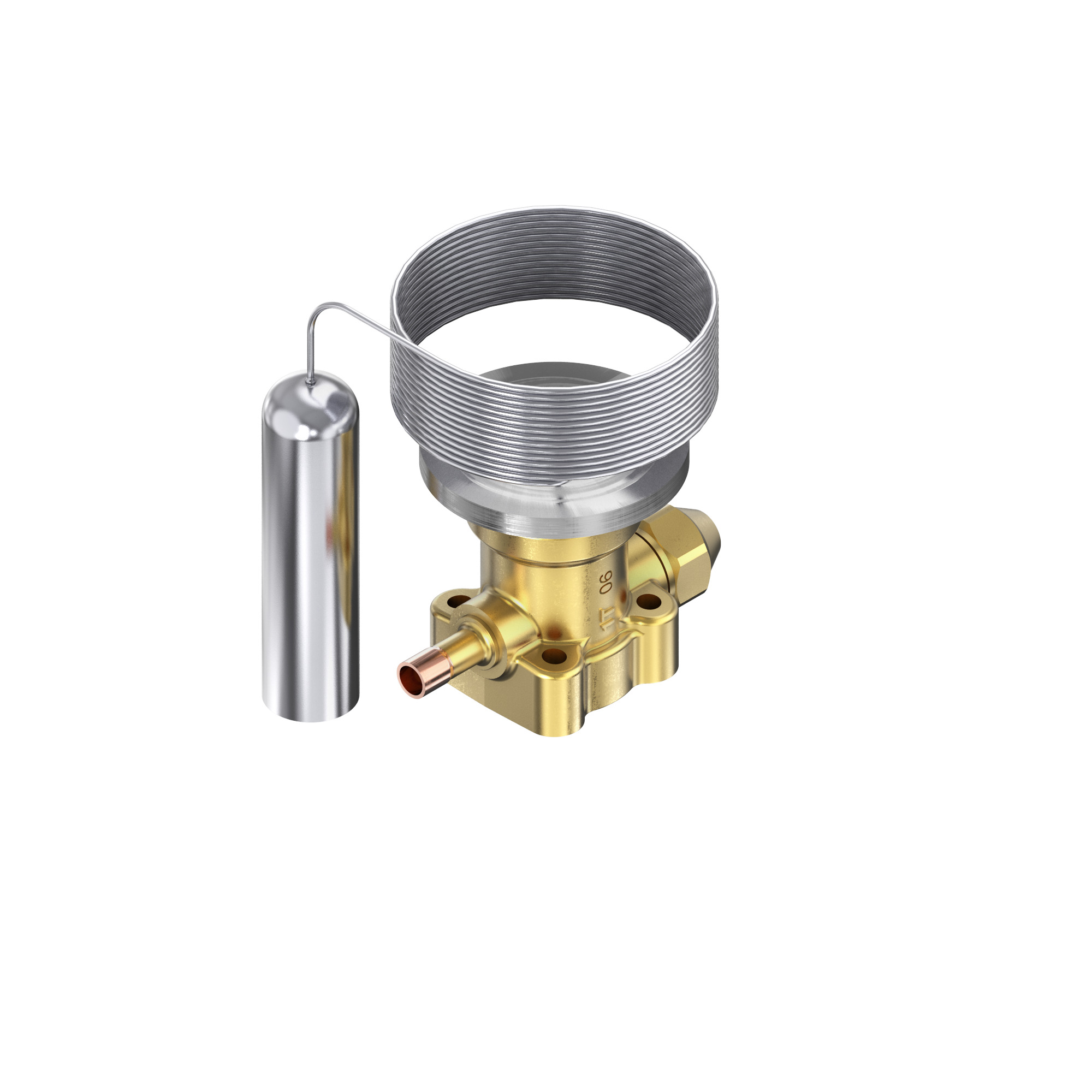

Danfoss TE5 Power Assy R407F (wide range)
Product number:
F2404
| Product Group : | Expansion Valves - Danfoss |
|---|
General
| Product Group : | Expansion Valves - Danfoss |
|---|
Additional Info
| Family : | TE 5 - 55 |
|---|
Connections
| Equalization Connection Size : | 1/4 in | Equalization Connection Type : | Solder, ODF |
|---|
General Information
| Type : | TE 5 |
|---|
Logistical Information
| Commodity Code : | 84819000 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428915557 | Gross Weight : | 0.522 kg |
Material
| Body Material : | Brass |
|---|
Measurements
| Capillary Tube Length : | 118.0 in, 3000 mm | Weight : | 0.46 kg |
|---|
Pressure
| Max Operating Pressure : | 28.0 Bar | Pressure Equalization : | External |
|---|
Refrigerant
| Refrigerant : | R407A, R407F |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Superheat Setting : | Adjustable | Temperature Range : | -40-10 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| brochure-overview-brochure-thermostatic-expansion-valves-en-ast-ad135086437198en-000601.pdf | Brochures | 7.14 MB | |
| thermostatic-expansion-valves-type-te-5-te-12-te-20-and-te-55-ast-an020186412218en-000706.pdf | Installation Manual | 878.43 KB | |
| thermostatic-expansion-valves-type-te-5-te-55-ast-ai246186497081en-000801.pdf | Technical Literature | 8.49 MB | |
| manufacturer-s-declaration-danfoss-md-067r1068-af-ast-id365946710628-0301.pdf | Conformity Declaration | 1.46 MB | |
| manufacturer-s-declaration-danfoss-md-033f4006-ast-id365946683607-0101.pdf | Conformity Declaration | 889.08 KB | |
| manufacturer-s-declaration-danfoss-md-033f4011-ad-ast-id365946681605-0201.pdf | Conformity Declaration | 594.92 KB |
