The F261 Series flow switches respond to fluid flow in lines carrying water, ethylene glycol, or other non-hazardous fluids. These models also work in applications with swimming pool water and lubricating oils. F261 Series standard flow switches use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1 in trade size.
1 in., 2 in., 3 in., and 6 in. stainless steel paddles, lock-tooth washer, and stainless steel paddle screw supplied uninstalled, Standard model flow switch with Type 3R (NEMA) enclosure
Connections
Connection Type :
1 in MNPT
Description
Short Description :

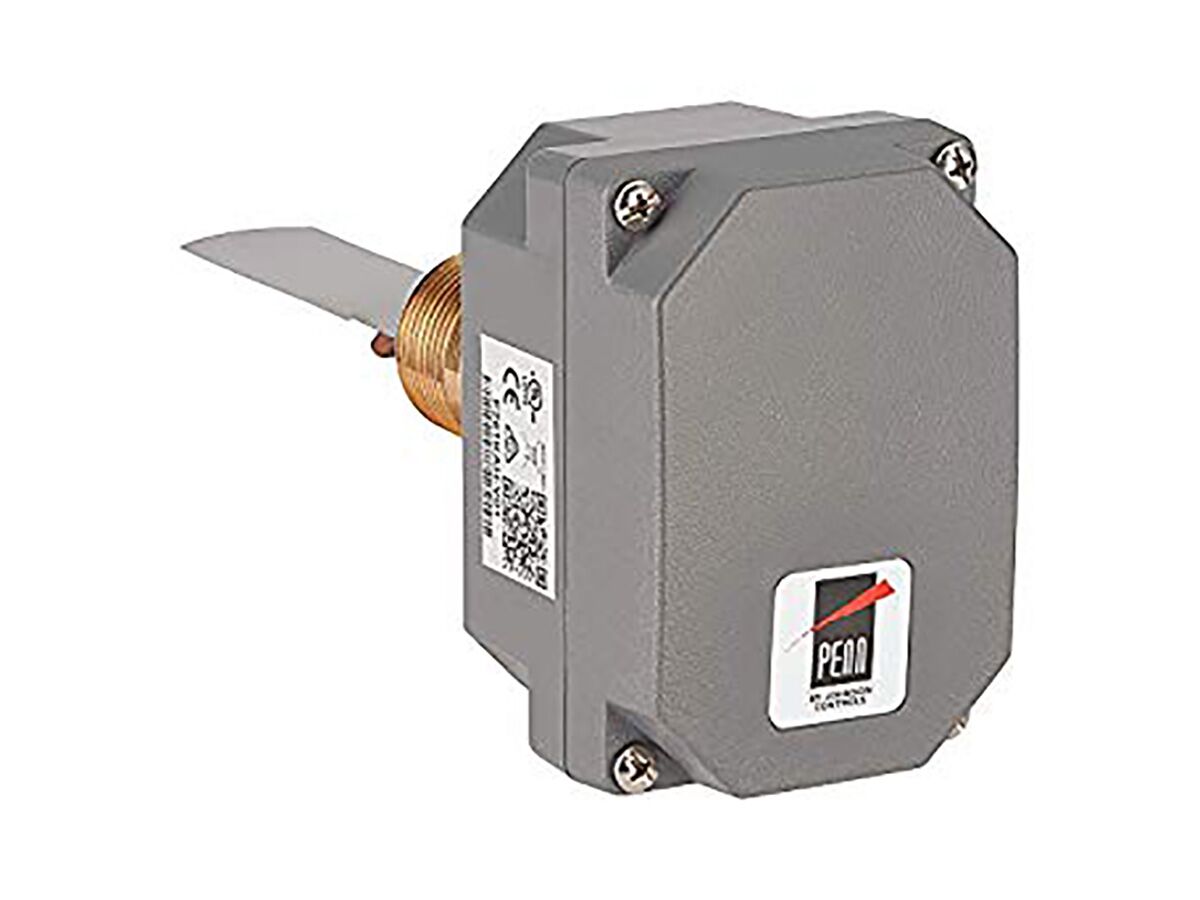

Johnson Controls F261KAH-V01C Fluid Flow Switch, 24 to 230 V, SPDT, Plastic/Stainless Steel
Electrical
Voltage Rating :
24 to 230 V
General Information
Contact Configuration :
SPDT
HP Rating :
1 hp
Measurements
Width :
287 mm
Pressure
Pressure Rating :
290 Bar
PressureRating :
290 psig
Standards
Enclosure Rating :
NEMA 3R
Standard :
CE Marked|E6688|FCC CFR47|ICES-003|RCM Compliant|UL 60730
Temperature
Temperature Rating :
-40 to 140 deg F
