Description

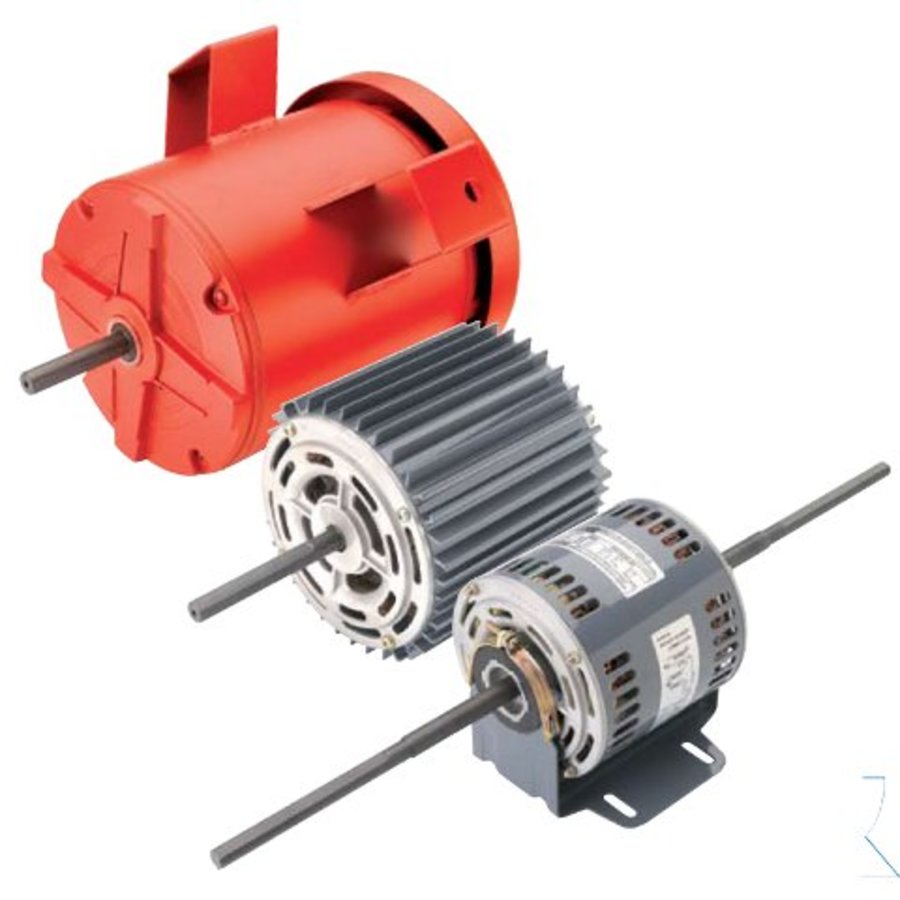

Fasco Fan Motor 808557NTA-A11
Product number:
F3040
| Product Group : | Motors - 38-48 & 56 Frame |
|---|
General
| Product Group : | Motors - 38-48 & 56 Frame |
|---|
Cable
| Cable Length : | 2300 mm |
|---|
Electrical
| Capacitor : | 12 µF | Current : | 2.4 A |
|---|---|---|---|
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Speed : | 840 r/min | Shaft Diameter : | 12.54 mm |
|---|---|---|---|
| Shaft Length : | 101 mm |
Measurements
| Height : | 144 mm | Length : | 258 mm |
|---|---|---|---|
| Width : | 144 mm |
Temperature
| Operating Temperature Range : | -30 °C to 70 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| 808557nta-a11-ast-1891116.pdf | Brochures | 40.85 KB |
