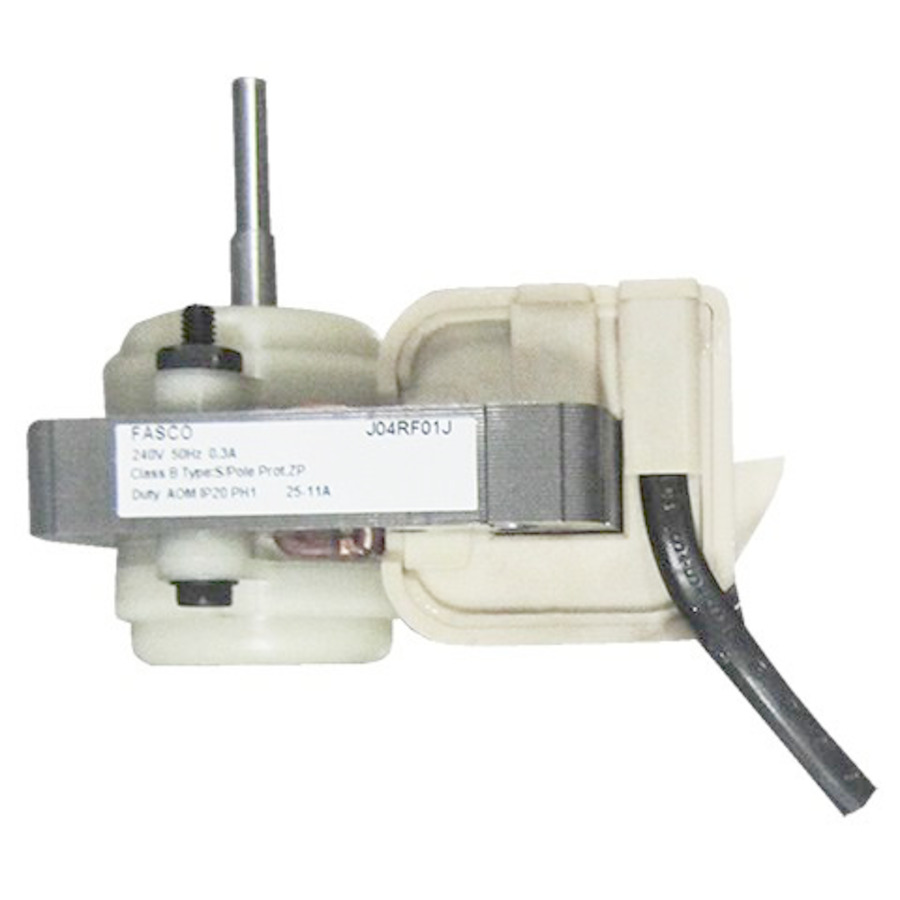

Fasco Fan Mtr Open J04RF01
Item Number:
F3093
| Power Supply : | 240/1/50 V/Ph/Hz |
|---|---|
| Product Group : | Motors - Open Frame |
General Information
| Number Of Poles : | 4 |
|---|---|
| Product Group : | Motors - Open Frame |
Cable
| Cable Length : | 470 mm |
|---|
Electrical
| Current : | 0.3 A |
|---|---|
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Shaft Diameter : | 4.70 mm |
|---|---|
| Shaft Length : | 10.5 mm |
Measurements
| Height : | 70.4 mm |
|---|---|
| Length : | 63.5 mm |
Temperature
| Operating Temperature Range : | -30 °C to 70 °C |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Brochures | 2.1 MB |
