Description

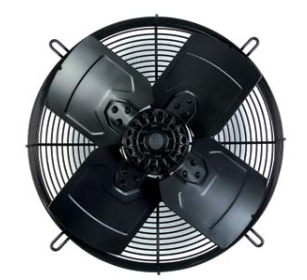

Hidria - Ext. Rotor Motor Fan Assembly 400mm 4 Pole 220-240V
Product number:
F3672
| Product Group : | Motors - Axial Motors < 500mm |
|---|
General
| Product Group : | Motors - Axial Motors < 500mm |
|---|
Air Volume/Air Flow
| Air Flow : | 3121 m³/h |
|---|
Electrical
| Capacitor : | 6.3 µF | Current : | 0.9 A |
|---|---|---|---|
| IP Class : | IP54 | Power Input : | 200 W |
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Diameter : | 400 mm | Fan Speed : | 1345 r/min |
|---|
Measurements
| Height : | 476 mm | Length : | 476 mm |
|---|---|---|---|
| Weight : | 6.8 kg | Width : | 206 mm |
Sound Power/Pressure
| Sound Power Level : | 72 dB(A) |
|---|
Temperature
| Operating Temperature Range : | -30 °C to 65 °C |
|---|
